UT 2,5-TG-P/P - Disconnect terminal block - 3046391

Product details

Technical data

Notes

General	Current and voltage are determined by the plug used.

Product properties

Product type	Disconnect terminal block
Area of application	Railway industry
	Machine building
	Plant engineering
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W

Connection data

Number of connections per level	2
Nominal cross section	2.5 mm²
Rated cross section AWG	12
Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	9 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with same cross section, solid	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Thermal continuous current I_th	20 A (with 4 mm² conductor cross section)
Maximum load current	20 A (with 4 mm² conductor cross section)
Nominal voltage	400 V (Current and voltage are determined by the plug used.)
Nominal cross section	2.5 mm²

Dimensions

Width	5.2 mm
End cover width	2.2 mm
Height	57.8 mm
Depth on NS 35/7,5	47.5 mm
Depth on NS 35/15	55 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Electrical tests

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical properties

Mechanical data
Open side panel	Yes

Mechanical tests

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	2.5 mm² / 0.7 kg
	4 mm² / 0.9 kg
Result	Test passed

Environmental and real-life conditions

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2018-05
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and regulations

Connection in acc. with standard	IEC 60947-7-1

Mounting

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3046391
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE01
Product key	BE1132
Catalog page	Page 151 (C-1-2019)
GTIN	4017918978488
Weight per piece (including packing)	10.49 g
Weight per piece (excluding packing)	9.469 g
Customs tariff number	85369010
Country of origin	CN

Classifications

Approvals

Environmental product compliance

ECLASS-11.0	27141126
ECLASS-12.0	27141126
ECLASS-13.0	27250108

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	a8458b6a-7600-4a88-8416-4492ba96d065

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UT 2,5-TG-P/P - Disconnect terminal block

3046391

Product details

ECLASS

ETIM

UNSPSC

CSA

cULus Recognized

CSA

cULus Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UT 2,5-TG-P/P - Disconnect terminal block 3046391

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBS 50-5 - Plug-in bridge 3038930

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB UT 10-(2,5/4) - Reducing bridge 3047060

RB UT 35-(2,5/4) - Reducing bridge 3047277

RB UT 16-(2,5/4) - Reducing bridge 3047073

RB UT 6-(2,5/4) - Reducing bridge 3047251

D-UT 2,5/4-TWIN - End cover 3047141

ATP-UT-TWIN - Partition plate 3047183

P-CO XL-UT - Component connector 3036799

P-CO 2-5 R47K - Component connector 3032447

P-DI - Isolating plug 3036783

P-DI GY - Isolating plug 3047390

P-DI GN - Isolating plug 1071062

LPO 2,5/E - Pick-off plug 3270516

LPO 2,5 - Pick-off plug 3270517

LPS-5/E - Service connector 3270520

LPS-5 - Service connector 3270521

P-FU 5X20-5 - Fuse plug 3209235

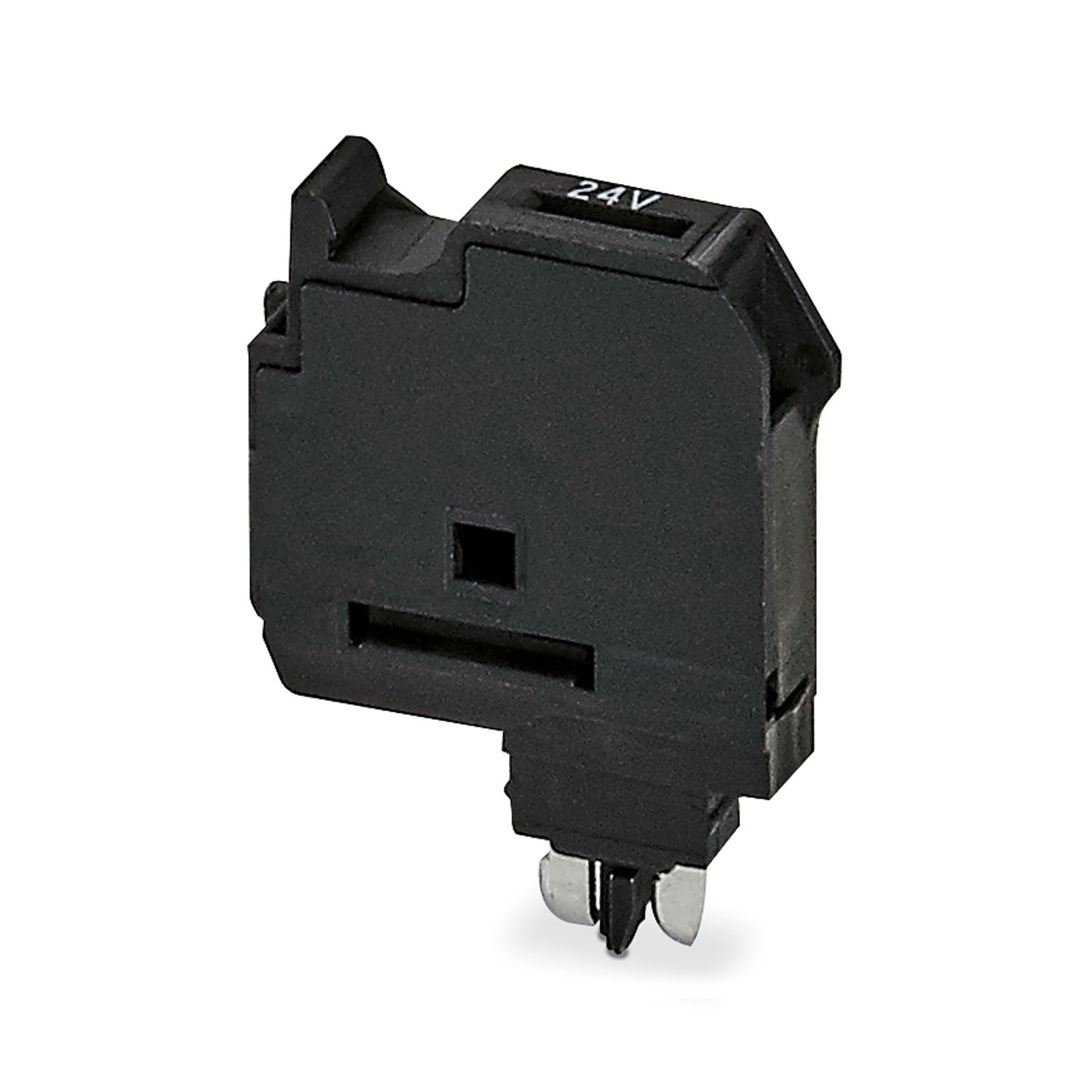

P-FU 5X20 LED 24-5 - Fuse plug 3209248
