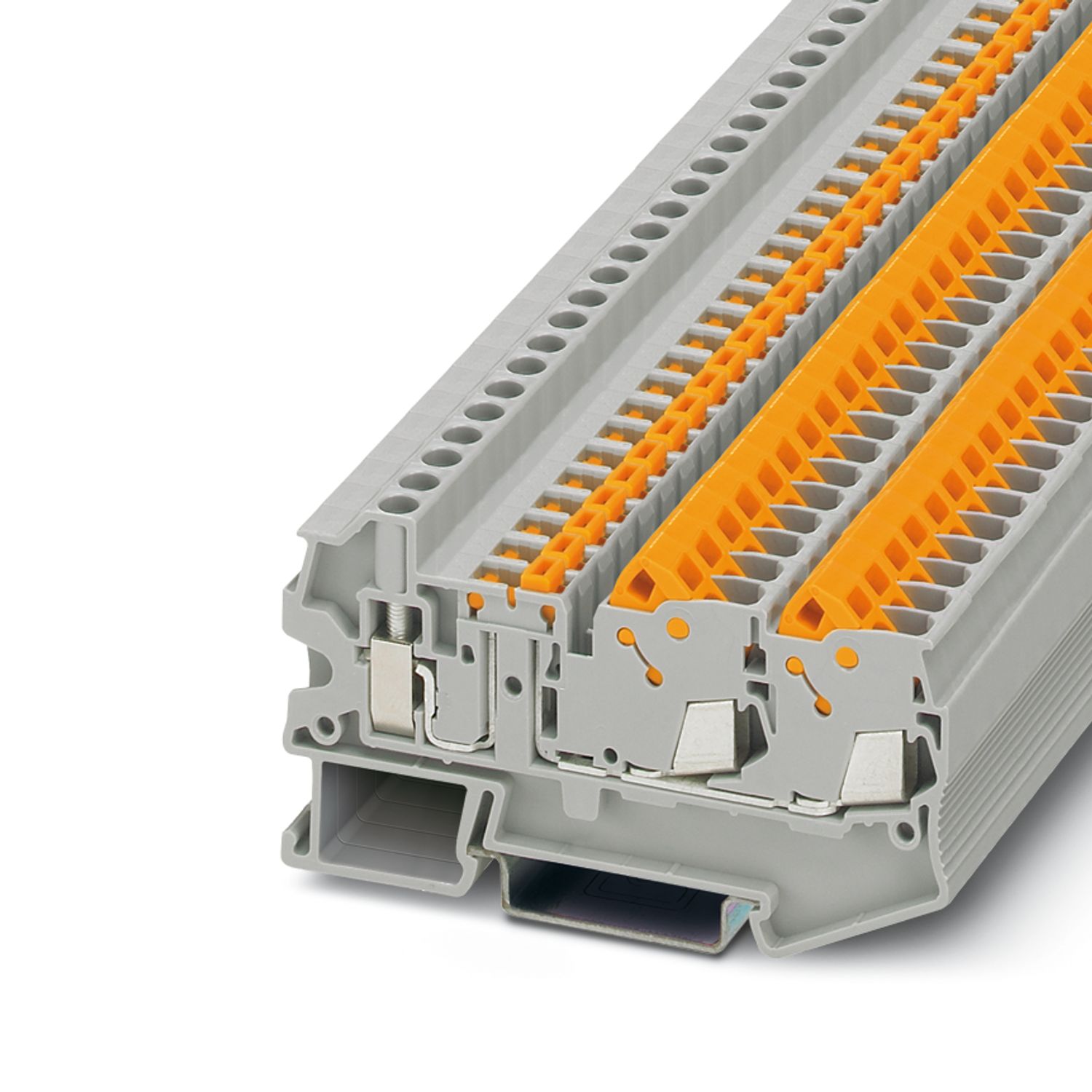

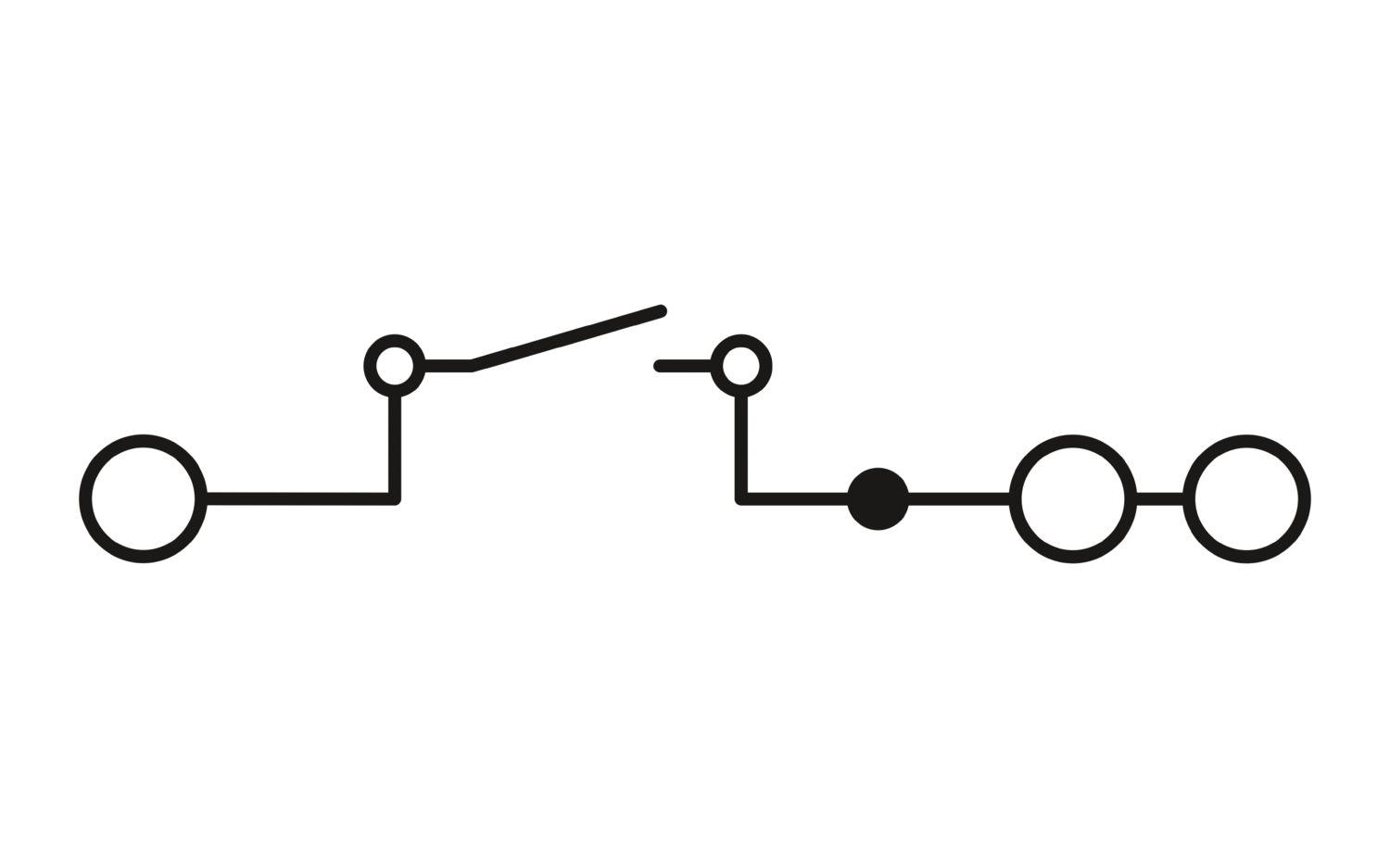

QTCU 2,5-TWIN-MT - Knife-disconnect terminal block - 3050304

Product type	Disconnect terminal block
Number of connections	3
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	3
Frequency of connections with the same cross section	100
Nominal cross section	2.5 mm²
Rated cross section AWG	14
Material wire insulation	PVC / PE
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 2.5 mm²
Cross section AWG	20 ... 14 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	20 ... 14 (converted acc. to IEC)
Nominal current	20 A
Maximum load current	20 A (with a 2.5 mm² conductor cross section)
Nominal voltage	400 V
Nominal cross section	2.5 mm²
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	9 mm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.14 mm² ... 6 mm²
Cross section AWG	26 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 4 mm²
2 conductors with same cross section, solid	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²
Nominal current	20 A
Maximum load current	20 A (with 2.5 mm² conductor connection cross section)
Nominal voltage	400 V
Nominal cross section	2.5 mm²

Width	6.2 mm
End cover width	2.2 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	6 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	4 mm² / 0.9 kg
Conductor cross section/weight		6 mm² / 1.4 kg
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.5 mm² / 0.3 kg
Conductor cross section/weight		2.5 mm² / 0.7 kg
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

QTCU 2,5-TWIN-MT - Knife-disconnect terminal block

3050304

Product details

ETIM

UNSPSC

Compatible products

Your advantages

Item number	3050304
Packing unit	50 pc
Minimum order quantity	50 pc
Note	Made to order (non-returnable)
Sales key	BE03
Product key	BE3119
Catalog page	Page 265 (C-1-2019)
GTIN	4046356837064
Weight per piece (including packing)	15.35 g
Weight per piece (excluding packing)	14 g
Customs tariff number	85369010
Country of origin	CN

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	9c8c4e6b-6b89-42e6-8754-be793f63aac4

Mechanical data
Open side panel	Yes

Mounting type	NS 35/7,5
Mounting type		NS 35/15

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

QTCU 2,5-TWIN-MT - Knife-disconnect terminal block 3050304

Product details

ETIM

UNSPSC

Compatible products

FBS 2-6 - Plug-in bridge 3030336

FBS 3-6 - Plug-in bridge 3030242

FBS 4-6 - Plug-in bridge 3030255

FBS 5-6 - Plug-in bridge 3030349

FBS 6-6 - Plug-in bridge 1008238

FBS 10-6 - Plug-in bridge 3030271

FBS 20-6 - Plug-in bridge 3030365

FBS 50-6 - Plug-in bridge 3032224

FBSR 2-6 - Plug-in bridge 3033715

FBSR 3-6 - Plug-in bridge 3001594

FBSR 4-6 - Plug-in bridge 3001595

FBSR 5-6 - Plug-in bridge 3001596

FBSR 10-6 - Plug-in bridge 3033716

FBS 2-6 BU - Plug-in bridge 3036932

FBS 3-6 BU - Plug-in bridge 3036945

FBS 4-6 BU - Plug-in bridge 3036958

FBS 5-6 BU - Plug-in bridge 3036961

FBS 10-6 BU - Plug-in bridge 3032198

FBS 20-6 BU - Plug-in bridge 3032208

FBS 50-6 BU - Plug-in bridge 3032211

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

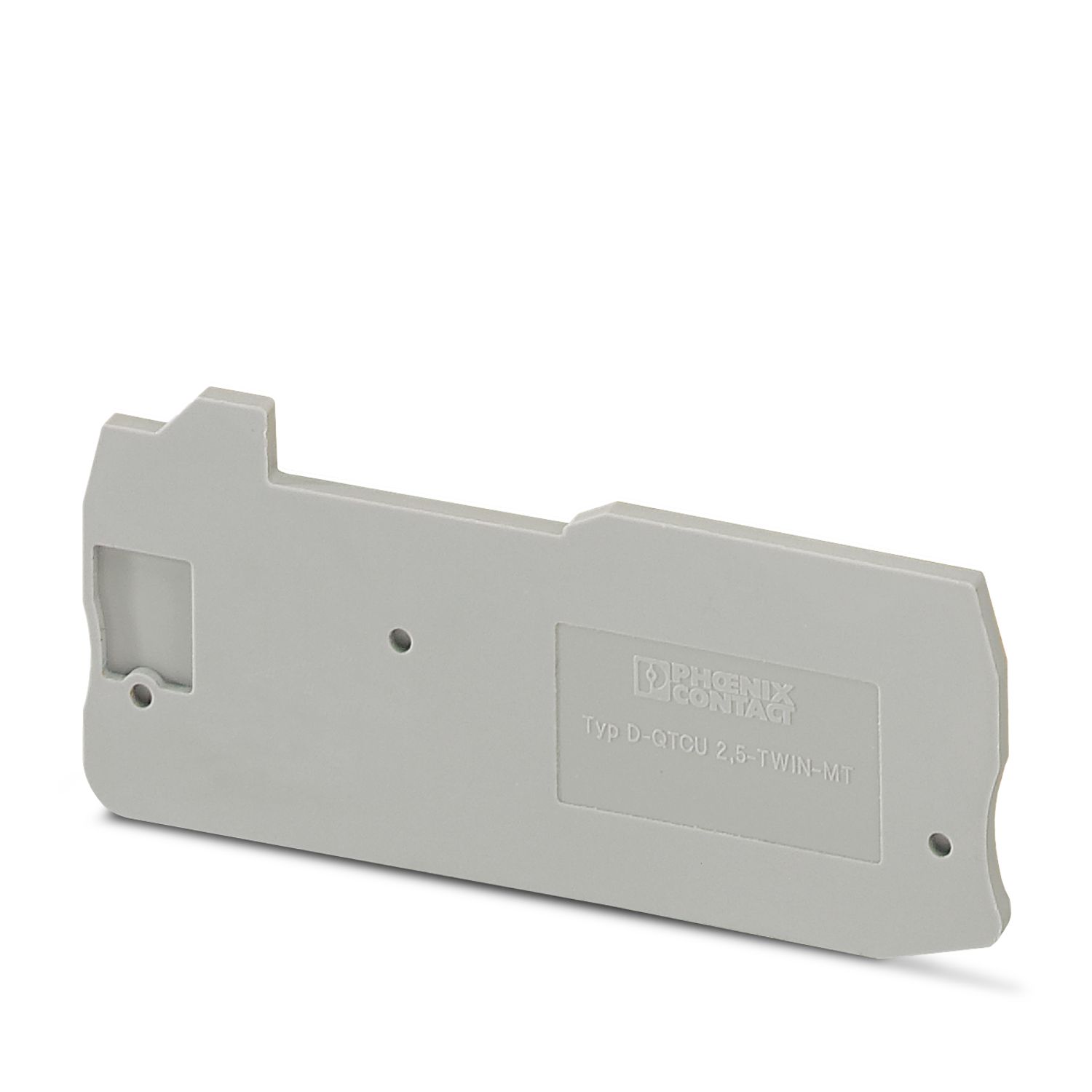

D-QTCU 2,5-TWIN-MT - End cover 3050511
