CC-AT60-S20-R16/18-AU
-
Crimp contact
1521073
Crimp contact, series: ATM04, Pin, turned, contact diameter: 1 mm, rated current: 7.5 A, connection cross section: 0.75 mm2 ... 1.5 mm2, AWG 18...16 , contact material: Cu alloy
Product details
| General | AT60-010-2031 |
| Assembly note | Crimp with 8-indent crimp tool qualified to MIL-DTL-22520/1, e.g., Daniels AF8-TH1A or Rennsteig 8758 0000 6 (tool) /8758 1102 0 (Multi pin locator) |
| Trade restriction | |
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
| Product type | Crimp contact |
| Series | ATM04 |
| Contact material type | turned |
| Connection technology | |
| Contact connection type | Pin |
| Connection method | Crimp connection |
| Conductor connection | |
| Stripping length | 5 mm |
| Connection cross section | 0.75 mm² ... 1.5 mm² |
| Connection cross section AWG | 18 ... 16 |
| Material Contact | Cu alloy |
| Material Contact surface | Au |

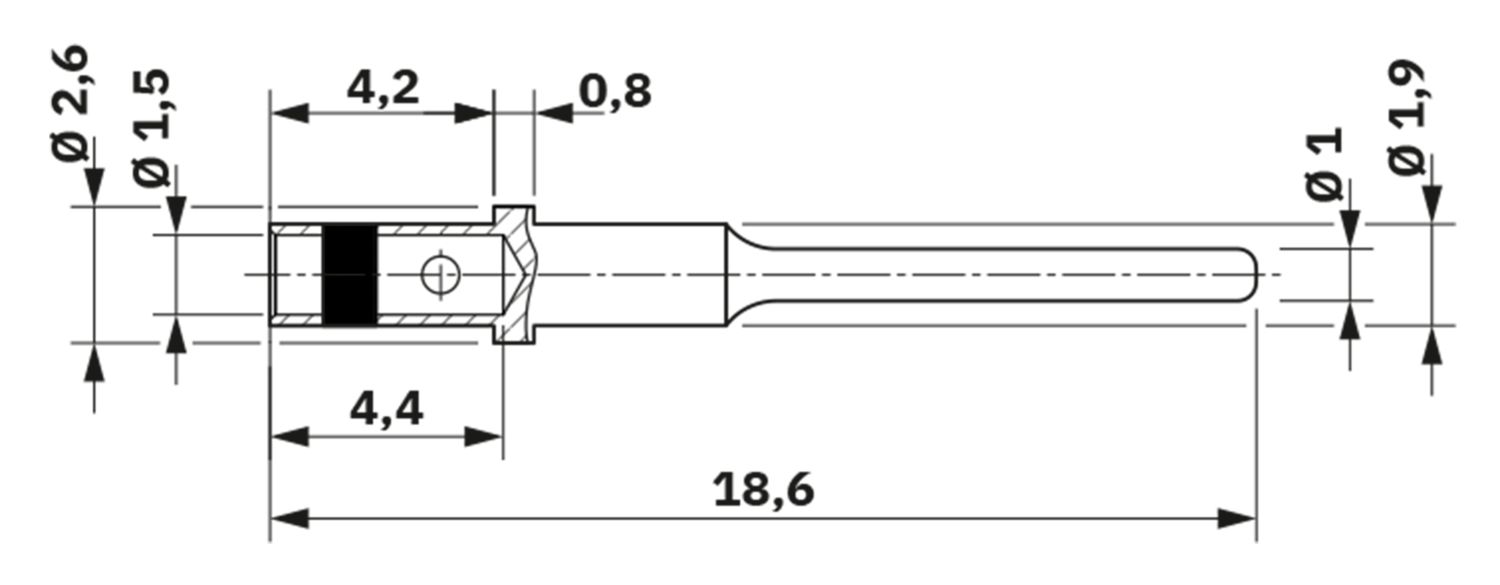

| Dimensional drawing |
|
| Diameter (Contact diameter) | 1 mm |
| Rated current | 7.5 A (MAX) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C ... 125 °C |
