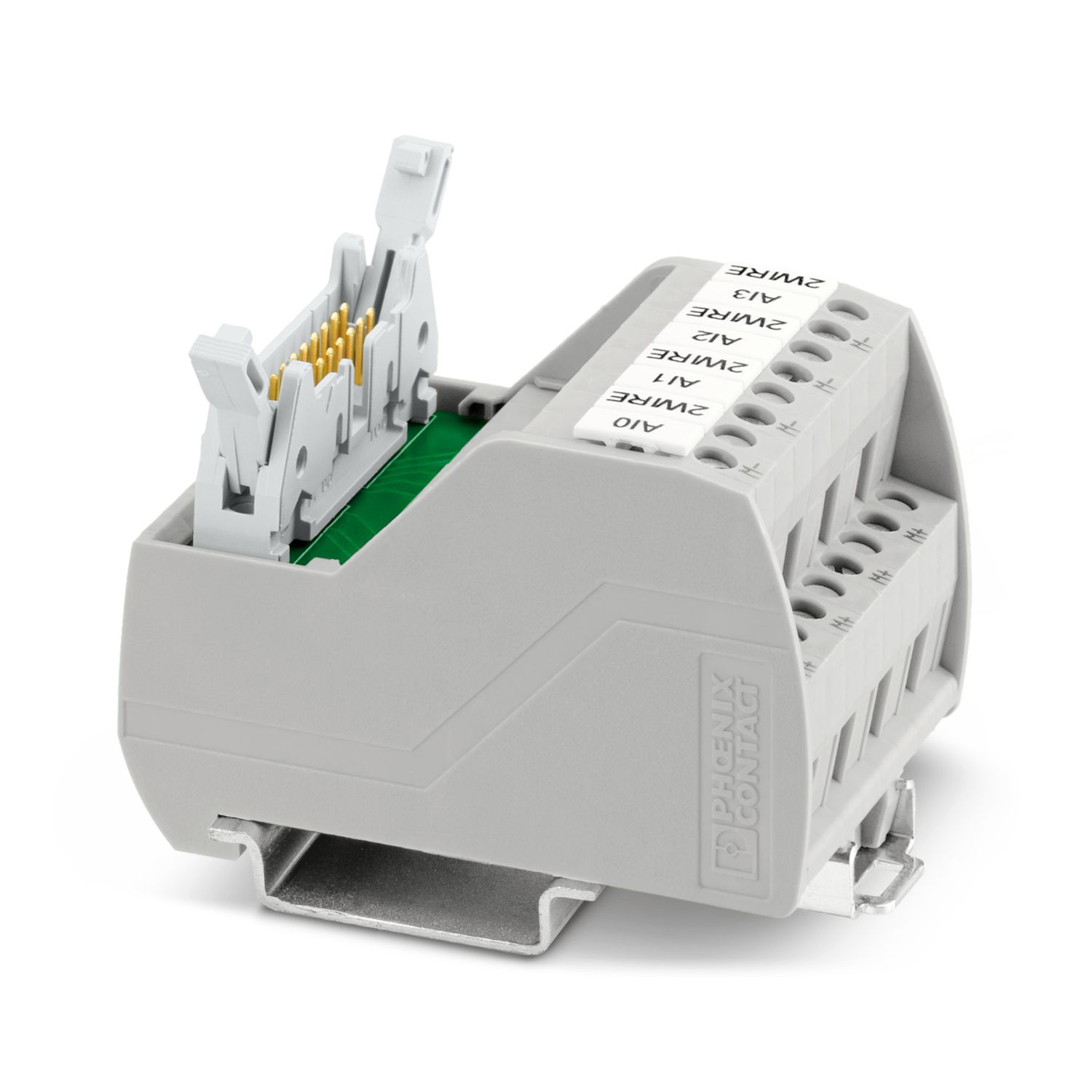

VIP-2/SC/FLK16/ISP 4AI 2DMU - Passive module

2903869

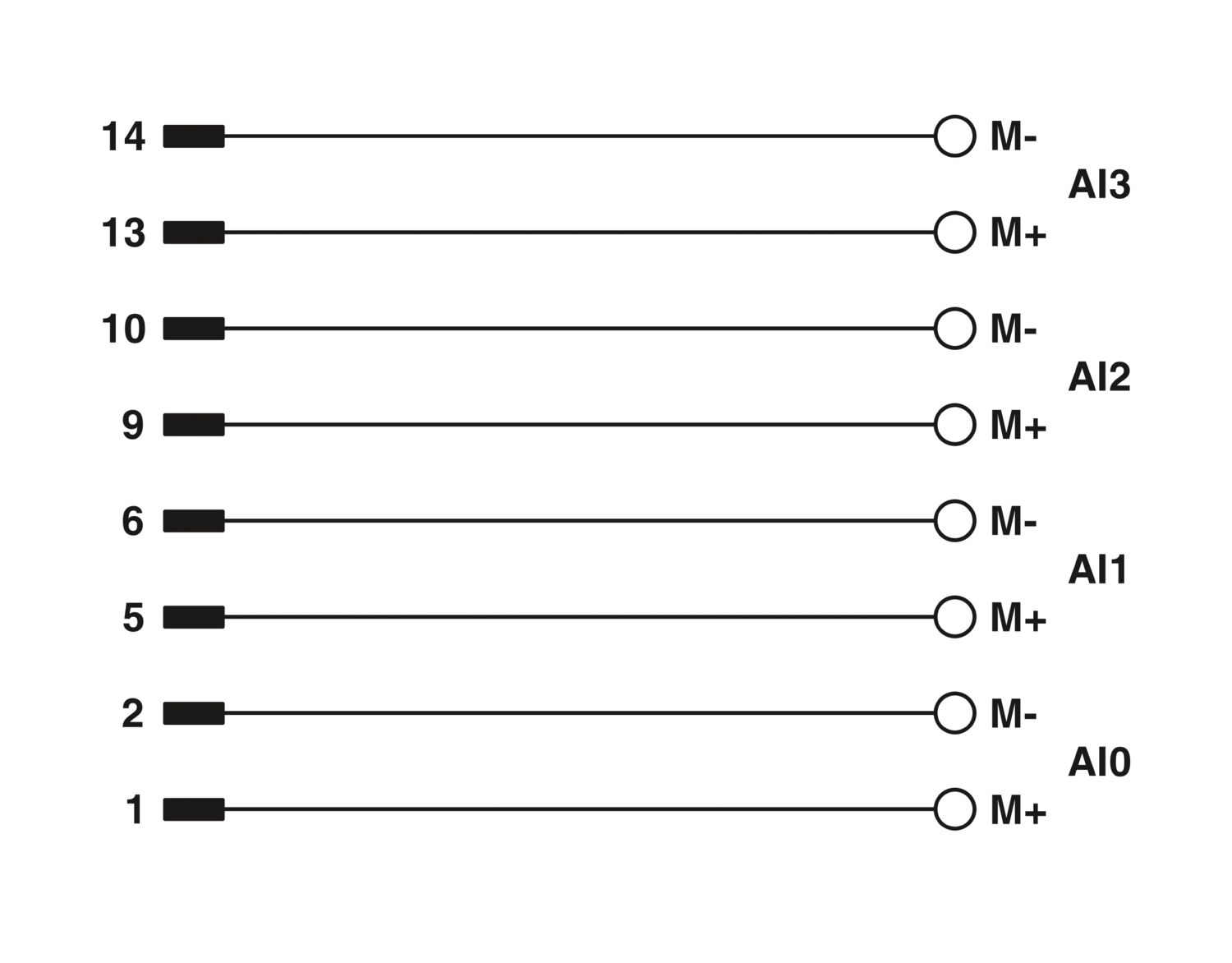

VARIOFACE Professional (VIP) module for Siemens ET200 ISP controllers. Interface to HART analog input, 4 channel. 125 V AC/DC, 1 A rating, 2 wire.

Product details

Product type	Interface module
Product family	VARIOFACE Professional
Number of positions	16
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Nominal voltage U_N	60 V AC/DC
Max. current carrying capacity per branch	1 A
Supported controller SIEMENS ET200 ISP
Suitable I/O card	6ES7134-7TD00-0AB0

Field level
Connection in acc. with standard	IEC / EN
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M 3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	16
Pitch	2.54 mm

Status display	no
Status display present	no

Item dimensions
Width	45 mm
Height	65.5 mm
Depth	56 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	< 2000 m
Permissible humidity (operation)	90 %
Permissible humidity (storage/transport)	90 %

Mounting type	DIN rail mounting

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2903869
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CK02
Product key	DK2B11
GTIN	4046356827546
Weight per piece (including packing)	333.33 g
Weight per piece (excluding packing)	333.33 g
Customs tariff number	85366990
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	1 A	30 - 12

Environmental product compliance

Compatible products

Accessories

Your advantages

Interface from field devices to HART® analog input 6ES7134-7TD00-0AB0 card

I/O marking for field wiring clearly identified when device is mounted

Compact design reduces space requirements in the control cabinet

A single, metal mounting foot allows easy installation and removal to the mounting rail

Integrated ZB channel allows flexible marking of device

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
