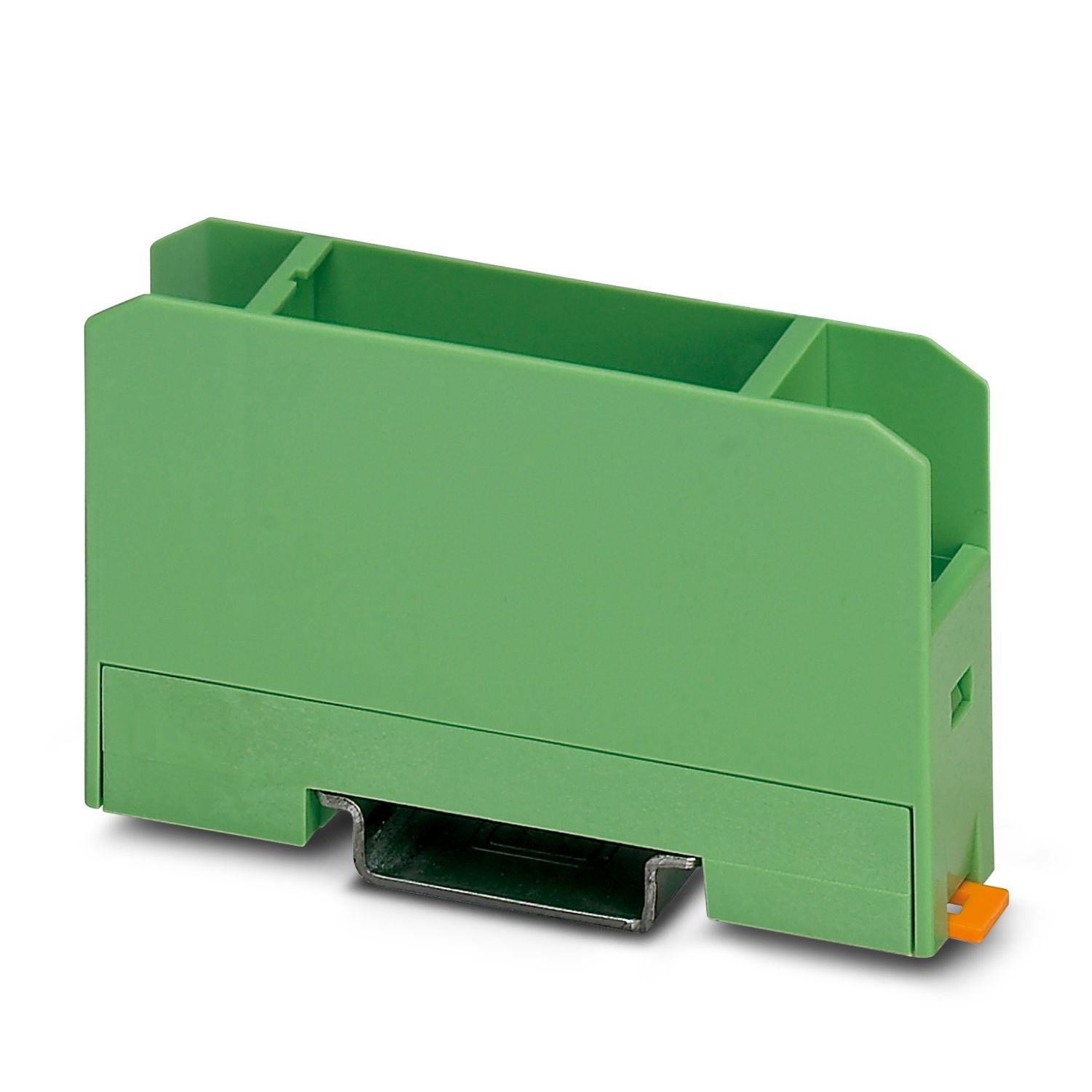

EMG 17-LG/O
-
Electronics housing
2942409
Electronic housing, with universal foot, for p.c.b. insertion, without screw connection terminal blocks and cover, pitch 5, with open terminal space
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Complete housing |
| Housing type | Component housing |
| Housing series | EMG |
| Product family | EMG |
| Type | Lower part of housing, removable cover optional |
| Set comprises | 2942988 EMG 17-LG/SET |
| Type | Lower and upper part, with universal foot, with open clamping space |
| Dimensional drawing |
|
| Width | 17.5 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 47.5 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Surface characteristics | untreated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mounting type | DIN rail mounting |
