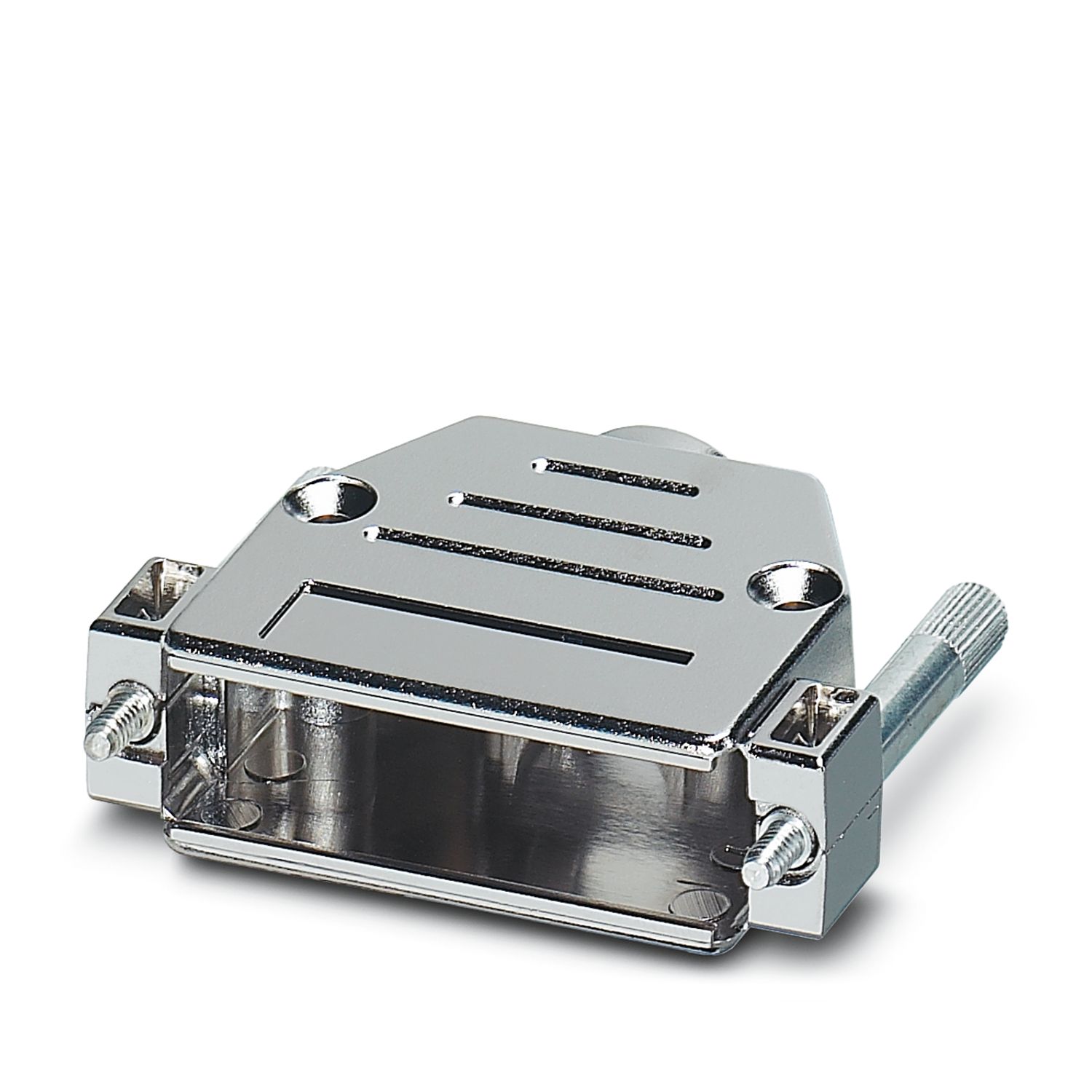

VS-25-T-20-1-S-S
-
D-SUB sleeve housings
1655690
D-SUB sleeve housings, design: D-SUB 25, degree of protection: IP20, material: ABS, cable outlet: straight, housing size: 3, color: Bare metallic
Product details
| Product type | Sleeve housings |
| Type | D-SUB 25 |
| No. of cable outlets | 1 |
| Cable outlet | straight |

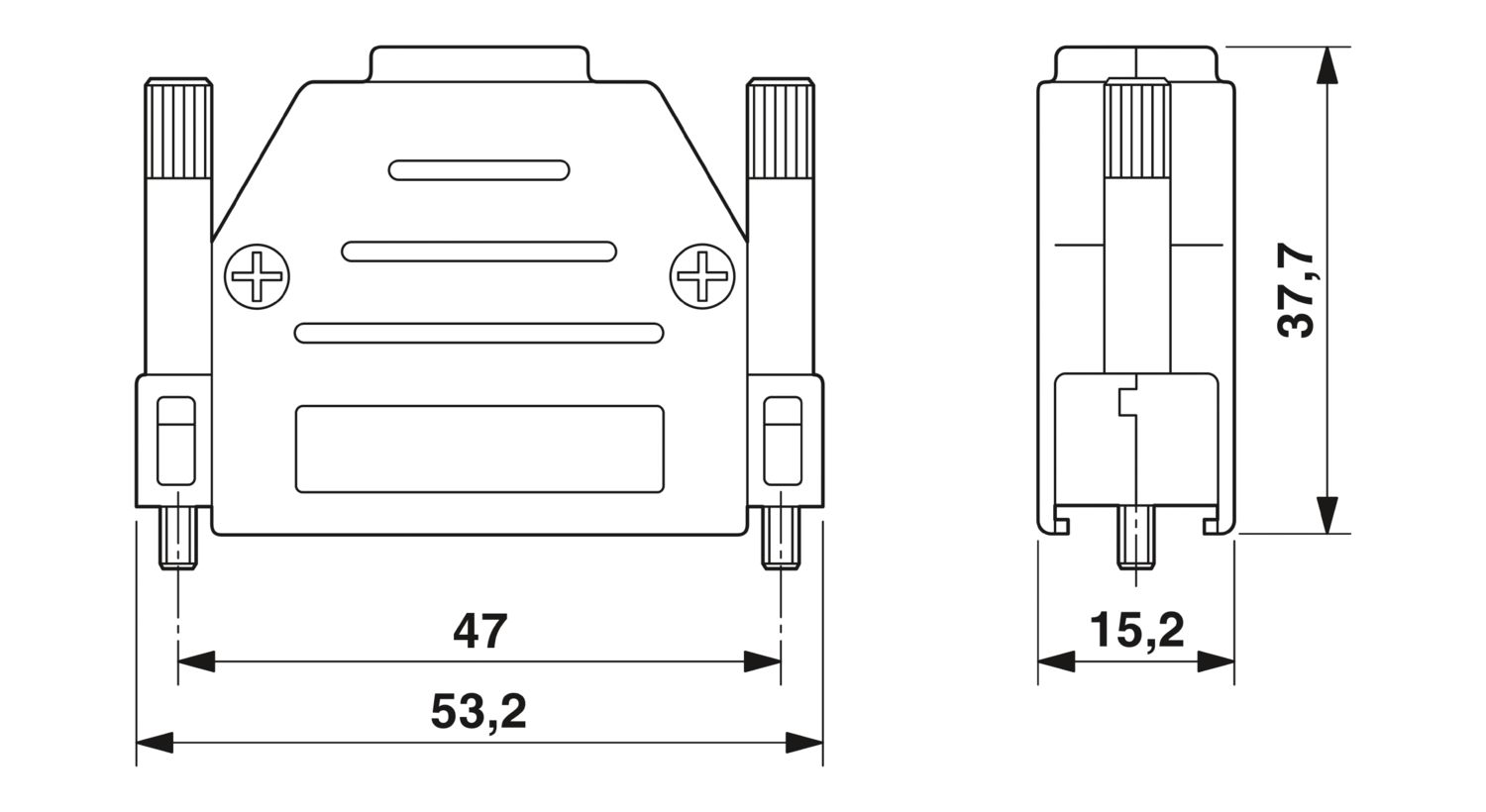

| Dimensional drawing |
|
| Width | 53.2 mm |
| Height | 15.2 mm |
| Length | 37.7 mm |
| Color | Bare metallic |
| Flammability rating according to UL 94 | V0 |
| Housing material | ABS |
| Housing surface material | metal-plated |
| External cable diameter | 4 mm ... 8.5 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 90 °C |
