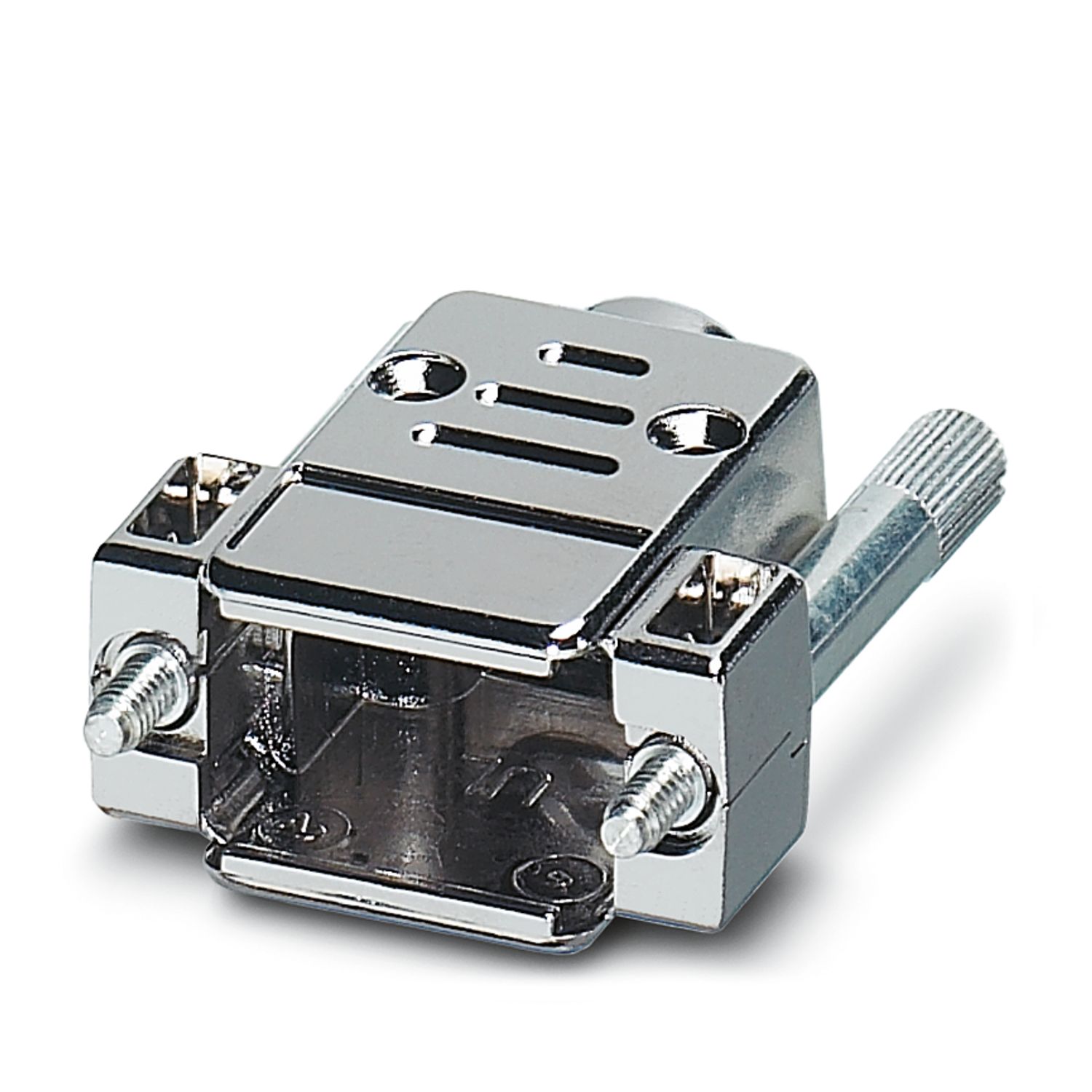

VS-09-T-20-1-S-S
-
D-SUB sleeve housings
1655658
D-SUB sleeve housings, design: D-SUB 9, degree of protection: IP20, material: ABS, cable outlet: straight, housing size: 1, color: Bare metallic
Product details
| Product type | Sleeve housings |
| Type | D-SUB 9 |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Dimensional drawing |
|
| Width | 31.2 mm |
| Height | 38 mm |
| Length | 15.2 mm |
| Color | Bare metallic |
| Flammability rating according to UL 94 | V0 |
| Housing material | ABS |
| Housing surface material | Ni |
| External cable diameter | 4 mm ... 8.5 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
| Mounting type | Screw locking mechanism |
