TC-2KS40-AO8-EX-PR-RS - Module carrier

2905204

Termination Carrier for redundantly connecting 8 MACX Analog Ex i output signal conditioners to analog output cards of the Yokogawa ProSafe-RS controller, via two KS40 connectors, 40-pos. Suitable for Yokogawa SAI533 card.

This product needs further products for operation. Mandatory accessories

Product details

Set consists of

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product type	Module carrier
Insulation characteristics: Air clearances and creepage distances
Insulation	Basic insulation
Overvoltage category	II
Pollution degree	2

Max. permissible current	1 A (Signal/channel)
Nominal voltage U_N	< 30 V DC (Per signal/channel)
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card	SAI533
Supply
Designation	Feed-in module
Note	Power supply via 2904673 TC-MACX-MCR-PTB power supply and error signaling module.
Fuse	2x 2.5 A on PCB, slow-blow (replaceable)
Input voltage	24 V DC
Input voltage range	19.2 V DC ... 30 V DC
Input current	≤ 2 A
Redundant supply	yes, decoupled from diodes
Polarization and surge protection	Yes
Output name	Switching output
Contact switching type	1 N/C contact (alarm = open)
Maximum switching voltage	50 V DC (0.3 A)
	30 V DC (2 A)
	33 V AC (2 A)

Power supply
Connection method	Screw connection
Stripping length	7 mm
Number of connections	1
Number of positions	6
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller level
Connection method	Yokogawa, KS compatible
Number of connections	2
Number of positions	40

Status display	1 x red LED (error)
	2x green LEDs (PWR1 and PWR2)

Width	147 mm
Height	170 mm
Depth	159.5 mm

Flammability rating according to UL 94	V0

Ambient conditions
Degree of protection	IP00
Ambient temperature (operation)	-20 °C ... 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6

UL, USA/Canada
Identification	UL 61010 Listed
	Class I, Div. 2, Groups A, B, C, D T4
	Class I, Zone 2, Group IIC

Air clearances and creepage distances
Standards/regulations	DIN EN 50178

Mounting type	DIN rail mounting
Assembly note	No end clamp
Mounting position	vertical, horizontal

Commercial data

Item number	2905204
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DK2
Product key	DK271C
Catalog page	Page 525 (C-5-2017)
GTIN	4046356950060
Weight per piece (including packing)	99.99 g
Weight per piece (excluding packing)	99.99 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	50 V	1 A

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

Mechanically decoupled, passive PCB

Redundant system connection, 40-pos. (KS/AKB-compatible)

Simple or redundant supply (decoupled from diode, protected against polarity reversal) and monitoring function implemented via separate DIN rail module

Robust aluminum profile with integrated DIN rail

Side parts with integrated end clamps

Cable sets for signal connection are supplied as standard and do not have to be ordered separately

PHOENIX CONTACT s.r.o.

Námestie Mateja Korvína 1, 811 07 Bratislava. Zapísaná v Obchodnom registri Okresného súdu Bratislava III, vložka číslo 48994/B.

Ask a Question +421 2 3210 1470 obchod.sk@phoenixcontact.com

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	38ac2c51-967b-4b4a-9fbc-c2443ad0465f

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-2KS40-AO8-EX-PR-RS - Module carrier

2905204

Product details

ECLASS

ETIM

UNSPSC

UL Listed

cUL Listed

cUL Listed

UL Listed

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TC-2KS40-AO8-EX-PR-RS - Module carrier 2905204

Product details

TC-C-MAX2-SC-31320000 - Cable set 2902425

TC-C-PTB3-SC-SET1 - Cable set 2905216

ME 17,5 TBUS 1,5/ 5-ST-3,81 GN - DIN rail bus connector 2709561

ME 6,2 TBUS-2 1,5/5-ST-3,81 GN - DIN rail bus connector 2869728

ECLASS

ETIM

UNSPSC

Compatible products

TC-MACX-MCR-PTB - Power and error message module 2904673

MACX MCR-EX-SL-IDSI-I - Output signal conditioner 2865405

MACX MCR-EX-SL-IDSI-I-SP - Output signal conditioner 2924032

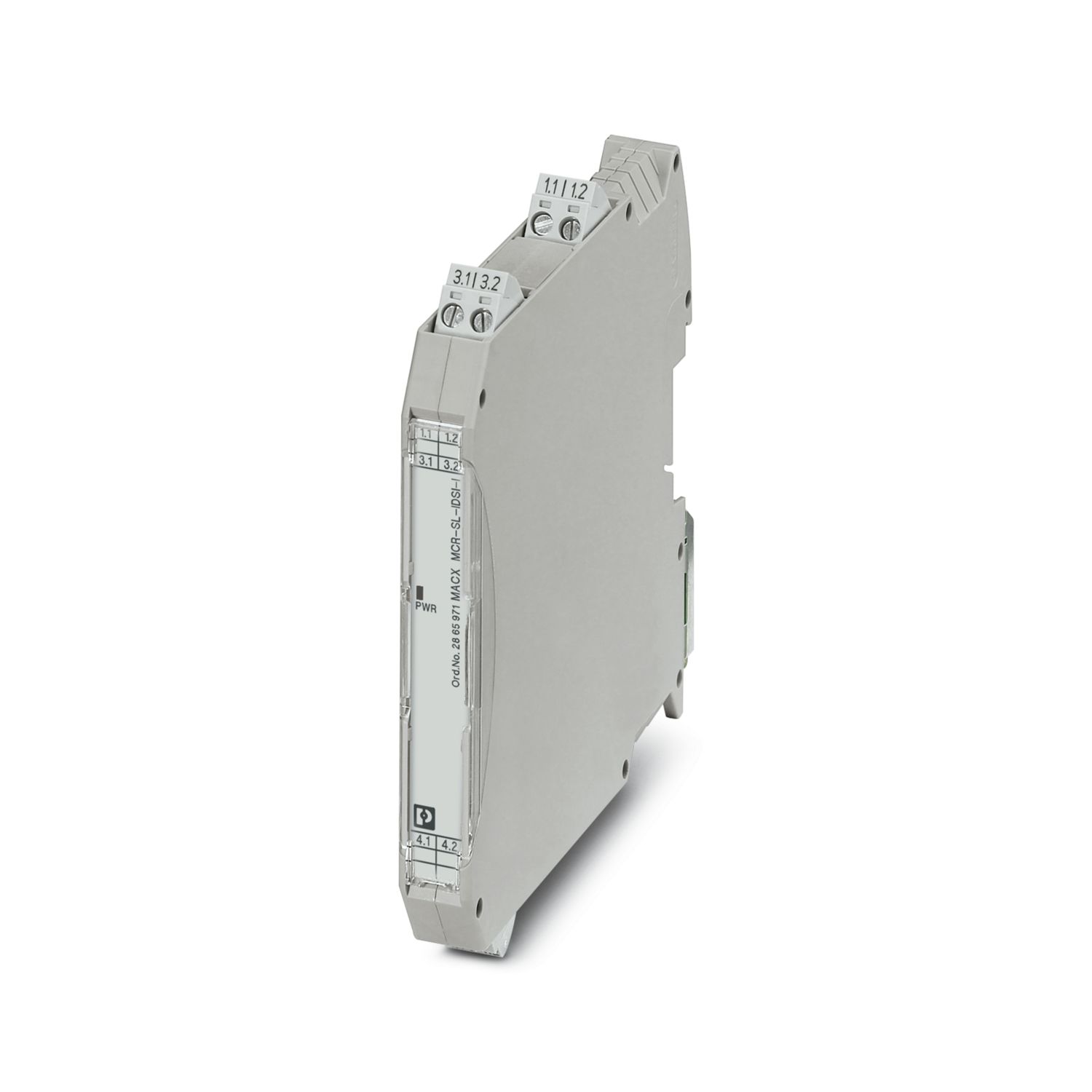

MACX MCR-SL-IDSI-I - Output signal conditioner 2865971
