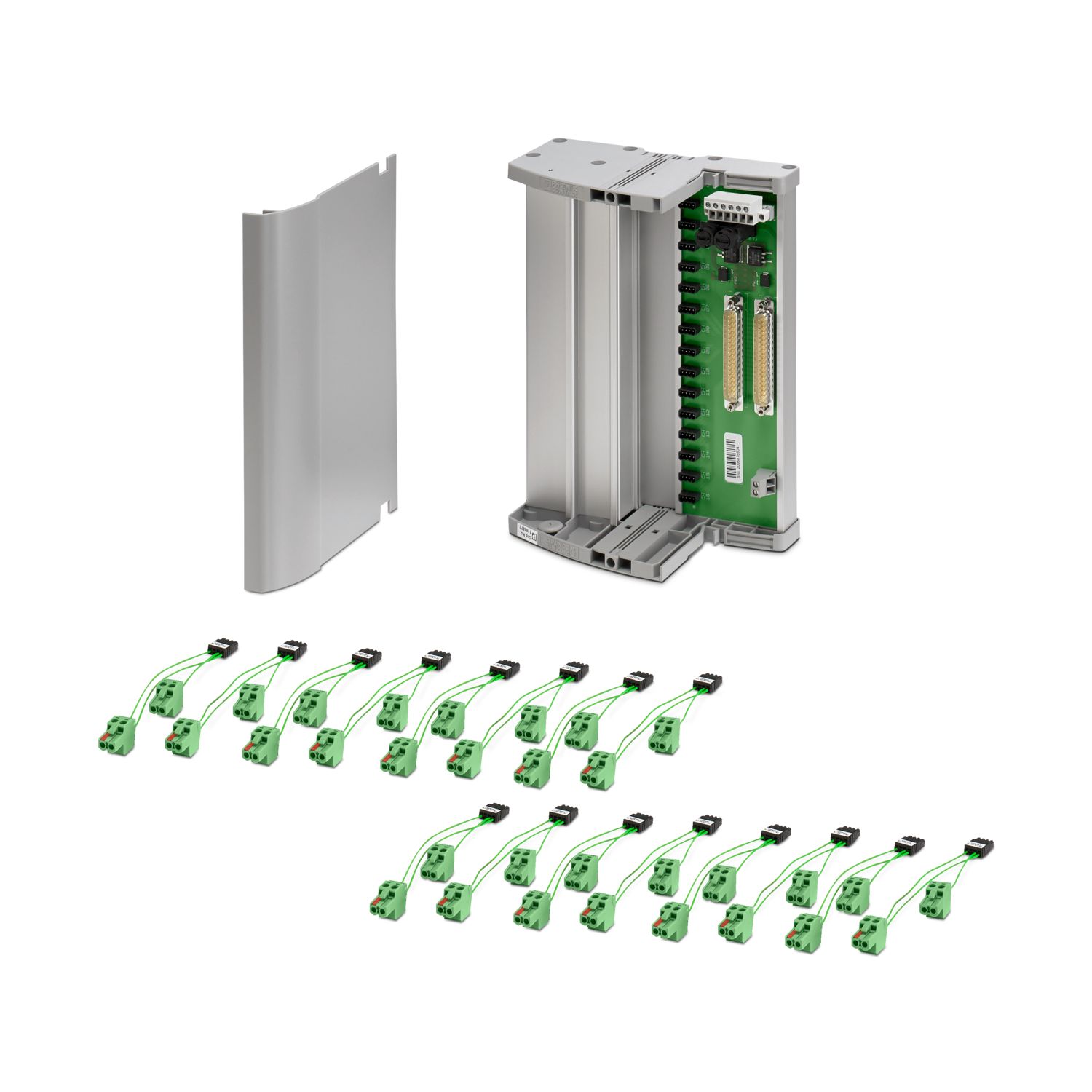

TC-2D37SUB-DO16-PC40-ER-UNI - Module carrier

1185872

Universal Termination Carrier for connecting 16 PSR SIL coupling relays to digital output cards, via D-SUB connector, 37-pos. (1:1 connection)

This product needs further products for operation. Mandatory accessories

Product details

Technical data

Notes

General	No additional touch protection is required when using a SELV/PELV voltage (≤30 V AC or 60 V DC).
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product properties

Product type	Module carrier
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation

Electrical properties

Max. permissible current	± 1 A (per signal path)
Nominal voltage U_N	< 50 V DC (per signal/channel (SELV/PELV))
Supply
Fuse	2x 2.5 A
Input voltage range	19.2 V DC ... 30 V DC
Input current	≤ 2 A

Connection data

Voltage supply X20
Connection method	Screw connection
Stripping length	7 mm
Number of connections	1
Number of positions	6
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12
Controller X1A/X1B
Connection method	D-SUB pin strip
Number of connections	1
Number of positions	37
CH1 ... CH16 cable sets
Connection method	PTSM connector
Number of positions	4

Dimensions

Width	226 mm
Height	170 mm
Depth	160 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-20 °C ... 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m (Above sea level)
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6

Approvals

UL, USA/Canada
Identification	UL 61010 Listed
	Class I, Div. 2, Groups A, B, C, D T4
	Class I, Zone 2, Group IIC

Standards and regulations

Air clearances and creepage distances
Standards/regulations	DIN EN 60664-1

Commercial data

Item number	1185872
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DK2
Product key	DK271W
GTIN	4063151226916
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

PHOENIX CONTACT s.r.o.

Námestie Mateja Korvína 1, 811 07 Bratislava. Zapísaná v Obchodnom registri Okresného súdu Bratislava III, vložka číslo 48994/B.

Ask a Question +421 2 3210 1470 obchod.sk@phoenixcontact.com

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	76424cbe-8c48-4a27-bb34-7e89e8ba4f3e
