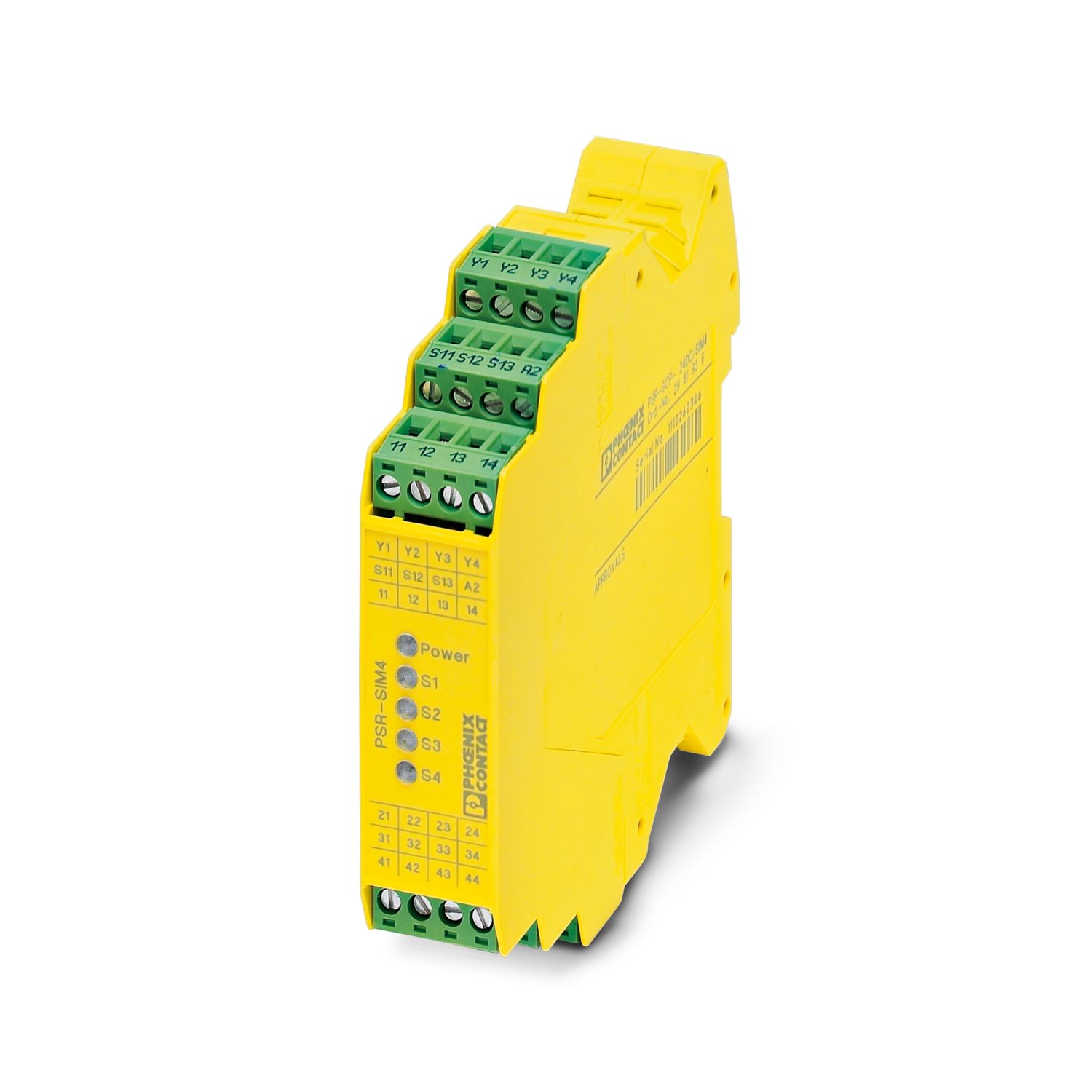

PSR-SPP- 24DC/SIM4 - Safety relays

2981949

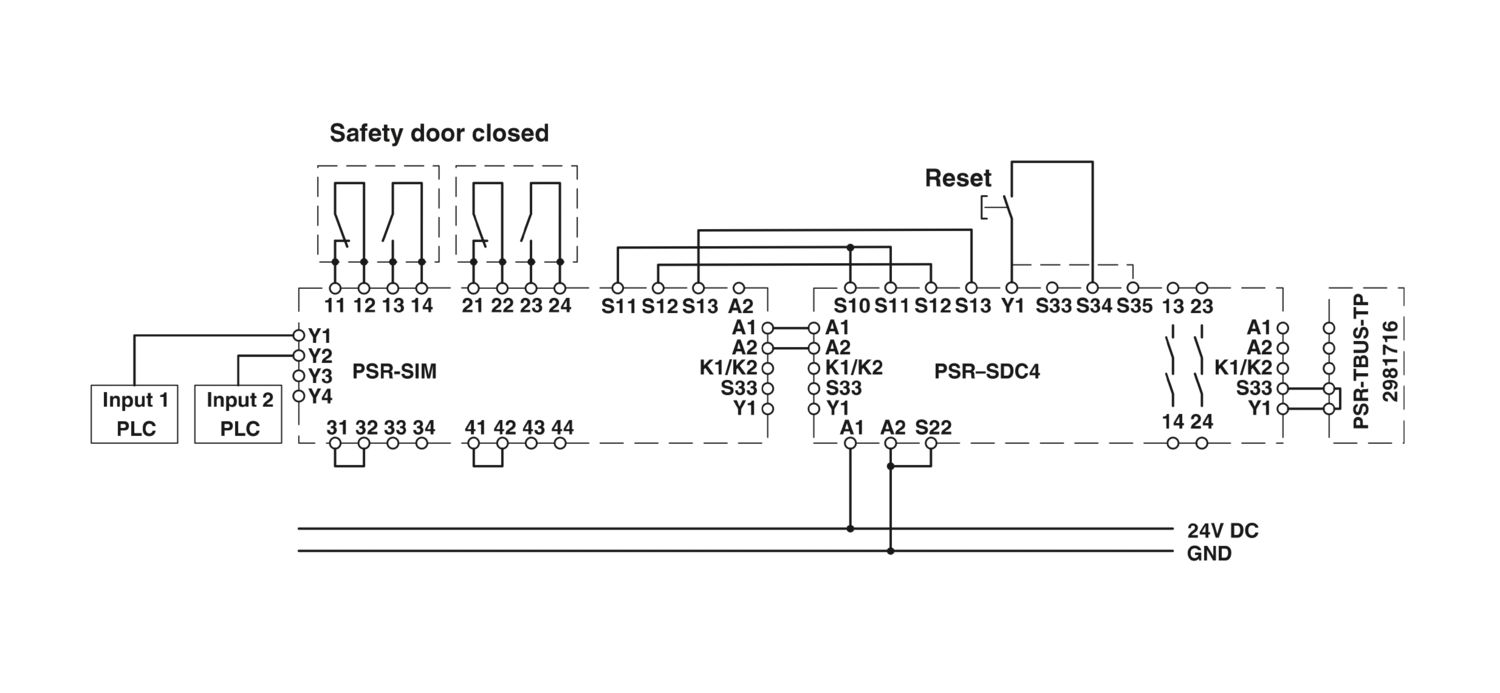

Interface module for connecting several safety sensors or switches with N/C / N/O contacts to the PSR-SDC4 safety relay, plug-in Push-in terminal blocks

Note on application
Note on application	Only for industrial use

Product type	Interface module
Product family	PSRclassic
Insulation characteristics: Air clearances and creepage distances between the power circuits
Overvoltage category	III
Degree of pollution	2

Max. permissible current	100 mA (per signal output)
Max. permissible total current	100 mA (alarm outputs)
Nominal operating mode	100% operating factor
Air clearances and creepage distances between the power circuits
Rated insulation voltage	50 V DC
Rated surge voltage/insulation	0.8 kV

Nominal input voltage U_N	24 V DC (from PSR)
Input voltage range in reference to U_N	0.85 ... 1.1
Nominal input voltage U_N	24 V DC (from PSR)

Connection technology
pluggable	yes
Conductor connection
Connection method	Push-in connection
Conductor cross section rigid	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm² (only together with CRIMPFOX 6)
Conductor cross-section AWG	24 ... 16
Stripping length	8 mm

Status display	LED (green)
Status display present	yes

Width	22.5 mm
Height	117 mm
Depth	106 mm

Housing material	PA

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-20 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Maximum altitude	max. 2000 m (Above sea level)

Air clearances and creepage distances between the power circuits
Standards/regulations	DIN EN 50178

Assembly note	in rows with zero spacing
Mounting position	any

Item number	2981949
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNA
Product key	DNA221
Catalog page	Page 233 (C-6-2019)
GTIN	4046356325998
Weight per piece (including packing)	175 g
Weight per piece (excluding packing)	99.99 g
Customs tariff number	85364190
Country of origin	DE

Compatible products

Accessories

Your advantages

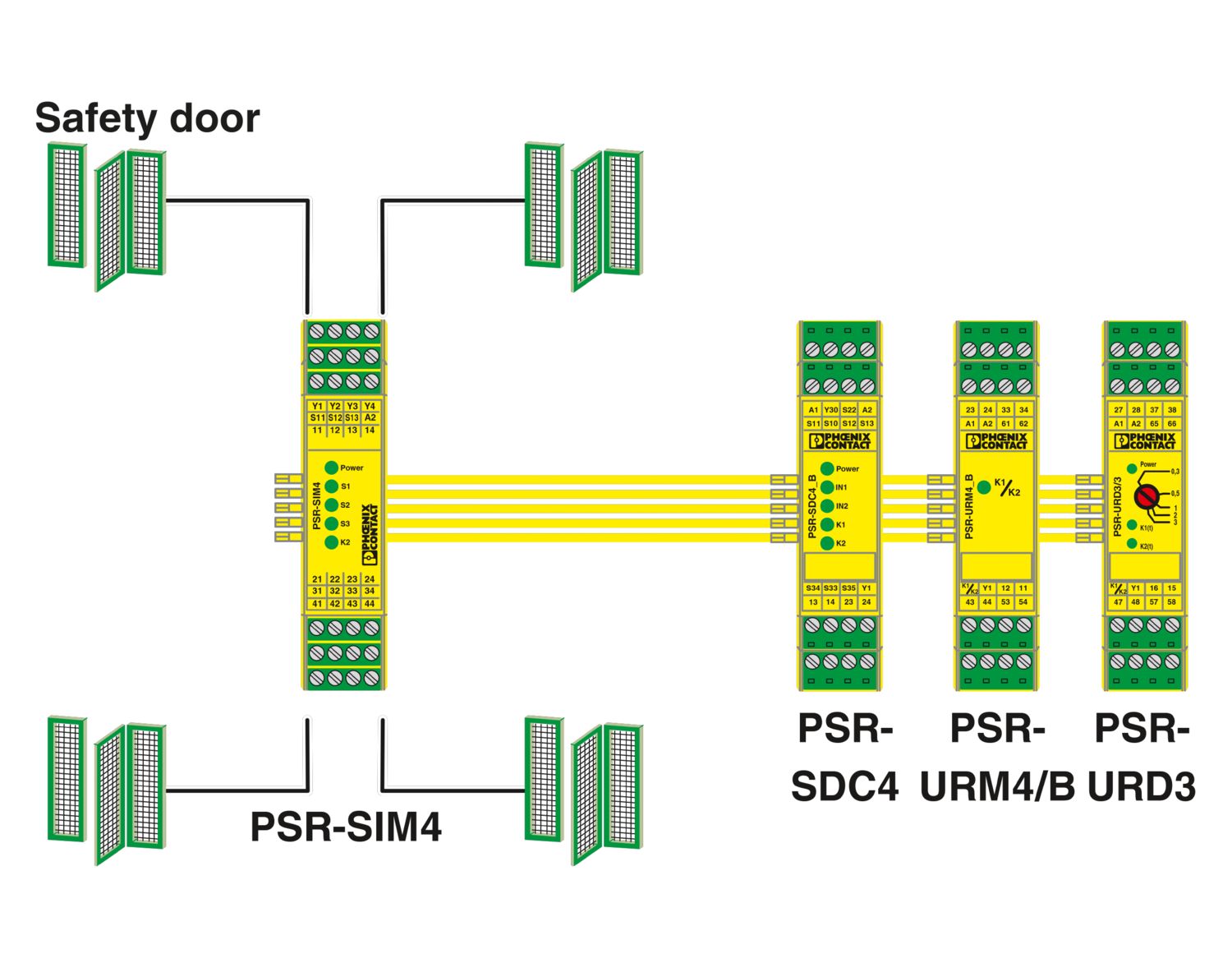

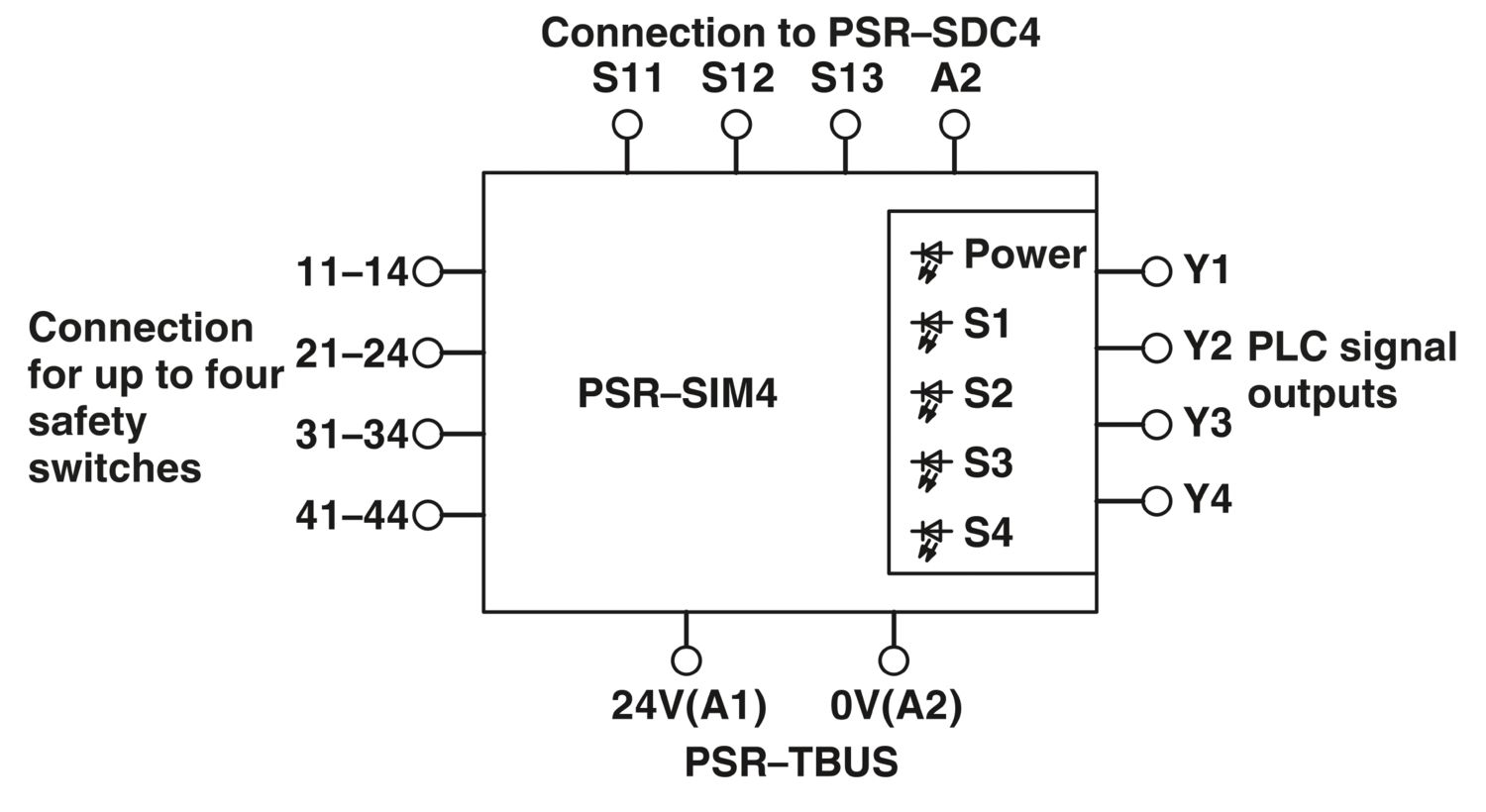

4 two-channel N/O or N/C contact inputs

Up to Cat. 3/PL d in accordance with EN ISO 13849-1, SIL 2 in accordance with IEC 61508 (in conjunction with the PSR-SDC4 master)

4 PLC diagnostic outputs for evaluating the switching state of the safety sensors

4 LEDs as status indicators for the relevant sensor/switch

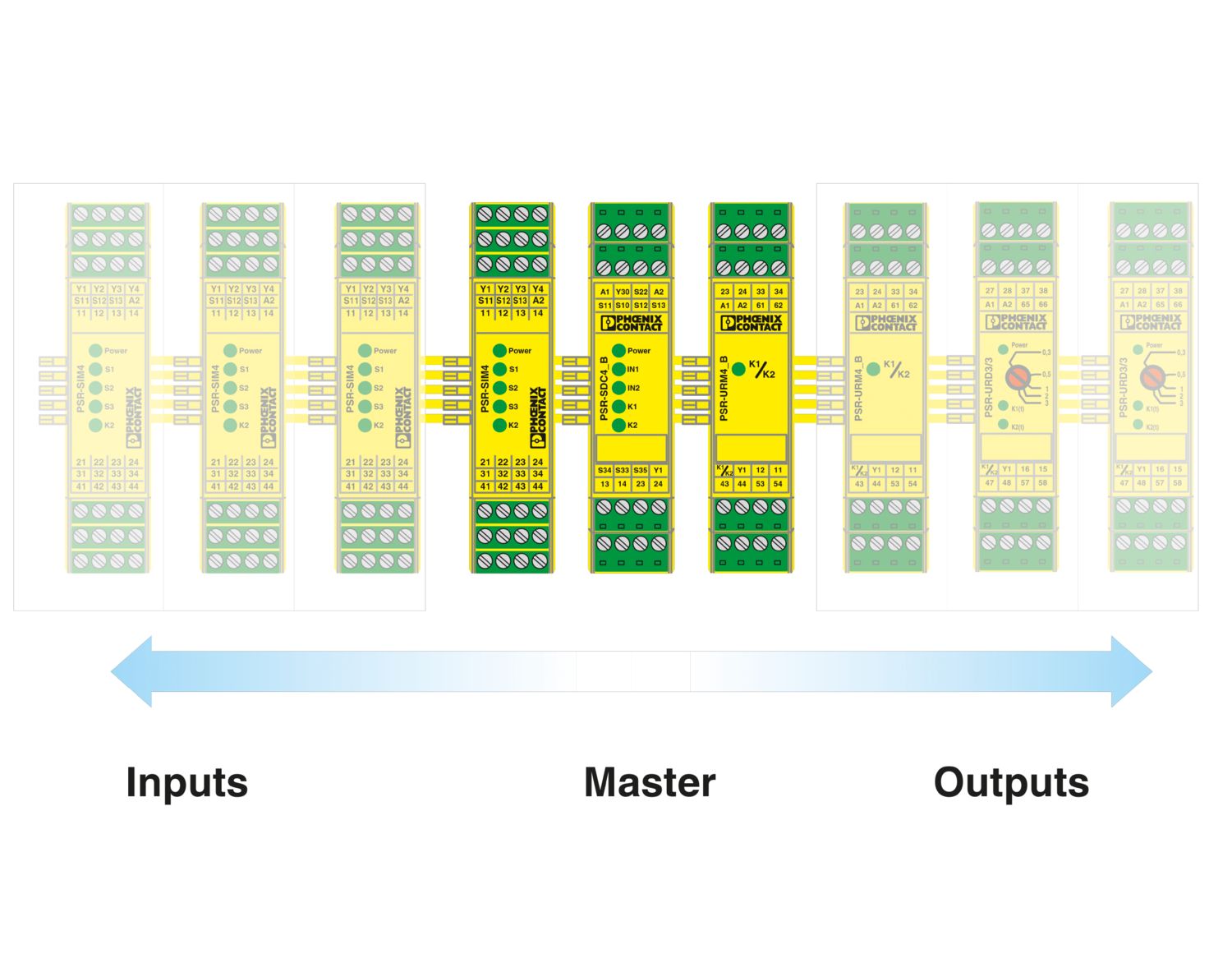

PSR-TBUS connection
