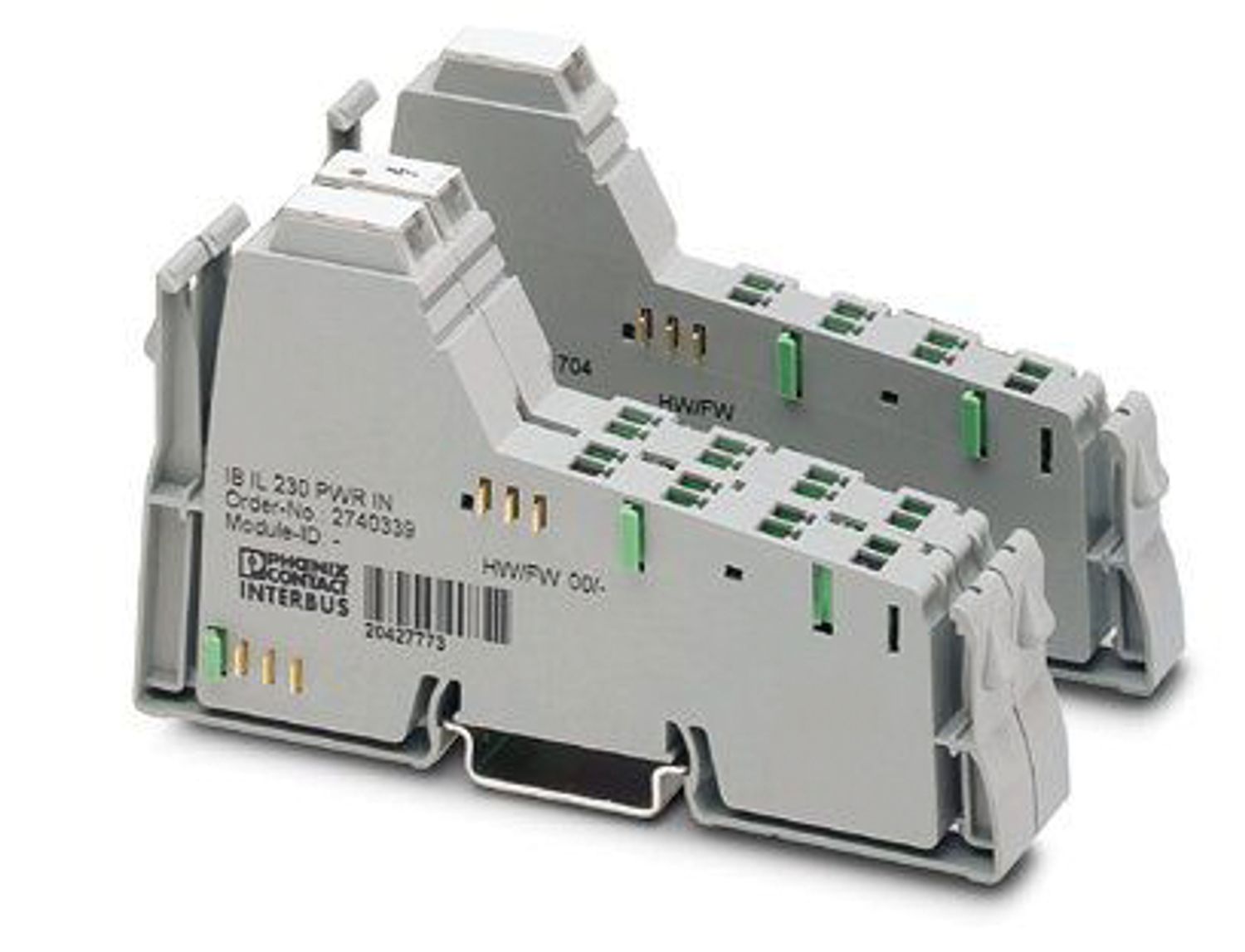

Inline power terminal block, without accessories, without fuse, 230 V AC
The terminal is designed for use within an Inline station. The terminal enables the 230 V AC supply voltage to be fed into a 230 V AC area of the Inline station. An end terminal, which must be used to terminate the 230 V AC area, is supplied as standard with the feed-in terminal.
| Type | modular |
| Inline | |
| Insulation characteristics | |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Module | |
| ID code (dec.) | none |
| ID code (hex) | none |
| Register length | 0 bit |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min |
| 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logics) / I/O area 120 V AC 2500 V AC 50 Hz 1 min | |
| Routine test 1200 V AC 50 Hz 1 min | |
| I/O area 120 V AC/PE 500 V AC 50 Hz 1 min | |
| Output / Phase 500 V AC 50 Hz 1 min | |
| Supply | |
| I/O voltage | 230 V AC |
| I/O voltage range | 207 V AC ... 253 V AC (including all tolerances, including ripple) |
| Residual ripple | ± 23 V |
| Max. current consumption | 8 A |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Inline local bus | |
| Connection method | Inline data jumper |
| Dimensional drawing |
|
| Width | 36.6 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Color | gray |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75 % ... 85 % |
| Permissible humidity (storage/transport) | 75 % ... 85 % |
| Mounting type | DIN rail mounting |
