G-INESR-M25-M68N-NEPDS-S
-
Cable gland
1415193
Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 9 mm ... 17 mm, shielding: no, connecting thread: M25 x 1.5, color: silver-colored, with external strain relief, with O-ring
Product details
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Type | with external strain relief |
| Manufacturer | WISKA |
| Manufacturer Designation | EMSKVZ 25 |
| Shielded | no |
| Execution of the strain relief | B |
| Category of shock impact | 6 |
| Design, Strain relief | B |

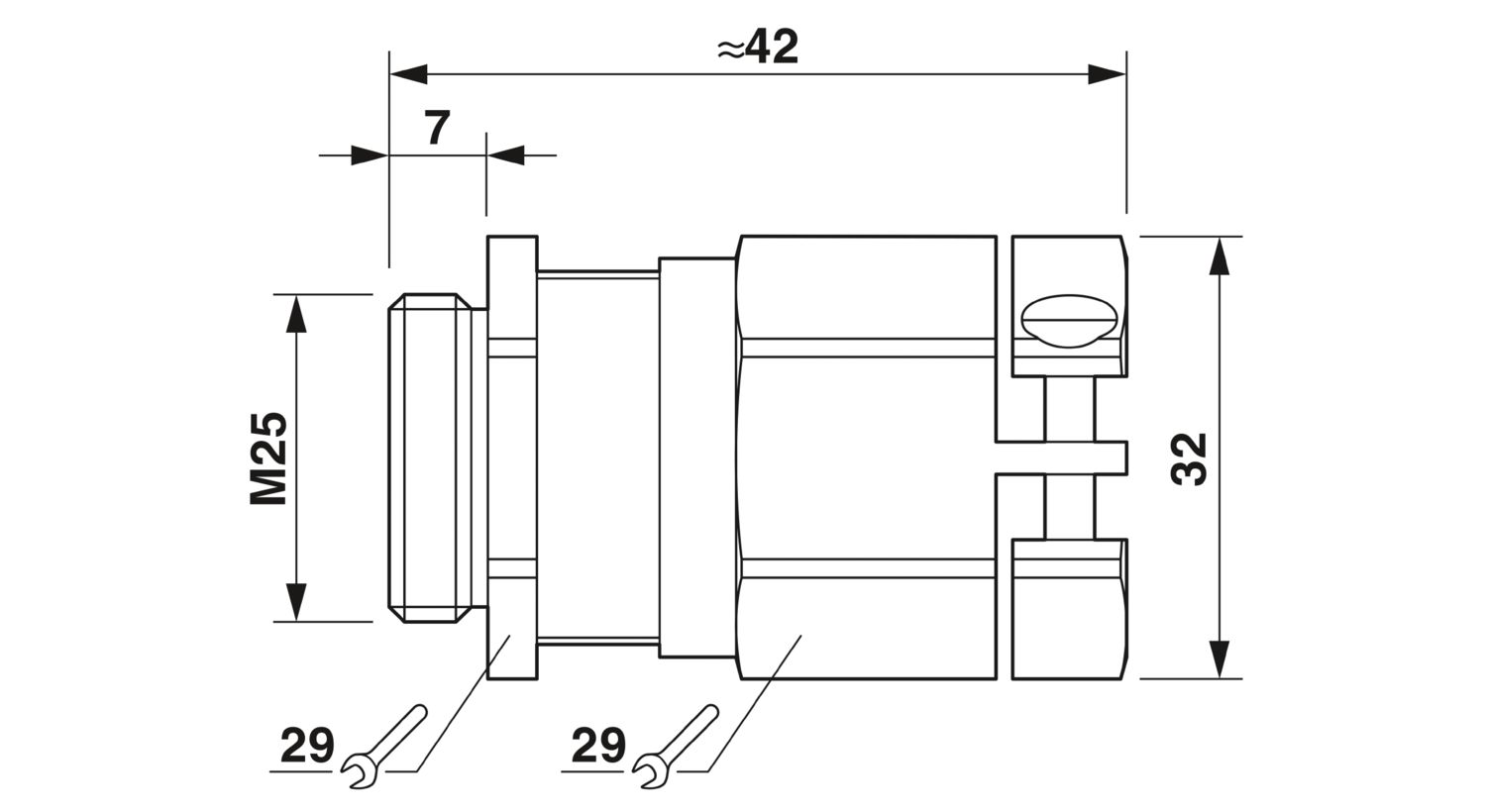

| Dimensional drawing |
|
| Length | 42 mm |
| Length of the connecting thread | 7 mm |
| Length without connecting thread | 35 mm |
| Hole diameter | 25.1 mm ... 25.2 mm |
| Wrench size, union nut | 29 mm |
| Wrench size, support | 29 mm |
| Clamping range of the strain relief clip | 9.00 mm ... 17.00 mm |
| Hexagon angular dimension | 32 mm |
| Thread type connection side | M25 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 10 Nm (Union nut: EN 62444) |
| 10 Nm (Support: EN 62444) | |
| 0.4 Nm (Screw for clip) |
| Color | brass color |
| Material Compression ring | PA |
| Seal material O-ring | EPDM |
| Seal material Cable seal | EPDM |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 9 mm ... 17 mm |
| External cable diameter | 7.5 mm ... 11.3 mm (for UL 514 B) |
| Halogen-free | yes |
| Ambient conditions | |
| Degree of protection | IP68 (5 bar / 0.5 h) |
| IP69 (DIN EN 60529 / IEC 60529) | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
Your advantages
Weatherproof sealing material
Halogen-free
