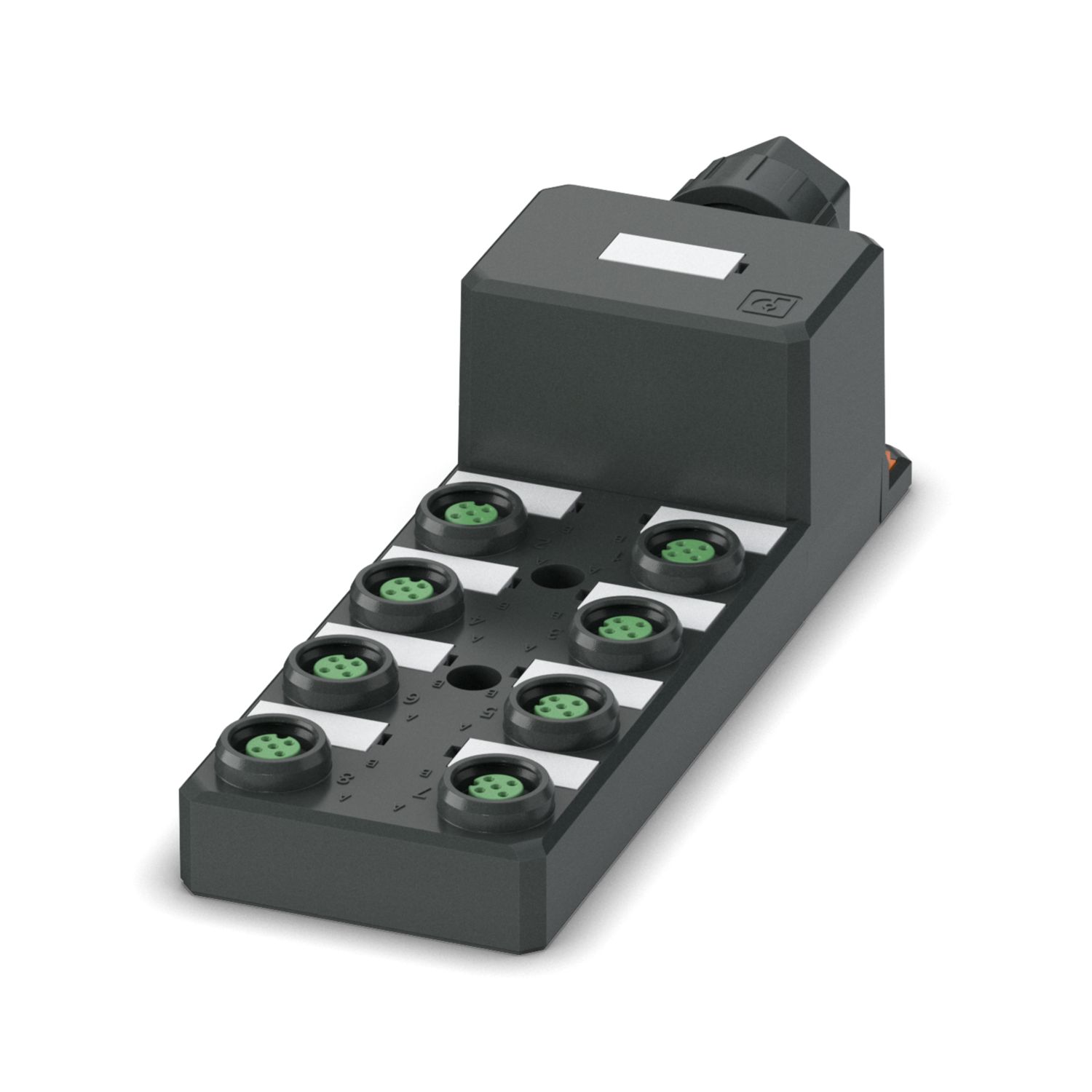

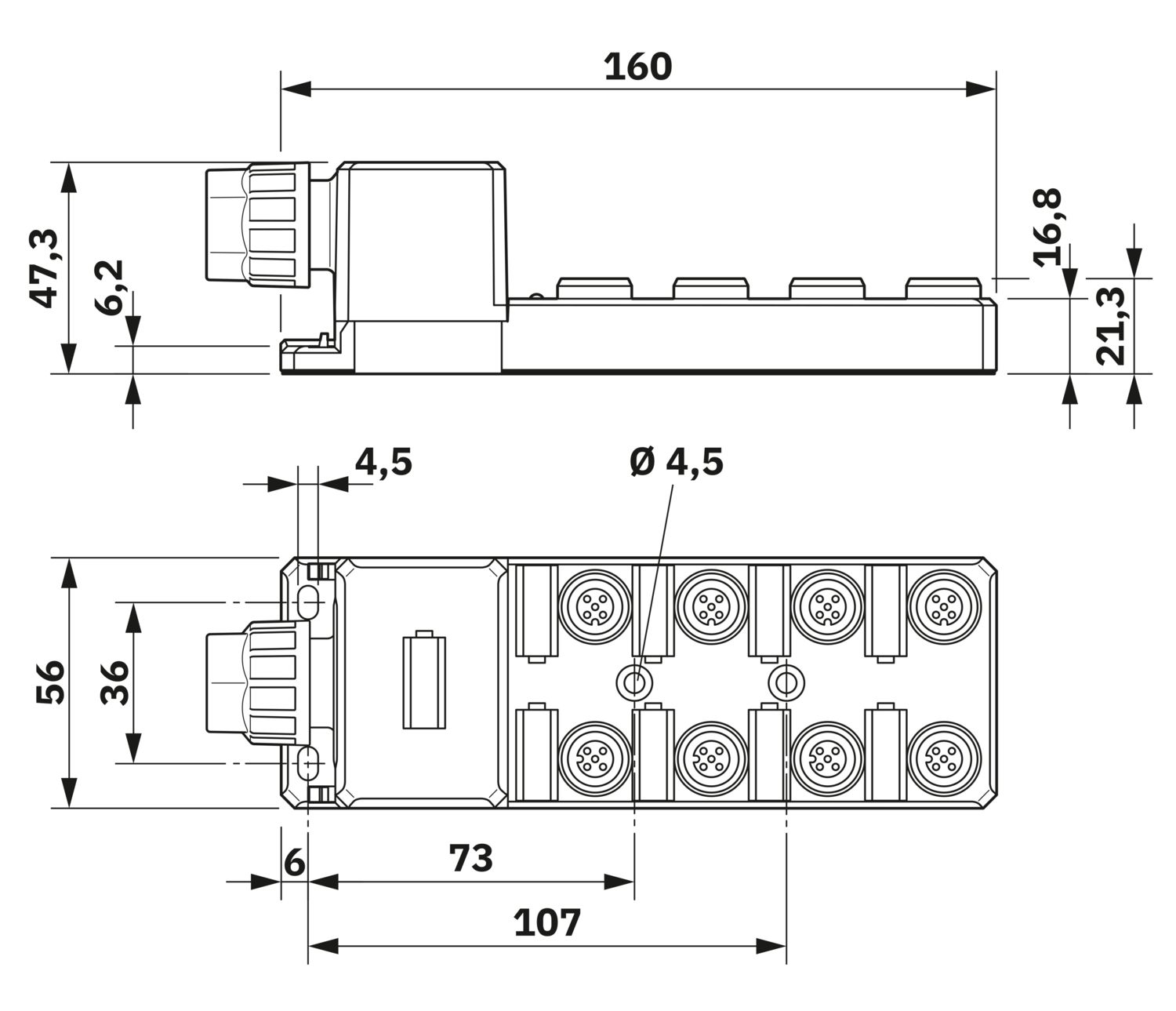

SACB-8/16-PT P12 - Distributor box - 1491618

Notes

Assembly note	NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Note on application	Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Note regarding documentation	For details about the used PCB connectors SPTA 1/10-3,5 - 1752188, refer to the technical data for the item

Product properties

Product type	Distributor box
Application	Standard
Number of positions	5
Number of slots	8
Coding	A

Electrical properties

Nominal voltage U_N	120 V AC
	120 V DC
Rated current, total	8 A
Max. current carrying capacity per path	2 A
Current carrying capacity per slot	4 A

Connection data

Conductor connection
Sensor/actuator connection system	M12 PUSH-PULL female connector
Conductor cross section Flexible signal line	0.2 mm² ... 1 mm²
Conductor cross section Flexible power supply	0.2 mm² ... 1 mm²
Connection cross section AWG Flexible signal line	24 ... 16
Connection cross section AWG Flexible power supply	24 ... 16
Stripping length Signal line	8 mm
Stripping length Power supply	8 mm
Stripping length of the sheath	50 mm (Master cable)
Tightening torque of mounting screw for fixing the housing	0.5 Nm
Tightening torque, union nut	5 Nm
Connection assignment
Slot/position = Wire color or connection	1 / 4 (A) = WH
		1 / 2 (B) = GYPK
		2 / 4 (A) = GN
		2 / 2 (B) = RDBU
		3 / 4 (A) = YE
		3 / 2 (B) = WHGN
		4 / 4 (A) = GY
		4 / 2 (B) = BNGN
		5 / 4 (A) = PK
		5 / 2 (B) = WHYE
		6 / 4 (A) = RD
		6 / 2 (B) = YEBN
		7 / 4 (A) = BK
		7 / 2 (B) = WHGY
		8 / 4 (A) = VT
		8 / 2 (B) = GYBN
		1-8 / 1 (+ 120 V) = BN
		1-8 / 3 (0 V) = BU
		1-8 / 5 (PE) = GNYE

Signaling

Status display present	no

Material specifications

Material Housing	PBT
Flammability rating according to UL 94	V0
Seal material	FKM
Contact material	CuSn
Contact surface material	Ni/Au
Contact carrier material	PA

Cable/line

External cable diameter	7 mm ... 12 mm
Connection method	Push-in connection

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP65
	IP67
Ambient temperature (operation)	-25 °C ... 80 °C

Standards and regulations

Standard designation	M12-Push-Pull
Standards/specifications	IEC 61076-2-010

Item number	1491618
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	AF3
Product key	AF3CBC
GTIN	4063151939243
Weight per piece (including packing)	252 g
Weight per piece (excluding packing)	252 g
Customs tariff number	85366990
Country of origin	DE

ECLASS-13.0	27440111
ECLASS-15.0	27440111

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
