CBT-ISDN
-
Type 3 surge protection device
2857316

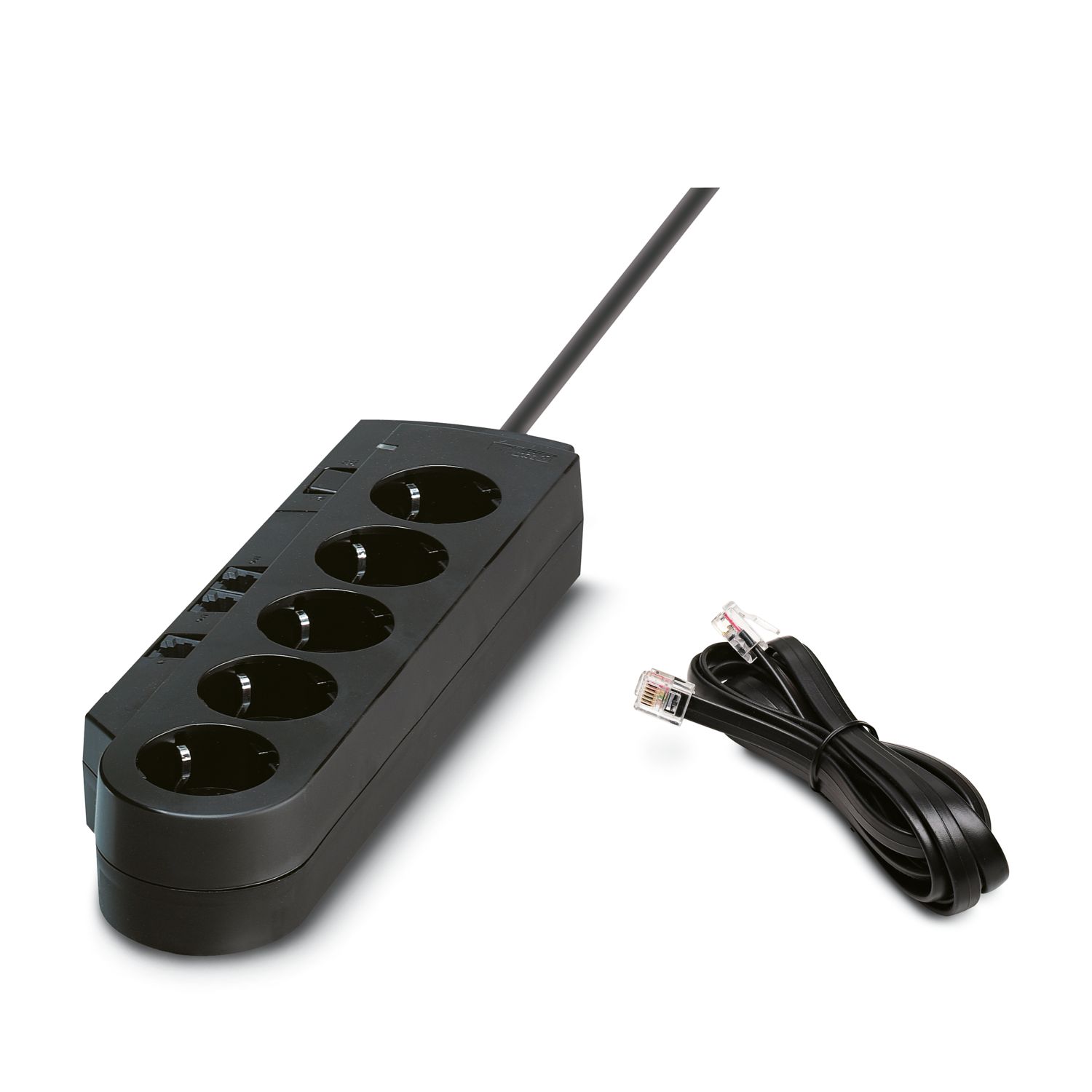

Five-way socket strip, with surge protection, ISDN connection, on/off switch, and power display. Display switches off automatically when there is a malfunction due to overload. Cable is provided. For country-specific use in: D, A, I, NL, S, E, N, FIN
Product details

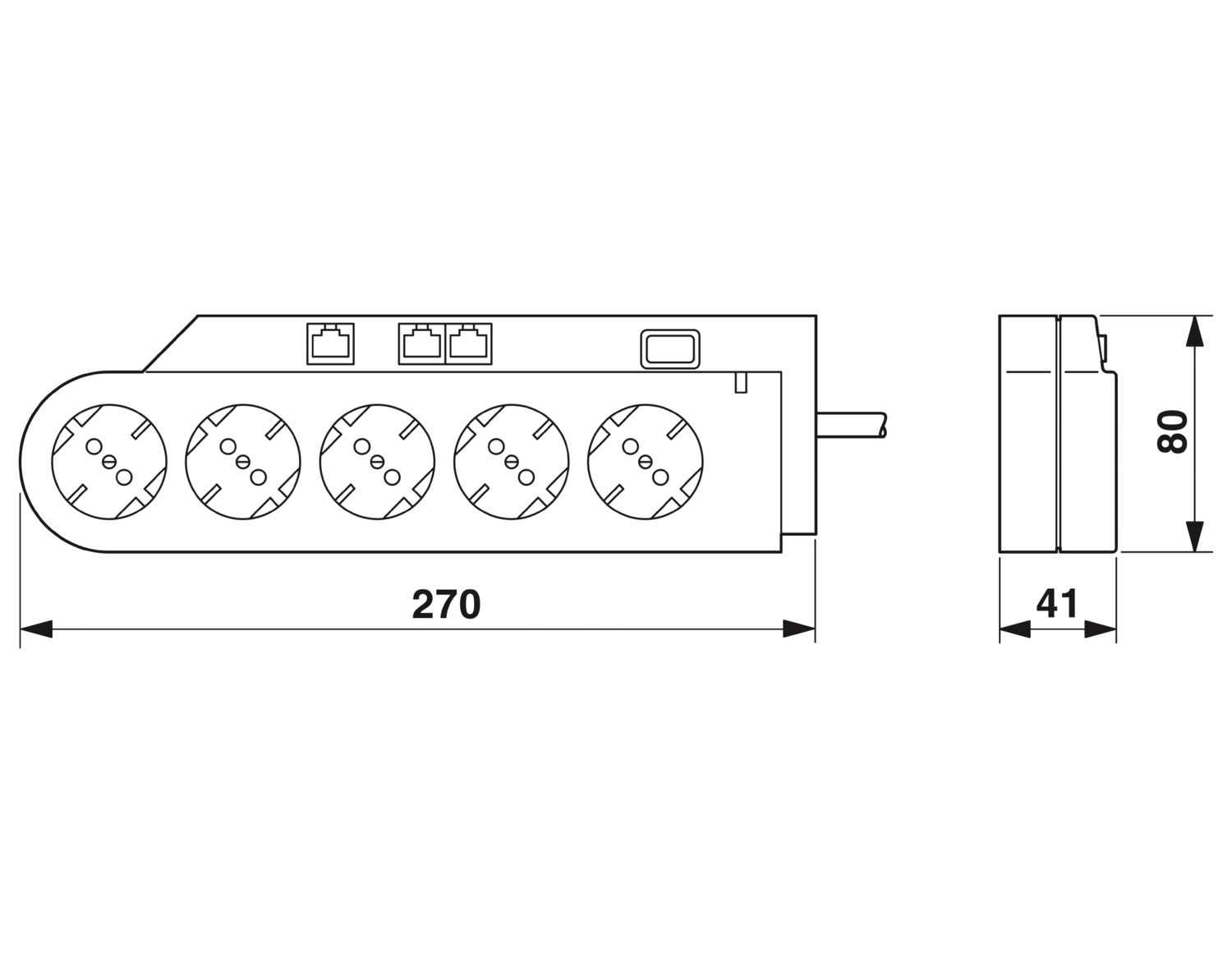

| Product type | Device protection |
| IEC test classification | C2 |
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Type | Socket strip |
| For country-specific use in | D, I, NL, E, P |
| Surge protection fault message | optical |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| EN type | T3 |
| Connection method | RJ45 |
| Dimensional drawing |
|
| Width | 81 mm |
| Height | 271 mm |
| Depth | 42 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PA |
| Cable length | 1.80 m |
| Power supplies | |
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 260 V AC |
| Maximum continuous operating voltage UC (L-PE) | 260 V AC |
| Rated load current IL | 16 A (30 °C) |
| Protective conductor current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (L-N) | 1.5 kA |
| Nominal discharge current In (8/20) µs (L-PE) | 1.5 kA |
| Nominal discharge current In (8/20) µs (N-PE) | 1.5 kA |
| Voltage protection level Up (L-N) | ≤ 1.3 kV |
| Voltage protection level Up (L-PE) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Residual voltage at In | ≤ 1.2 kV |
| ≤ 650 V | |
| ≤ 650 V | |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Max. required back-up fuse | 16 A (gL/C) |
| Information technology | |
| Maximum continuous voltage UC (line-line) | 6 V DC |
| Maximum continuous voltage UC (line-earth) | 6 V DC |
| 6 V DC | |
| Nominal discharge current In (8/20) µs (line-line) | 650 A |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 10 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 450 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 10 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 450 V |
| Residual voltage at In (conductor-conductor) | ≤ 12 V |
| Residual voltage at In (conductor-ground) | ≤ 30 V |
| Voltage protection level Up (line-line) | ≤ 65 V |
| Voltage protection level Up (line-earth) | ≤ 450 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-shield) | ≤ 1 ns |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | typ. 580 kHz |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 75 °C |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Air clearances and creepage distances | |
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
| Standards Information technology specification | |
| Standards/regulations | IEC 61643-1 |
| EN 61643-11/A11 | |
| IEC 61643-21 | |
| IEC 61643-21 | |
| Standards/specifications | IEC 61643-1 |
| Note | 2005 |
| Standards/specifications | EN 61643-11/A11 |
| Note | 2007 |
| Mounting type | Socket strip |
