CDC-MP 0,14-0,5 - Crimp contact
CDC-MP 0,14-0,5
-
Crimp contact
1016664
Crimp contact
Product details
Expand all
Collapse all
Technical data
Notes
Note on application
The crimp contacts may only be processed with approved crimping tools.
Note regarding documentation
The crimp heights depend on the crimping tool used. You can find the values in the tool documentation.
Product properties
Product type
Crimp contact
Product family
CDC-MP
Connection data
Connection method
Crimp connection
Contact connection type
Socket
Stripping length
3 mm
Conductor cross section flexible
0.14 mm² ... 0.5 mm²
Conductor cross section AWG
26 ... 20
Material specifications
Contact surface
Tin Sn
Contact surface material
Tin
Metal surface terminal point (top layer)
Tin (2 - 4 µm Sn)
Metal surface contact area (top layer)
Tin (2 - 4 µm Sn)
Surface characteristics
hot-dip tin-plated
Contact material
Cu alloy
Electrical properties
Nominal current I
N
6 A
Packaging specifications
Type of packaging
Bulk goods
Commercial data
Item number
1016664
Packing unit
100 pc
Minimum order quantity
100 pc
Note
Made to order (non-returnable)
Sales key
AAC
Product key
AACDCA
GTIN
4055626499017
Weight per piece (including packing)
0.13 g
Weight per piece (excluding packing)
0.1 g
Customs tariff number
85366990
Country of origin
DE
Classifications
ECLASS
ECLASS-13.0
27460403
ETIM
ETIM 9.0
EC000796
UNSPSC
UNSPSC 21.0
39121500
Environmental product compliance
EU RoHS
Fulfills EU RoHS substance requirements
Yes
(No exemptions)
China RoHS
Environment friendly use period (EFUP)
EFUP-E
No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)
No substance above 0.1 wt%
Compatible products
Expand all
Collapse all
Accessories

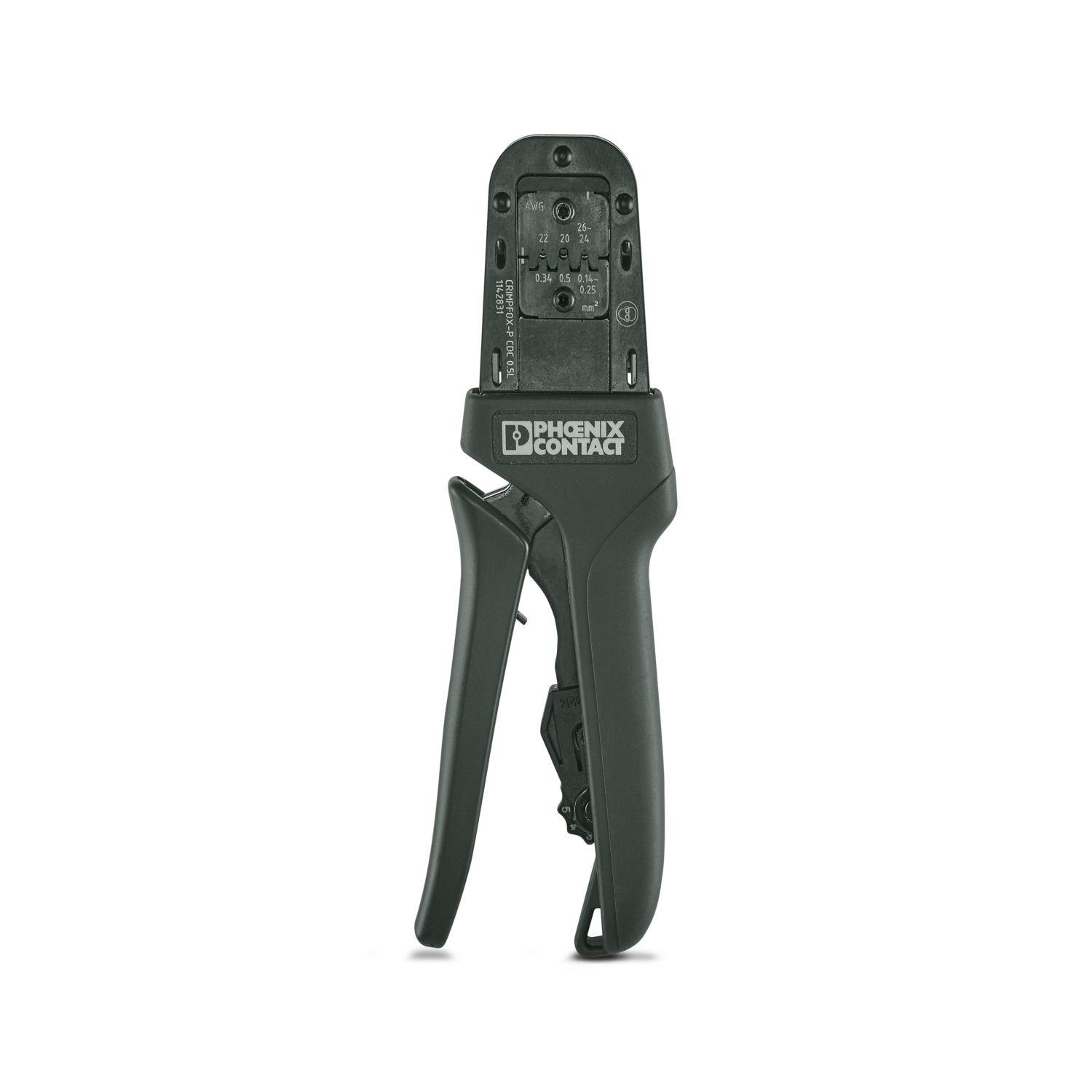

CRIMPFOX-P CDC 0.5L
-
Crimping pliers
1142831
CDDC 1,5/ 2-PV-3,5
-
Direct connector
1016515
CDDC 1,5/ 3-PV-3,5
-
Direct connector
1016513
CDDC 1,5/ 4-PV-3,5
-
Direct connector
1016512
CDDC 1,5/ 5-PV-3,5
-
Direct connector
1016516
CDDC 1,5/ 6-PV-3,5
-
Direct connector
1016517
CDDC 1,5/ 7-PV-3,5
-
Direct connector
1016518
CDDC 1,5/ 8-PV-3,5
-
Direct connector
1016519
CDDC 1,5/ 9-PV-3,5
-
Direct connector
1016520
CDDC 1,5/10-PV-3,5
-
Direct connector
1016521
CDDC 1,5/11-PV-3,5
-
Direct connector
1016510
CDDC 1,5/12-PV-3,5
-
Direct connector
1016522
CDDC 1,5/13-PV-3,5
-
Direct connector
1016523
CDDC 1,5/14-PV-3,5
-
Direct connector
1016524
CDDC 1,5/15-PV-3,5
-
Direct connector
1016525
CDDC 1,5/16-PV-3,5
-
Direct connector
1016526
CDDC 2,5/ 2-PV-5,0
-
Direct connector
1016293
CDDC 2,5/ 3-PV-5,0
-
Direct connector
1016292
CDDC 2,5/ 4-PV-5,0
-
Direct connector
1016290
CDDC 2,5/ 5-PV-5,0
-
Direct connector
1016289
CDDC 2,5/ 6-PV-5,0
-
Direct connector
1016288
CDDC 2,5/ 7-PV-5,0
-
Direct connector
1016286
CDDC 2,5/ 8-PV-5,0
-
Direct connector
1016285
CDDC 2,5/ 9-PV-5,0
-
Direct connector
1016280
CDDC 2,5/10-PV-5,0
-
Direct connector
1016279
CDDC 2,5/11-PV-5,0
-
Direct connector
1016278
CDDC 2,5/12-PV-5,0
-
Direct connector
1016277
CDDC 2,5/13-PV-5,0
-
Direct connector
1016276
CDDC 2,5/14-PV-5,0
-
Direct connector
1016274
CDDC 2,5/15-PV-5,0
-
Direct connector
1016273
CDDC 2,5/16-PV-5,0
-
Direct connector
1016272
