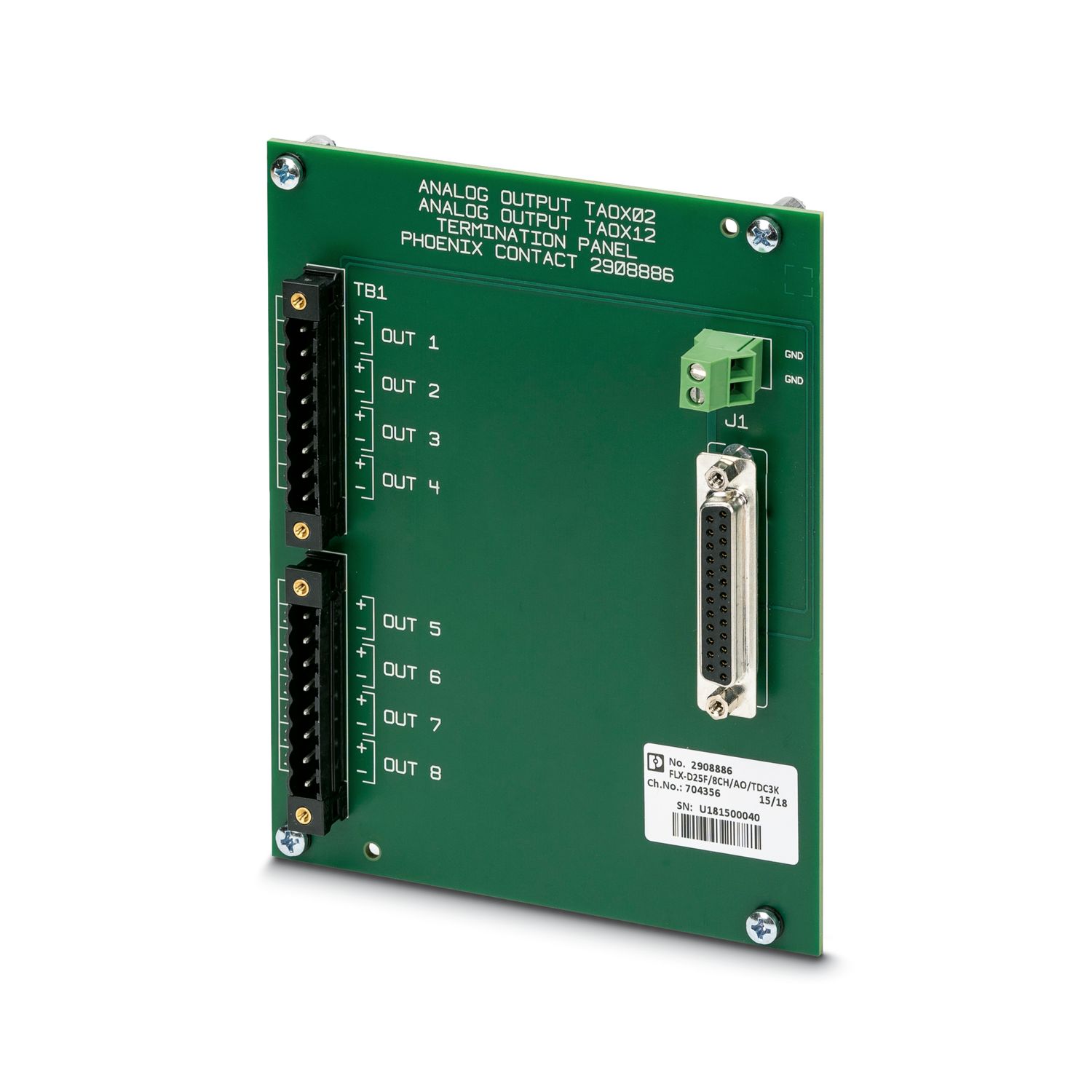

FLX-D25F/8CH/AO/TDC3K - Termination board

2908886

Migration board for converting TDC3000 to modern control platforms, analog output, 8 channel

Product details

Technical data

Product properties

Product type	Interface module
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Electrical properties

Operating voltage	30 V DC
Max. current carrying capacity per branch	500 mA
Supported controller HONEYWELL TDC3000
Suitable I/O card	TAOX02
	TAOX12

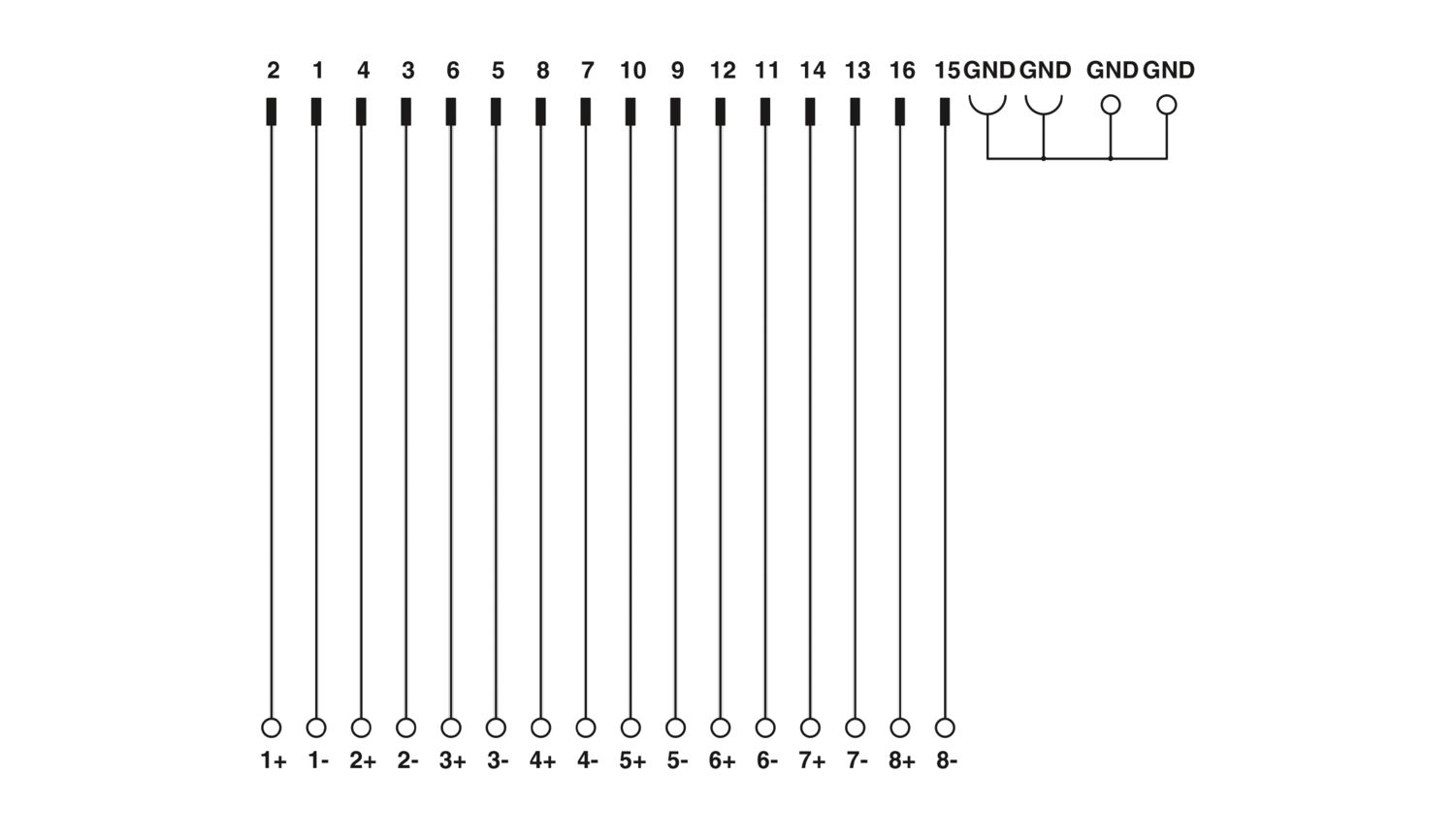

Connection data

Controller level
Connection method	D-SUB-25 female connector
Number of connections	1
Number of positions	25
Field level
Connection method	pluggable

Dimensions

Item dimensions

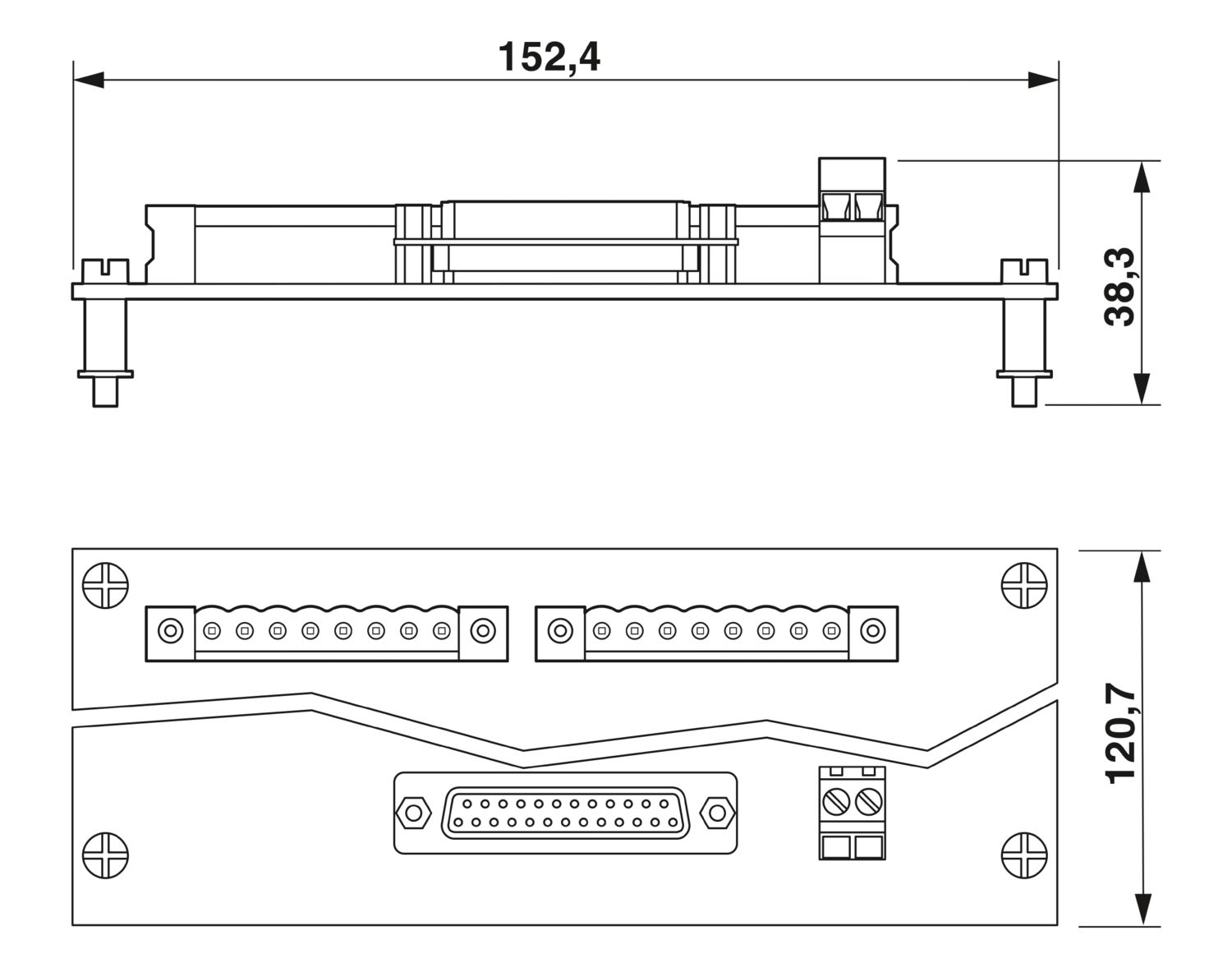

Width	152.4 mm
Height	120.7 mm
Depth	38.3 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 75 °C
Altitude	< 2000 m
Permissible humidity (operation)	< 90 %

Mounting

Mounting type	TDC3000 chassis
Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2908886
Packing unit	1 pc
Minimum order quantity	2 pc
Sales key	DK2
Product key	DK2B8H
GTIN	4055626477909
Weight per piece (including packing)	315 g
Weight per piece (excluding packing)	300 g
Customs tariff number	85371098
Country of origin	US

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
		0.5 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
		0.5 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
		0.5 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
		0.5 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Panel mount to existing TDC3000 chassis

Compatable with existing pluggable field wiring connectors

DSUB control side connection

Terminal blocks for power supply

PHOENIX CONTACT s.r.o.

Námestie Mateja Korvína 1, 811 07 Bratislava. Zapísaná v Obchodnom registri Okresného súdu Bratislava III, vložka číslo 48994/B.

Ask a Question +421 2 3210 1470 obchod.sk@phoenixcontact.com

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	e6d5d260-8f3c-4cc5-b753-8cb2d05e95b6

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FLX-D25F/8CH/AO/TDC3K - Termination board

2908886

Product details

ECLASS

ETIM

UNSPSC

CSA

cUL Recognized

UL Recognized

CSAus

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FLX-D25F/8CH/AO/TDC3K - Termination board 2908886

Product details

ECLASS

ETIM

UNSPSC

Compatible products

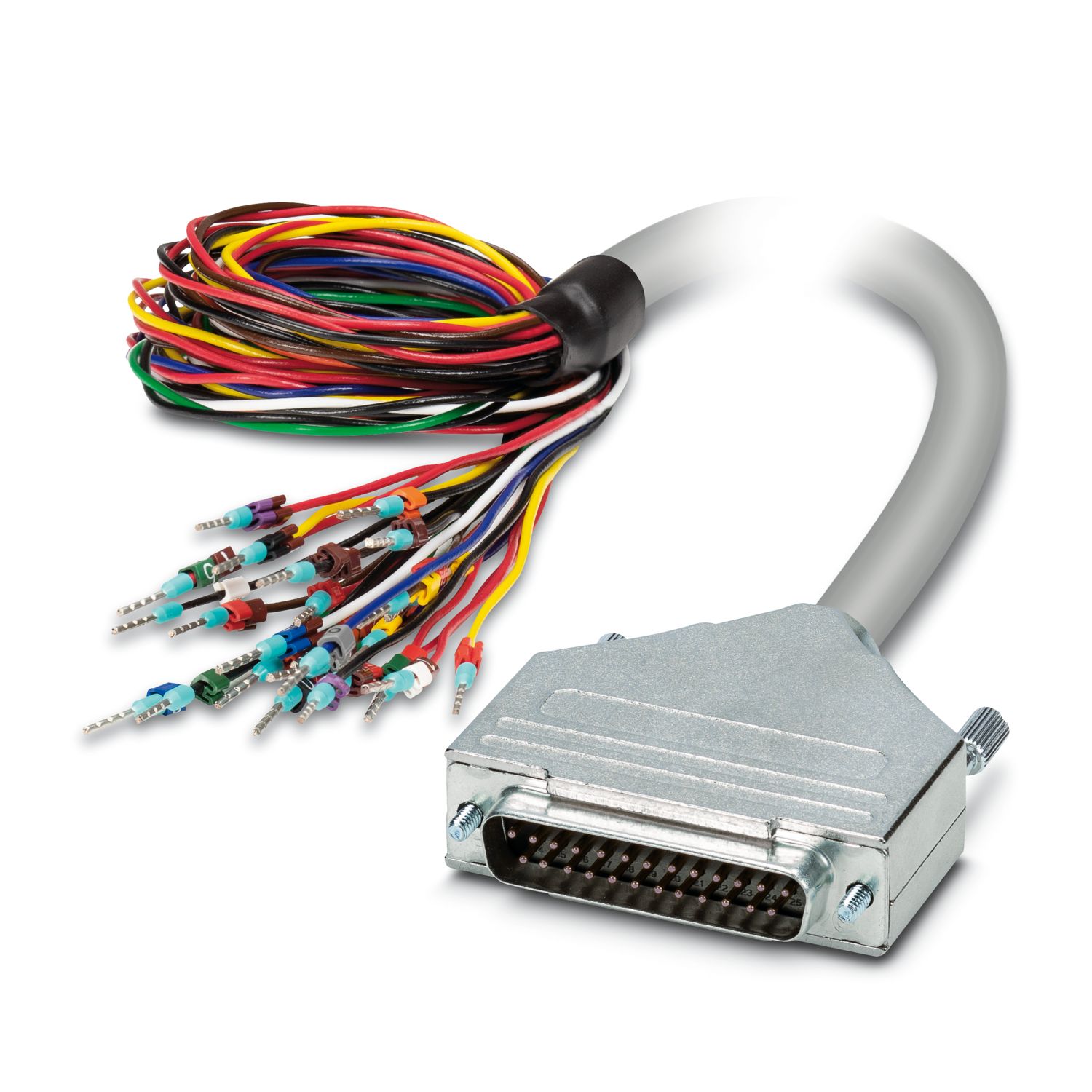

CAB-DSUB25M/OE/22/S/ 1M - Cable 2909752
