CSA
Approval ID: 13631| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Use group B | ||||
| 300 V | 7 A | 28 - 18 | ||
| Use group C | ||||
| 300 V | 7 A | 28 - 18 | ||
P-CO XL SKN
-
Component connector
3036798
Component connector, specifically for holding the SKN 2,5 diode, nom. voltage: 400 V, nominal current: 1.25 A, connection method: Plug-in connection, depth: 37.5 mm, width: 12.3 mm, height: 41.2 mm, number of positions: 1, color: gray, mounting type: Pluggable (slot)
Product details

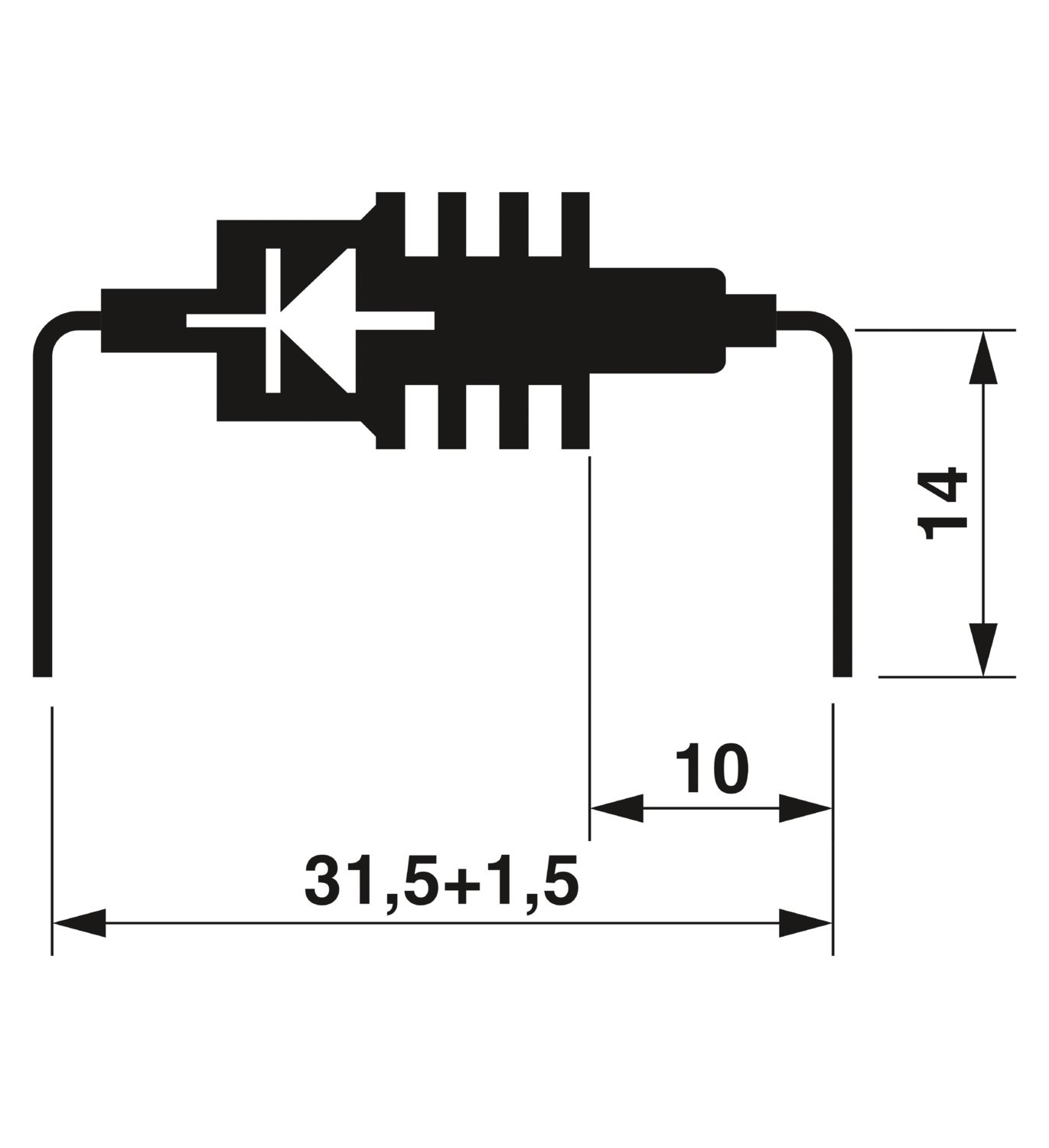

| Notes on operation | Components with a wire diameter from 0.3 mm up to 1.2 mm can be used |
| Product type | Component plug terminal block |
| Number of positions | 1 |
| Potentials | 1 |
| Nominal current | 1.25 A (the current is determined by the component used) |
| Maximum load current | 10 A |
| Nominal voltage | 400 V (the voltage is determined by the component used) |
| Dimensional drawing |
|
| Width | 12.3 mm |
| Height | 41.2 mm |
| Depth | 37.5 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Pluggable (slot) |
Your advantages
Suitable for discreet components with high power dissipation
Solderless spring-cage connection
Suitable for use in all terminal blocks with a separation zone and a central marking groove (...-TG)
Connector with internal contact area for SKN 2.5 diodes
Tested for railway applications
