CK2,5-ED-0,5ST CUNI
-

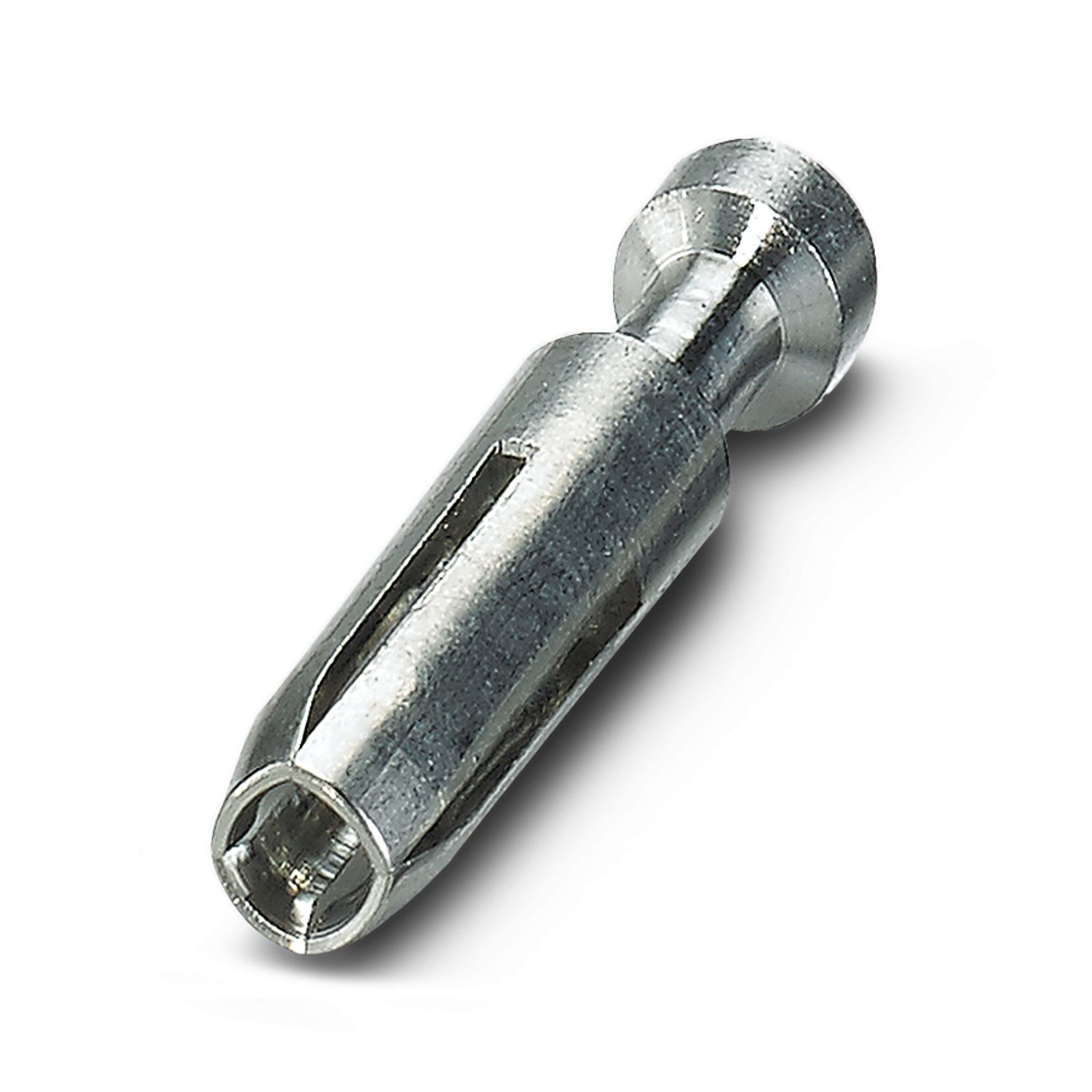

Crimp contact
1585744
Crimp contact, contact diameter: 2.5 mm, turned, Pin, contact material: Copper-nickel (constants), connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
Product details
| General | For HC-M-06, HC-M-HV, HC-M-08, HC-A, HC-BB, HC-B and HC-HV contact inserts, the quality of a crimp connection is determined by the DIN EN 60 352-2 |
| Product type | Thermal contact |
| Series | HC-M-06; HC-M-HV; HC-M-08; HC-A; HC-BB; HC-B; HC-HV |
| Type | Individual male contact |
| Contact material type | turned |
| Rated current | 16 A |
| Connection method | Crimp connection |
| Dimensional drawing |
|
| Width | 4.5 mm |
| Height | 4.5 mm |
| Depth | 25 mm |
| Mechanical characteristics | |
| Contact diameter | 2.5 mm |
| Contact material | Copper-nickel (constants) |
| Stripping length of the individual wire | 7.5 mm (9.5 mm at HC-M-HV...) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | The quality of a crimp connection is determined by DIN EN 60352-2. |
