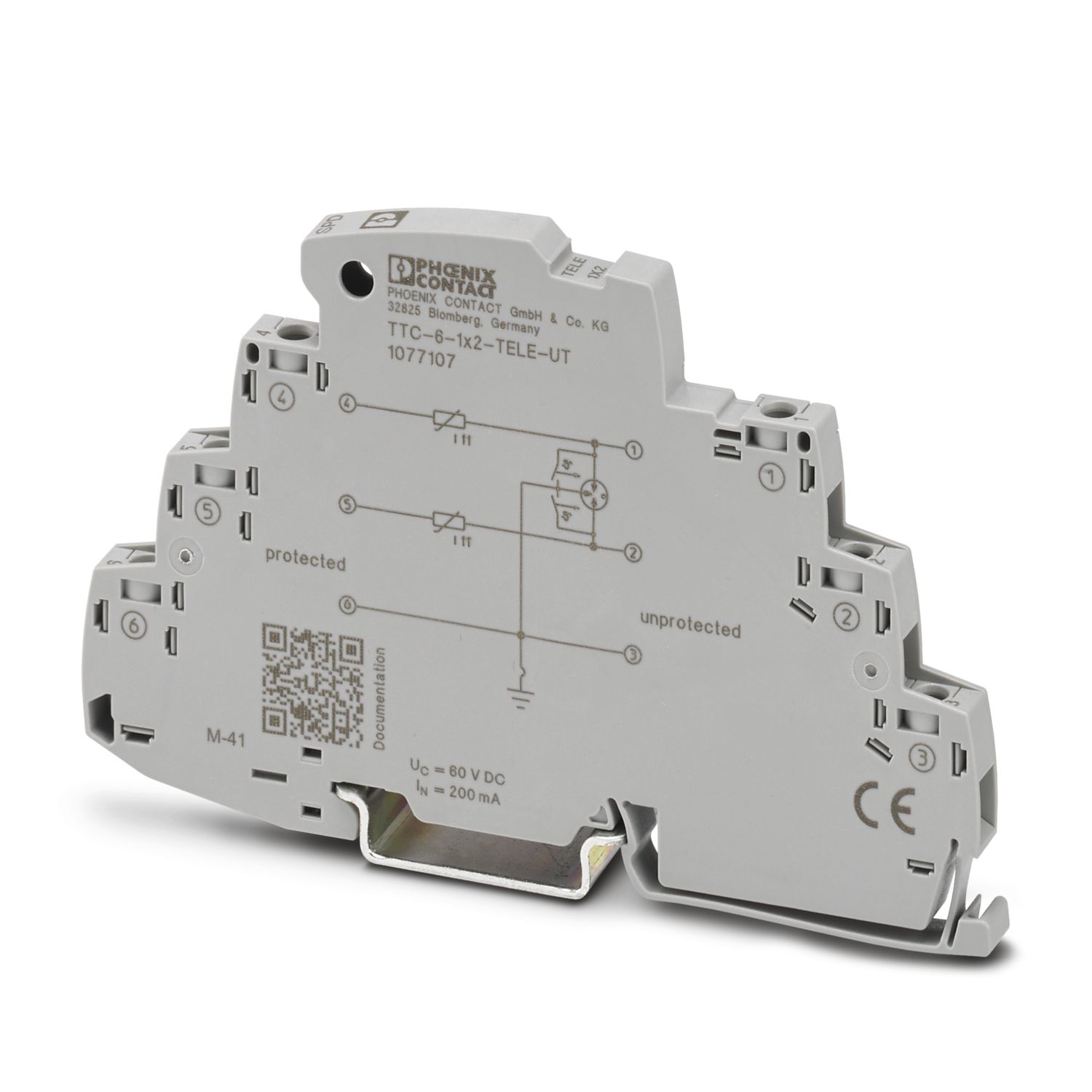

TTC-6-1X2-TELE-UT
-
Surge protection device
1077107
Surge protection for analog and digital telecommunications interfaces (VDSL up to 300 Mbps, G.fast up to 1.5 Gbps). Integrated overload protection (power-cross).
Product details
| Product family | TERMITRAB complete |
| IEC test classification | B2 |
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Type | DIN rail module, one-piece |
| Wire pairs per module | 1 |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Dimensional drawing |
|
| Width | 6.2 mm +0.1 mm |
| Height | 105.8 mm |
| Depth | 69.5 mm (incl. DIN rail 7.5 mm) |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing material | PBT |
| Mechanical data | |
| Open side panel | No |
| Maximum continuous operating voltage UC | 60 V DC |
| Rated current | 200 mA |
| Operating effective current IC at UC | ≤ 1 µA |
| Protective conductor current IPE | ≤ 1 µA |
| Nominal discharge current In (8/20) µs (line-line) | 5 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Pulse discharge current Iimp (10/350) µs (line-line) | 0.5 kA |
| Pulse discharge current Iimp (10/350) µs (line-earth) | 0.5 kA |
| Total discharge current ITotal (8/20) µs | 10 kA |
| Voltage protection level Up (line-line) | ≤ 650 V (B2 - 1 kV) |
| ≤ 800 V (B2 - 4 kV) | |
| ≤ 1 kV (C1 - 1 kV / 500 A) | |
| ≤ 1.4 kV (C2 - 10 kV / 5 kA) | |
| ≤ 850 V (C3 - 15 A) | |
| ≤ 1.1 kV (C3 - 25 A) | |
| ≤ 1.4 kV (C3 - 100 A) | |
| Voltage protection level Up (line-earth) | ≤ 600 V (B2 - 1 kV) |
| ≤ 750 V (B2 - 4 kV) | |
| ≤ 750 V (C1 - 1 kV / 500 A) | |
| ≤ 800 V (C2 - 10 kV / 5 kA) | |
| ≤ 650 V (C3 - 15 A) | |
| ≤ 750 V (C3 - 25 A) | |
| ≤ 1.2 kV (C3 - 100 A) | |
| Response time tA (line-line) | ≤ 100 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 1 dB (≤ 40 MHz/150 Ω) |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 100 MHz |
| Capacity (Core-Core) | typ. 10 pF |
| Resistance per path | 6 Ω |
| Surge protection fault message | none |
| Impulse durability (line-line) | B2 - 4 kV / 100 A |
| C1 - 1 kV / 500 A | |
| C2 - 10 kV / 5 kA | |
| C3 - 100 A | |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| C1 - 1 kV / 500 A | |
| C2 - 10 kV / 5 kA | |
| C3 - 100 A | |
| D1 - 500 A | |
| Pulse reset time (line-line) | ≤ 30 ms |
| Pulse reset time (line-earth) | ≤ 200 ms |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| EN 61643-21 | |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
| Mounting type | DIN rail: TH 35 - 7.5 mm |
Your advantages
For analog and digital (DSL) telecommunications interfaces up to 300 Mbps or 1.5 Gbps with G.fast
Space-saving and inexpensive with a narrow overall width of just 6.2 mm
Safe behavior in the event of overload (power-cross) with integrated short-circuit mechanism and electronic current limiter
Tests by Deutsche Telekom confirm compatibility with VDSL, vectoring VDSL, super-vectoring VDSL (SVVDSL), and G.fast
