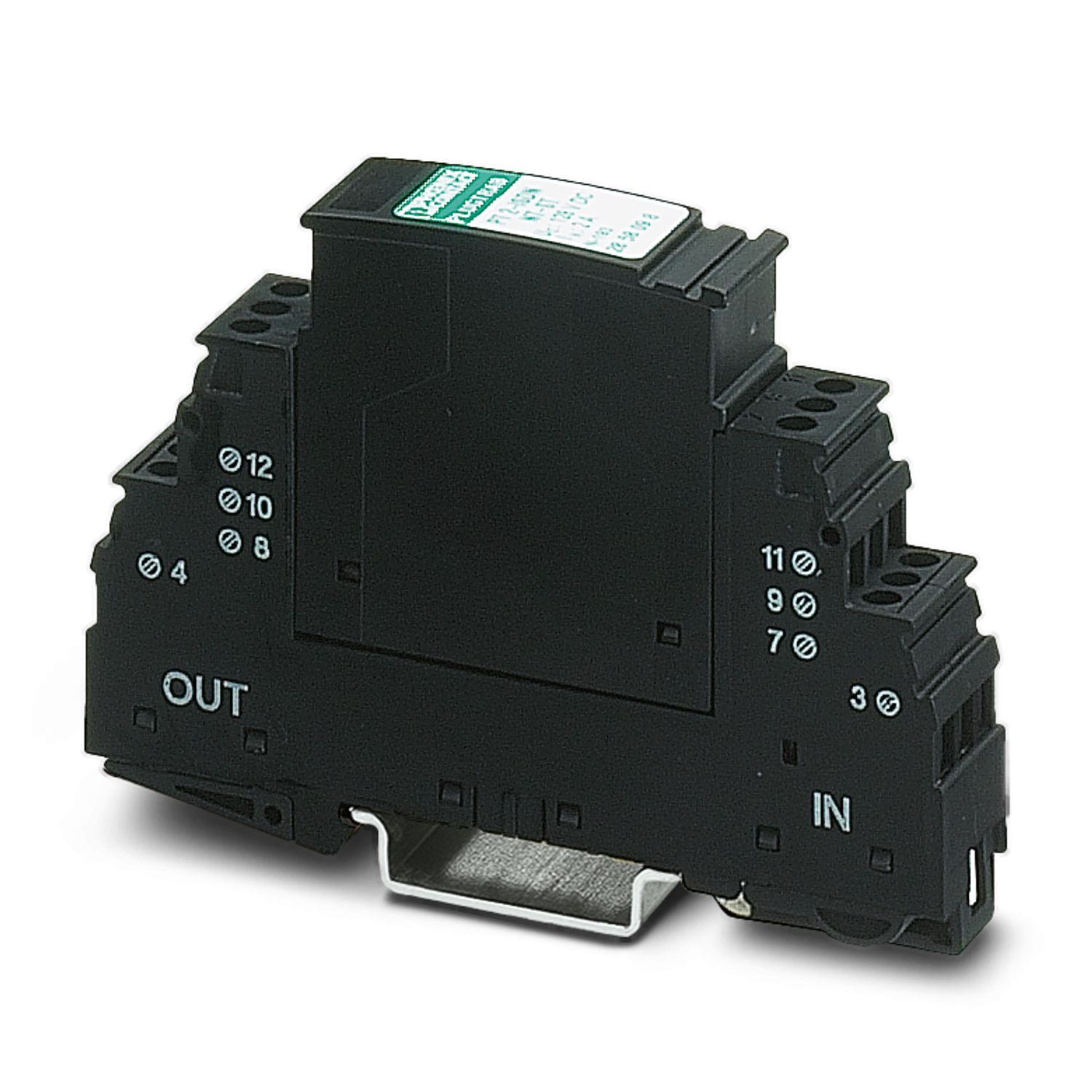

PT 2-ISDN-NT-ST
-
Surge protection plug
2858098
Surge protection plug for base element, for the protection of a double wire of the Uko interface (ISDN).
This product needs further products for operation.
Mandatory accessories
Product details
| Product type | Surge protection for MCR technology |
| Product family | PLUGTRAB PT |
| Type | Male |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
| Connection method | Screw connection (in connection with the base element) |
| Dimensional drawing |
|
| Width | 17.7 mm |
| Height | 45 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Flammability rating according to UL 94 | V0 |
| Mechanical data | |
| Open side panel | No |
| Direction of action | Line-Line & Line-Earth Ground |
| Surge protection fault message | none |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Mounting type | on base element |
