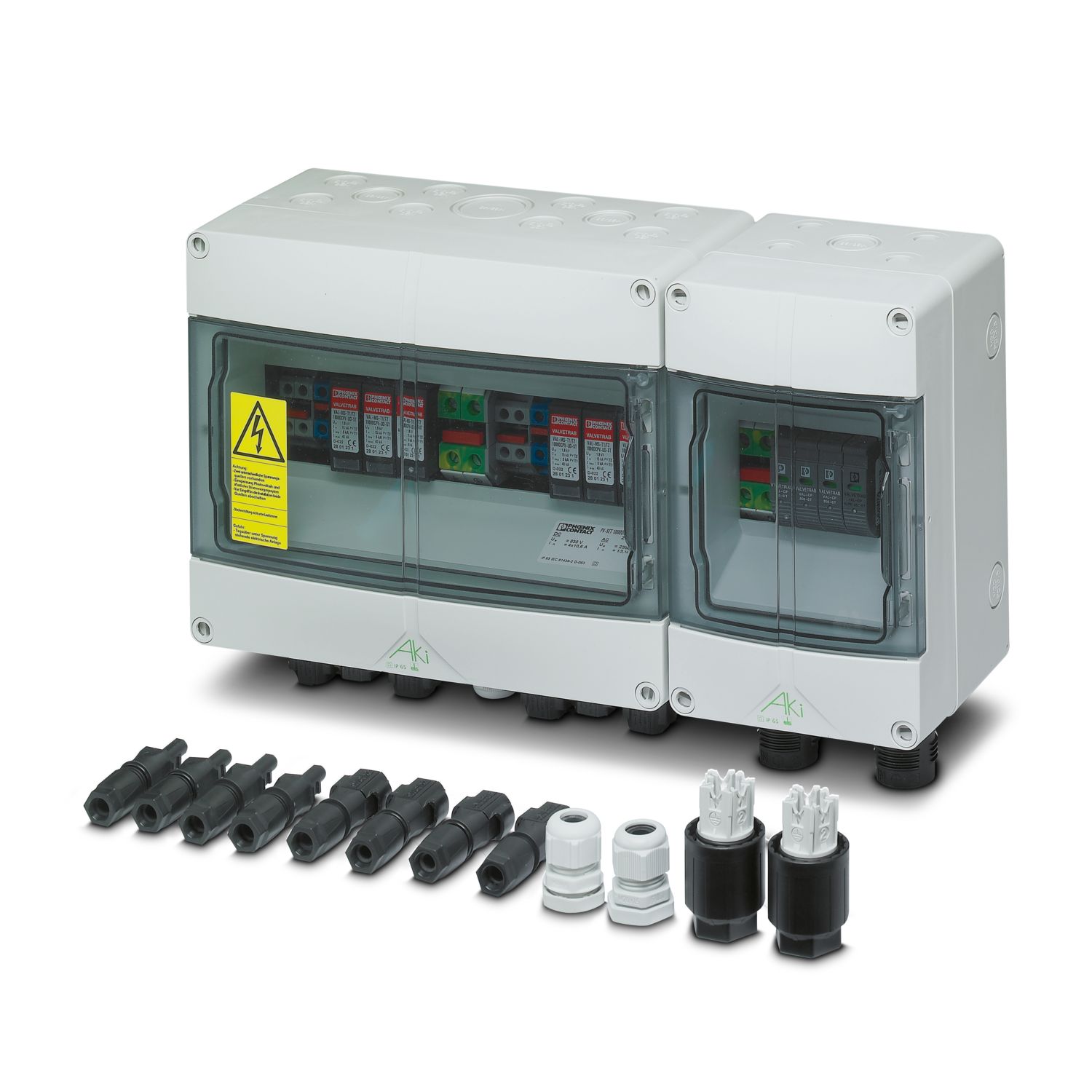

PV-SET 1000DC-SC/AC-3P-QPD
-
Surge protection device set
2801604
Surge protection in IP65 housing for the AC and DC side of an inverter for four-string photovoltaic systems up to 1000 V DC, DC connection via SUNCLIX plug/socket, AC connection via QUICKON nut.
Product details
| IEC test classification | PV T1 |
| PV T2 | |
| Type | Installation housing |
| Surge protection fault message | Optical, remote indicator contact |
| Set comprises | 1774674 PV-CF-S 2,5-6 (+) |
| 1774687 PV-CM-S 2,5-6 (-) | |
| Insulation characteristics | |
| Protection class | II |
| Overvoltage category | III |
| Pollution degree | 2 |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Nominal voltage UN | 230 V AC (TT or TNS network) |
| Indicator/remote signaling | |
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact, 1-pos. |
| Maximum operating voltage Umax. AC | 250 V AC |
| Maximum operating voltage Umax DC | 125 V DC |
| Max. operating current Imax | 1 A AC (inductive) |
| 1 A AC (ohmic) | |
| 30 mA DC (inductive) | |
| 200 mA DC (ohmic) | |
| Remote fault indicator contact | |
| Connection method | MC 1,5/3 |
| Screw thread | M2 |
| Tightening torque, min | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
| Width | 377 mm |
| Height | 200 mm |
| Depth | 122 mm |
| Horizontal pitch | 17 Div. |
| Flammability rating according to UL 94 | V2 (Gehäuse / Deckel) |
| V0 (Steckverbinder) | |
| Cover material | Polycarbonate, transparent |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Connector material | PA |

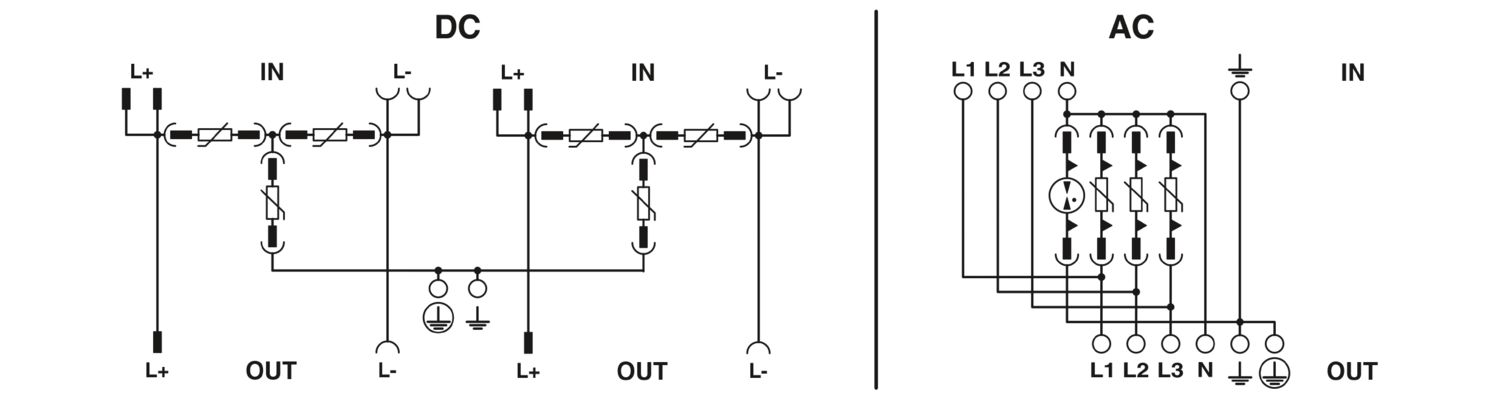

| Direction of action | (L+)-PE & (L-)-PE & (L+)-(L-) |
| 3L-N & N-PE | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC (L-N) | 350 V AC (AC unit) |
| Maximum continuous operating voltage UC (N-PE) | 264 V AC (AC unit) |
| Protective conductor current IPE | ≤ 1 µA (AC) |
| ≤ 20 µA (DC) | |
| Standby power consumption PC | ≤ 25 mVA (DC) |
| ≤ 3.5 mW (AC) | |
| Nominal discharge current In (8/20) µs | 15 kA (DC) |
| 20 kA (AC) | |
| Nominal discharge current In (8/20) µs (L-N) | 20 kA (AC) |
| 60 kA (all channels) | |
| Nominal discharge current In (8/20) µs (N-PE) | 20 kA (AC) |
| Maximum discharge current Imax (8/20) µs | 40 kA (DC) |
| 40 kA (AC) | |
| Maximum discharge current Imax (8/20) µs (L-N) | 120 kA (all channels) |
| Maximum discharge current Imax (8/20) µs (N-PE) | 40 kA |
| Follow current interrupt rating Ifi (N-PE) | 100 A |
| Voltage protection level Up (L-N) | ≤ 1.5 kV |
| Voltage protection level Up (N-PE) | ≤ 1.5 kV |
| Voltage protection level Up (L+) - (L-) | ≤ 3.5 kV |
| Voltage protection level Up (L+/L-) - PE | ≤ 3.5 kV |
| Response time tA | ≤ 25 ns (DC) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. backup fuse with V-type through wiring | 40 A (gL/gG) |
| Max. backup fuse with branch wiring | 125 A (gL/gG) |
| PV protective circuit AC side | |
| Rated operating voltage Ue | 230 V AC (400 V AC) |
| Rated frequency fn | 50 Hz (60 Hz) |
| Rated voltage Un | 230 V AC (400 V AC, TT or TNS network) |
| Rated surge voltage resistance Uimp | 4 kV |
| Rated current IN | 13.1 A AC |
| Protective circuit DC voltage side (DC) | |
| Rated surge voltage resistance Uimp | 8 kV |
| Short-circuit current ISCSTC | 4x 8.5 A (per string) |
| Open circuit voltage UOCSTC | 830 V DC (Solar generator) |
| Maximum discharge current Imax (8/20) µs | 40 kA (DC) |
| 40 kA (AC) | |
| Response time tA | ≤ 25 ns (DC) |
| Recommended backup fuse maximum | DC, not required |
| Max. backup fuse with V-type through wiring | 40 A (gL/gG) |
| Max. backup fuse with branch wiring | 125 A (gL/gG) |
| Nominal discharge current In (8/20) µs | 15 kA (DC) |
| 20 kA (AC) | |
| Protective conductor current IPE | ≤ 1 µA (AC) |
| ≤ 20 µA (DC) | |
| Voltage protection level Up (L+) - (L-) | ≤ 3.5 kV |
| Voltage protection level Up (L+/L-) - PE | ≤ 3.5 kV |
| Standby power consumption PC | ≤ 25 mVA (DC) |
| ≤ 3.5 mW (AC) | |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP65 | |
| Impact strength | IK08 |
| Ambient conditions | A, B |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Air clearances and creepage distances | |
| Standards/regulations | EN 50539-11 / DIN VDE 0110-1 / IEC 60664-1 / IEC 61643-1 |
| Standards/specifications | IEC 61439-2 |
| Note | 2011 |
| Standards/specifications | EN 61439-2 |
| Note | 2011 |
| Standards/specifications | EN 50539-11 |
| Note | DC surge protection |
| Standards/specifications | EN 61643-11 |
| Note | AC surge protection |
| Mounting type | Surface/Panel mounting |
| Item number | 2801604 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Note | Made to order (non-returnable) |
| Sales key | ***** |
| Product key | DTHDAA |
| GTIN | 4046356872638 |
| Weight per piece (including packing) | 4,780 g |
| Weight per piece (excluding packing) | 4,780 g |
| Customs tariff number | 85363010 |
| Country of origin | DE |
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
