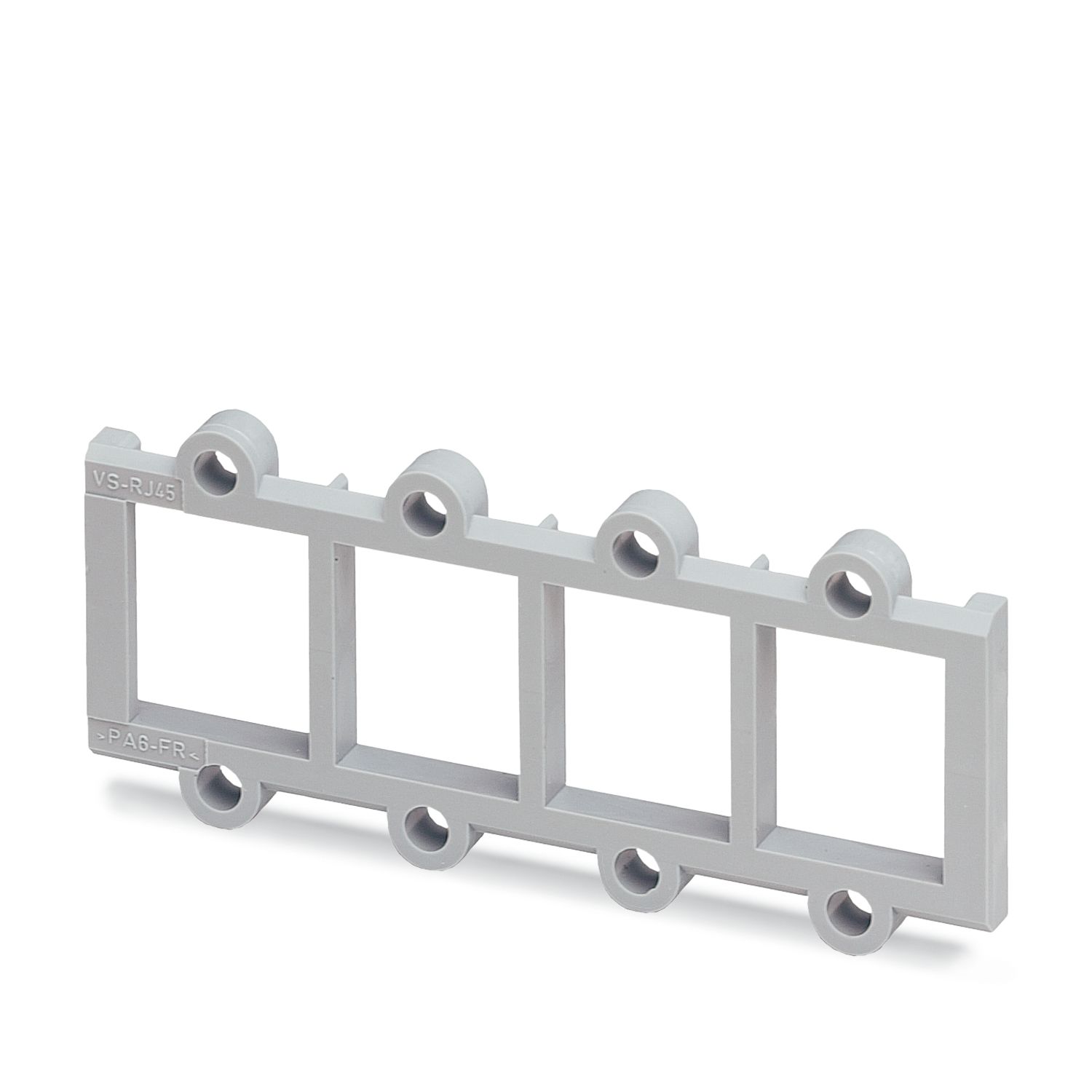

VS-08-A-RJ45/LP-4-IP 20
-
Panel-mount frame
1688667
RJ45 panel mounting frame, 4x, IP20, for socket inserts for PCB connection, without mounting screws
Product details
| Product type | Panel-mount frame |
| Type | RJ45 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Number of slots | 4 |
| Type | RJ45 |

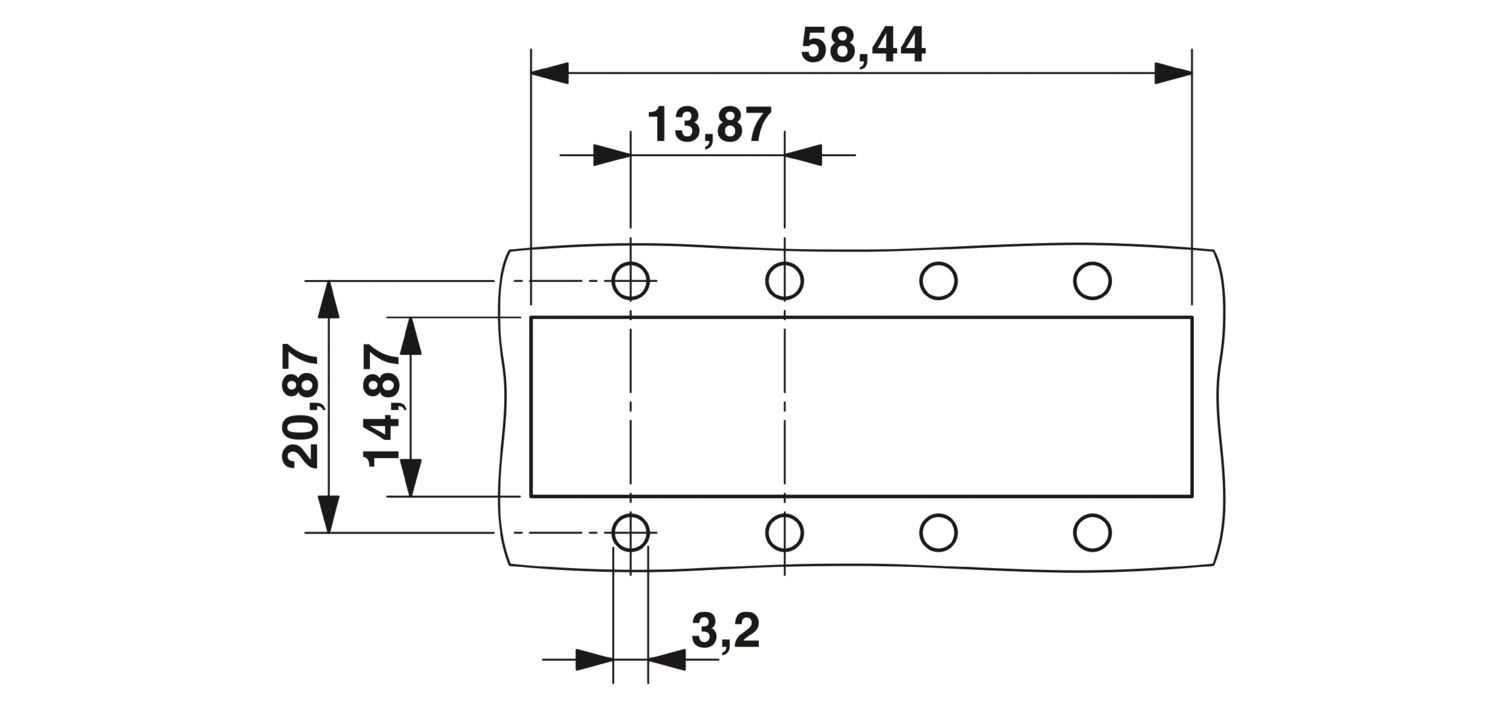

| Dimensional drawing |
|
| Width | 60 mm |
| Height | 26.5 mm |
| Depth | 3.6 mm |
| Color | gray |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | Plastic |
| Housing surface material | PA, light gray |
| Contact surface material | Au/Ni |
| Contact carrier material | Polyester GF |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Mounting type | Front mounting |
