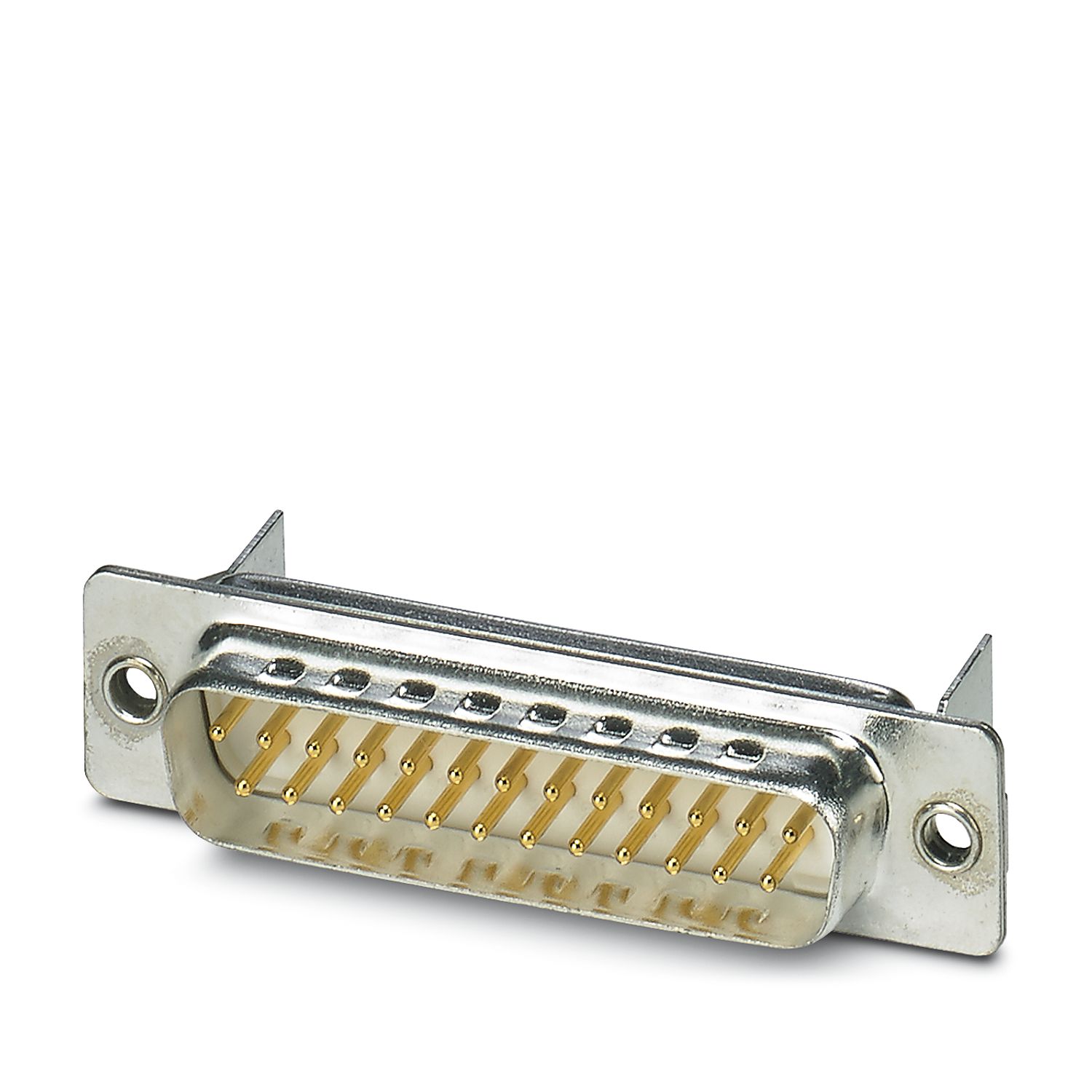

VS-25-ST-DSUB-LH-B - D-SUB contact insert

1654824

D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact pin, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-25-...

Product type	Contact insert
Type	D-SUB
Number of positions	25
Connection profile	D-SUB 25
Type	Male
Shielded	no
Insulation characteristics
Overvoltage category	III
Degree of pollution	2

Rated voltage in acc. with IEC 61076-2-101	400 V
Rated voltage (III/3)	125 V
Rated surge voltage	1 kV
Rated current	5 A (at 20 °C)
Test voltage	1200 V
Transmission medium	Copper

Connection method	PCB connection

Width	53 mm
Height	12.5 mm
Length	14 mm

Flammability rating according to UL 94	V0
Housing material	Steel, tin-plated
Housing surface material	tin-plated
Contact material	Copper alloy
Contact surface material	Au

Mechanical data
Insertion/withdrawal cycles	≥ 200
Insertion force per signal contact	≤ 3.40 N

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-55 °C ... 125 °C

Mounting type	Hole and solder metal plate

Item number	1654824
Packing unit	25 pc
Minimum order quantity	25 pc
Sales key	0227*
Product key	ABNCAA
Catalog page	Page 211 (C-2-2013)
GTIN	4017918989217
Weight per piece (including packing)	16.134 g
Weight per piece (excluding packing)	14.11 g
Customs tariff number	85366990
Country of origin	DE

Compatible products

Accessories

Your advantages

D-SUB 25 connection

Easy assembly

Direct PCB connection

Compatible with IP67 panel-mount frame

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	24f07eb3-14c2-49c4-b0f8-24140694e10e

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-25-ST-DSUB-LH-B - D-SUB contact insert

1654824

Product details

ECLASS

ETIM

UNSPSC

UL Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

VS-25-ST-DSUB-LH-B - D-SUB contact insert 1654824

Product details

ECLASS

ETIM

UNSPSC

Compatible products

CUC-DST-GPME-S/DSSC25 - D-SUB sleeve housings 1419719

CUC-DST-GPME-A/DSSC25 - D-SUB sleeve housings 1419721

CUC-DST-GZNI-S/DSSC25 - D-SUB sleeve housings 1419727

CUC-DST-GZNI-A/DSSC25 - D-SUB sleeve housings 1419728

VS-25-A - Panel-mount frame 1689750

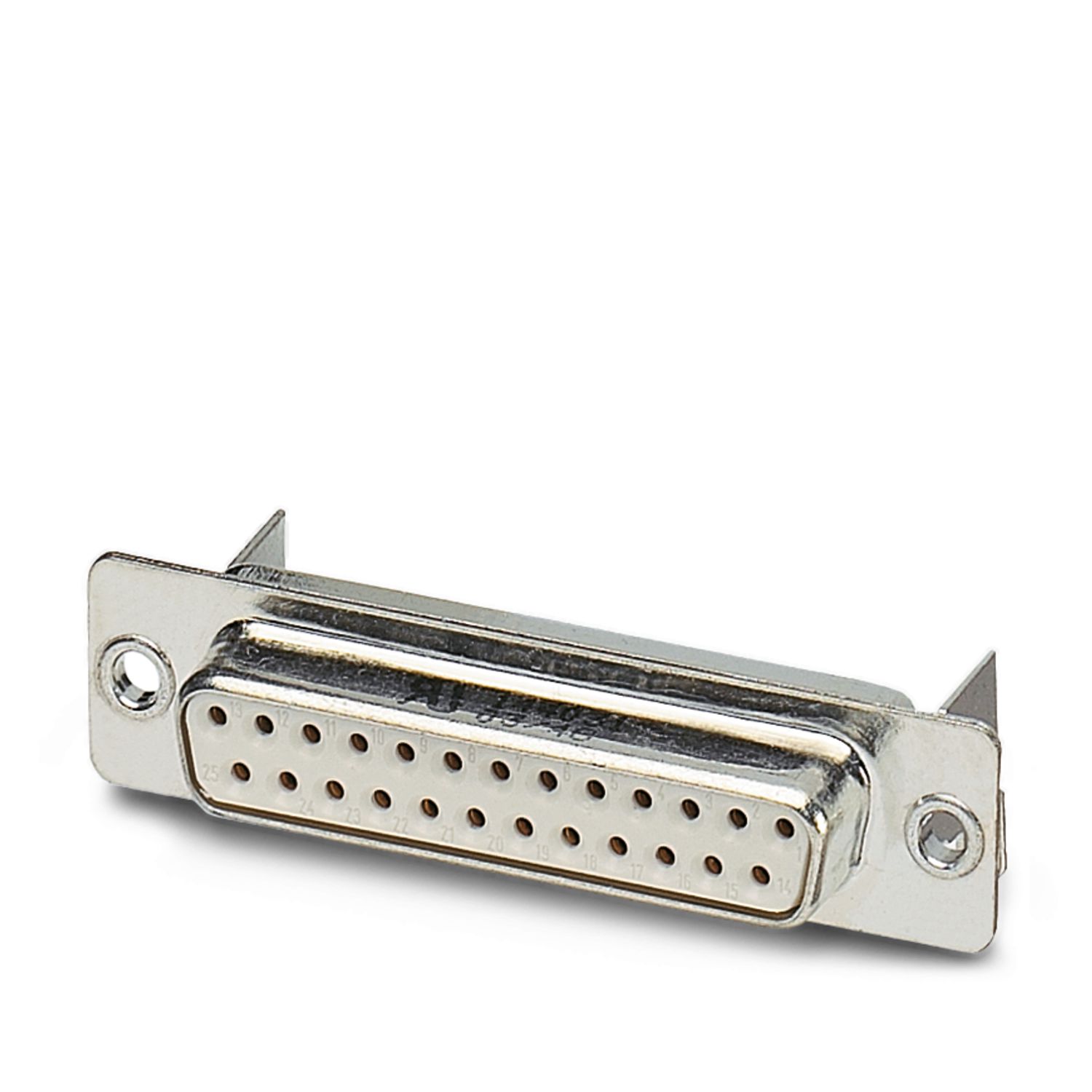

VS-25-BU-DSUB-LH-B - D-SUB contact insert 1654837
