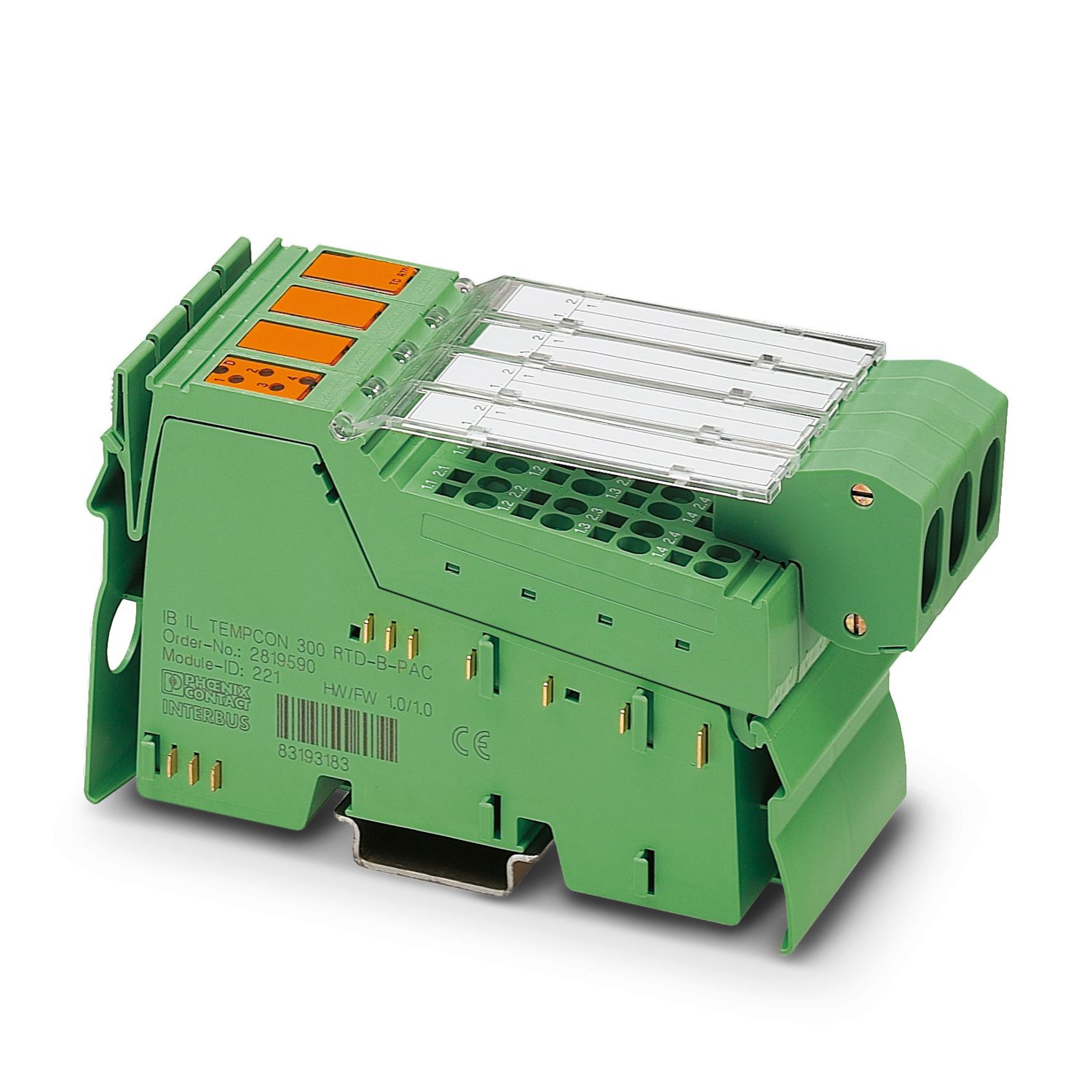

IB IL TEMPCON RTD-PAC
-
Inline function terminal
2861771
Inline temperature regulators, complete with accessories (connector and labeling field), 6 inputs for resistance thermometers, 6 outputs, 24 V DC, 3-wire connection method
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 48.8 mm |
| Height | 136.8 mm |
| Depth | 71.5 mm |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Configuration interface | |
| Connection method | V.24 |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 02 |
| Length code (dec) | 02 |
| Process data channel | 32 bit |
| Input address area | 4 Byte |
| Output address area | 4 Byte |
| Register length | 32 bit |
| Required parameter data | 1 Byte |
| Required configuration data | 5 Byte |
| Output voltage | 24 V DC |
| Output current | 70 mA |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| No. of channels | 6 |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min |
| 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min | |
| 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | |
| Analog inputs/bus logics 500 V AC 50 Hz 1 min | |
| Analog inputs / 24 V supply (I/O) 500 V AC 50 Hz 1 min | |
| Analog inputs/functional ground 500 V AC 50 Hz 1 min | |
| Supply | |
| Supply voltage | 24 V DC |
| Communications power UL | 7.5 V DC |
| Max. current consumption | 4 A |
| Typical current consumption | 250 mA |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Mounting type | DIN rail mounting |
Your advantages
6 analog inputs for Pt 100 according to DIN EN 60751
6 outputs, 24 V DC / 70 mA
Can be configured as a 2-step controller, 3-step controller, motor step controller or signaling device (threshold value switch)
Self-tuning
Heating current and closed-loop control circuit monitoring
Configuration via engineering tool (configuration software)
