IB IL 230 PWR IN/F-D-PAC
-
Inline terminal
2878971

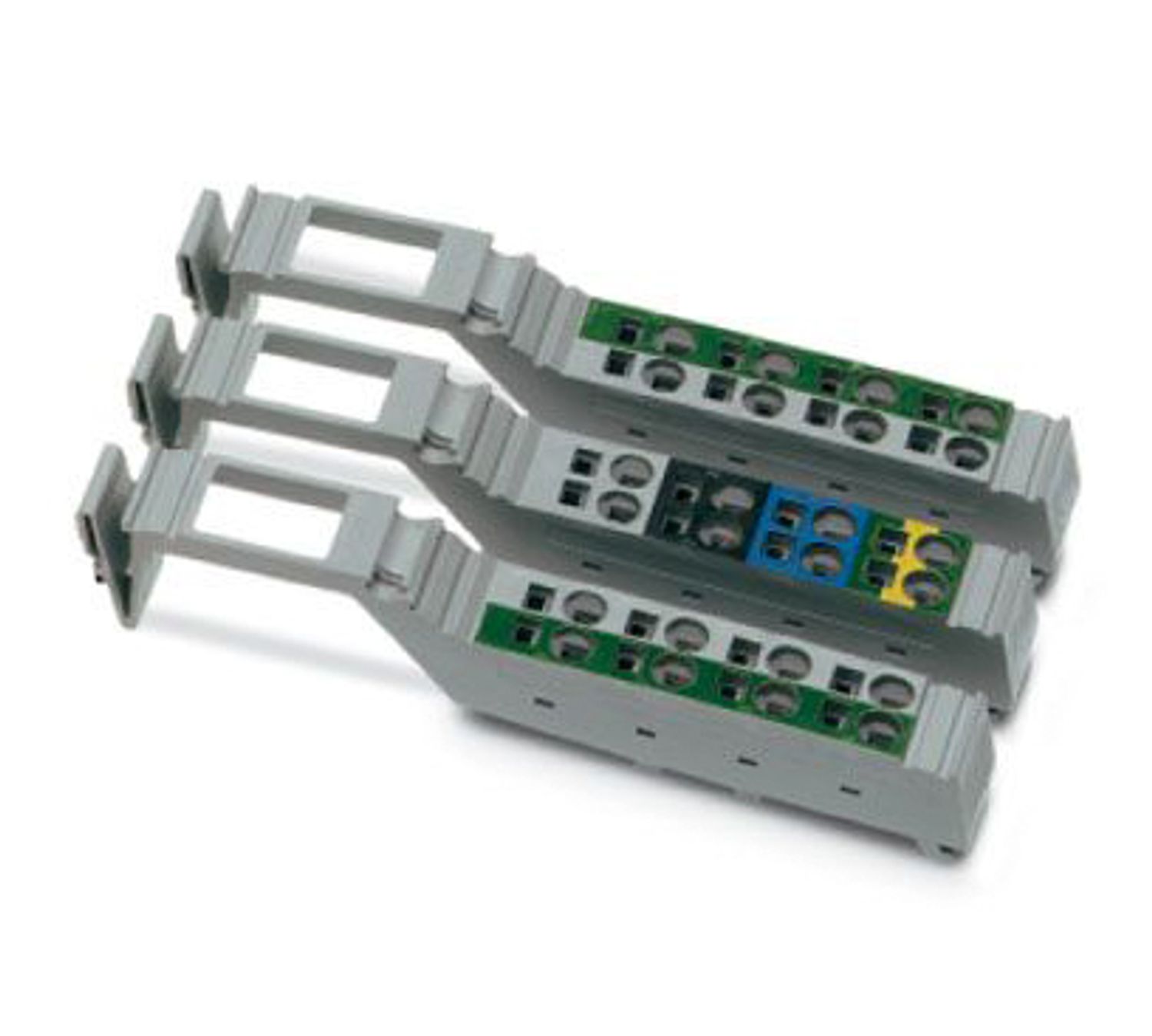

Inline power terminal, complete with accessories (connector and labeling field), 230 V AC, with fuse and diagnostics
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 36.6 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Color | gray |
| Inline local bus | |
| Number of interfaces | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Module | |
| ID code (dec.) | 190 |
| ID code (hex) | BE |
| Length code (hex) | C2 |
| Length code (dec) | 194 |
| Process data channel | 2 bit |
| Input address area | 2 bit |
| Output address area | 0 bit |
| Register length | 2 bit |
| Required parameter data | 1 Byte |
| Required configuration data | 4 Byte |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Inline | |
| Insulation characteristics | |
| Protection class | I (IEC 61140, EN 61140, VDE 0140-1) |
| Test section | 5 V supply, incoming remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min |
| 5 V supply, outgoing remote bus/7.5 V supply (bus logics) 500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logic) / peripheral range 230 V AC 2500 V AC 50 Hz 1 min | |
| 7.5 V supply (bus logic) / peripheral range 230 V AC (routine test) 1200 V AC 50 Hz 1 min | |
| Peripheral range 230 V AC / PE 500 V AC 50 Hz 1 min | |
| Output / Phase 500 V AC 50 Hz 1 min | |
| Supply | |
| I/O voltage | 230 V AC |
| I/O voltage range | 207 V AC ... 253 V AC (including all tolerances, including ripple) |
| Residual ripple | ± 23 V |
| Max. current consumption | 8 A |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 25 mA |
| Potentials: I/O supply | |
| Supply voltage | 230 V AC (via Inline connector) |
| Supply voltage range | 207 V AC ... 253 V AC |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Mounting type | DIN rail mounting |
Your advantages
Supplying the L phase (230 V AC)
L phase protected by an internal fuse
Diagnostic and status indicators
