HC-ADV-B06-CHFH-1TTM25-EEE
-
Housing
1408698

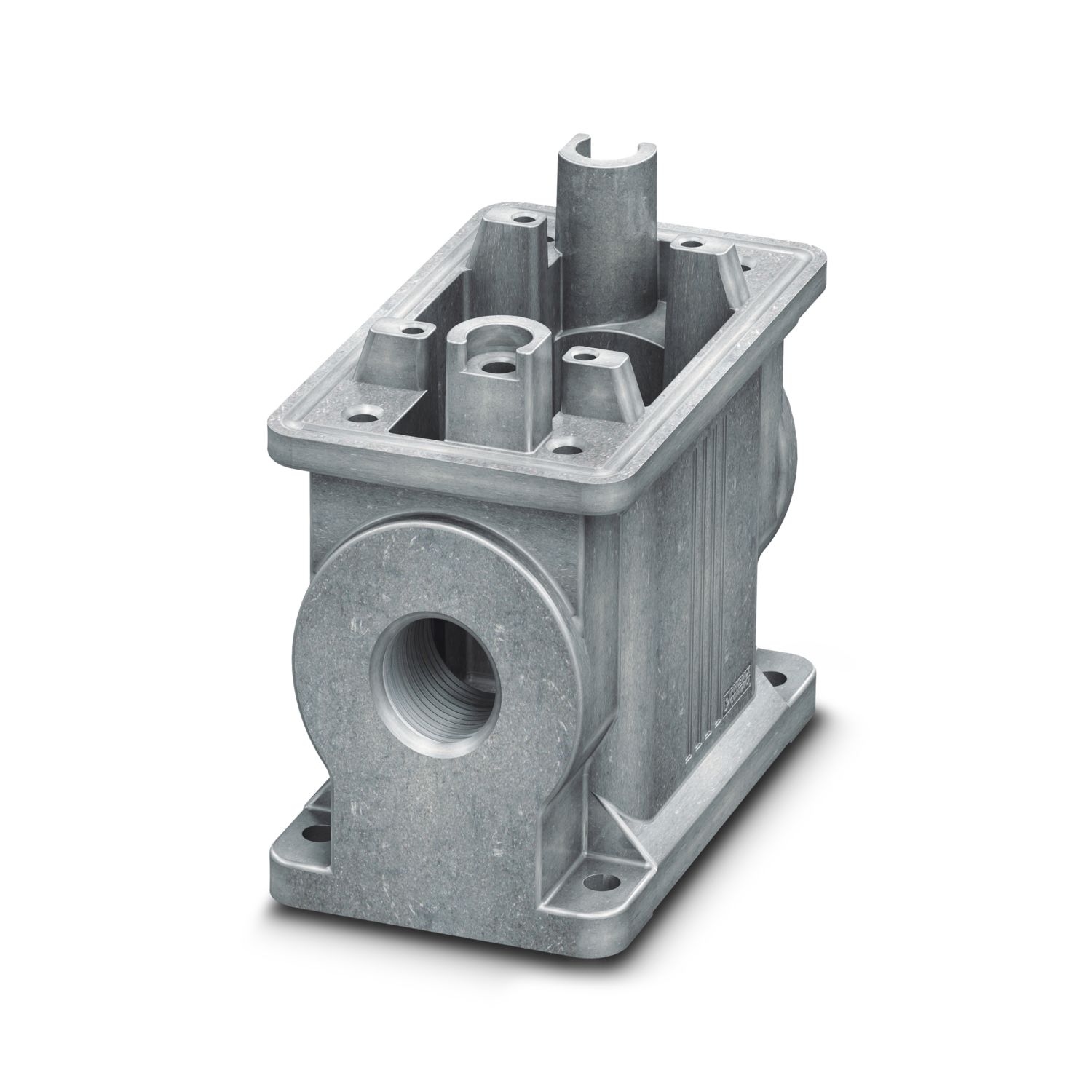

HEAVYCON ADVANCE B6 coupling housing, for M6 screw locking, salt-water-resistant aluminum, with 1 x M25 thread, straight cable outlet, without surface coating
Product details
| General | for contact inserts HC-B06, BB10, DD24, M |
| Product type | Housing with screw locking |
| Housing type | Coupling housings |
| Application | Offshore |
| Type | B6 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Fixing screws | M6 |
| Shielded | yes |
| Cable outlet | straight |
| Pg screw connection | none |

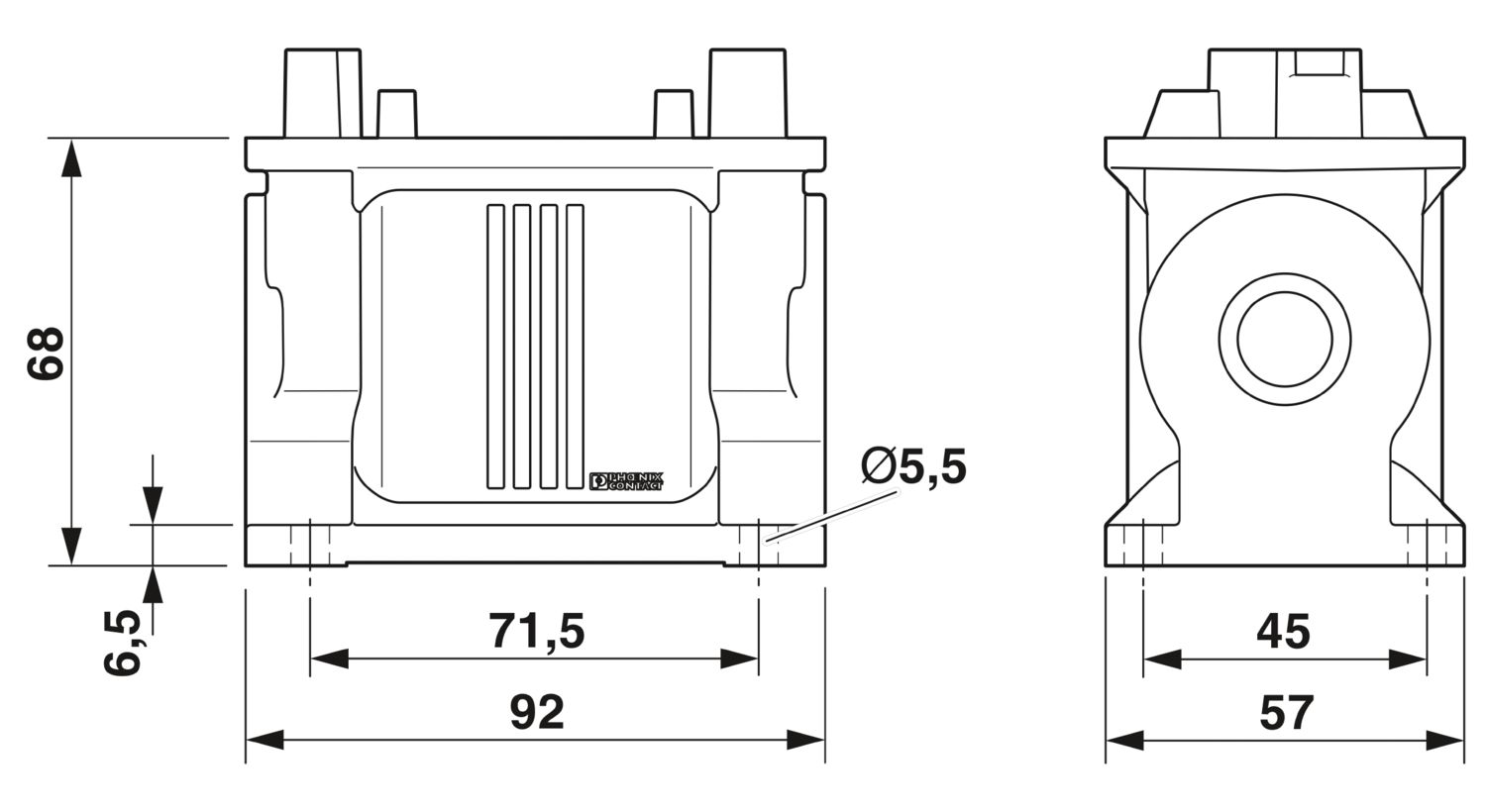

| Dimensional drawing |
|
| Width | 57 mm |
| Height | 68 mm |
| Length | 92 mm |
| Housing material | Die-cast aluminum, corrosion resistant |
| Housing surface material | uncoated |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (0.2 bar/24 h) | |
| IP69K | |
| Enclosure rating (NEMA) | 4 (NEMA 250) |
| 4X (NEMA 250) | |
| 6P (NEMA 250) | |
| 12 (NEMA 250) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Nut |
| Fixing screws | M6 |
