HC-EVO-B16-BWSC-PLRBK
-
Housing
1407647

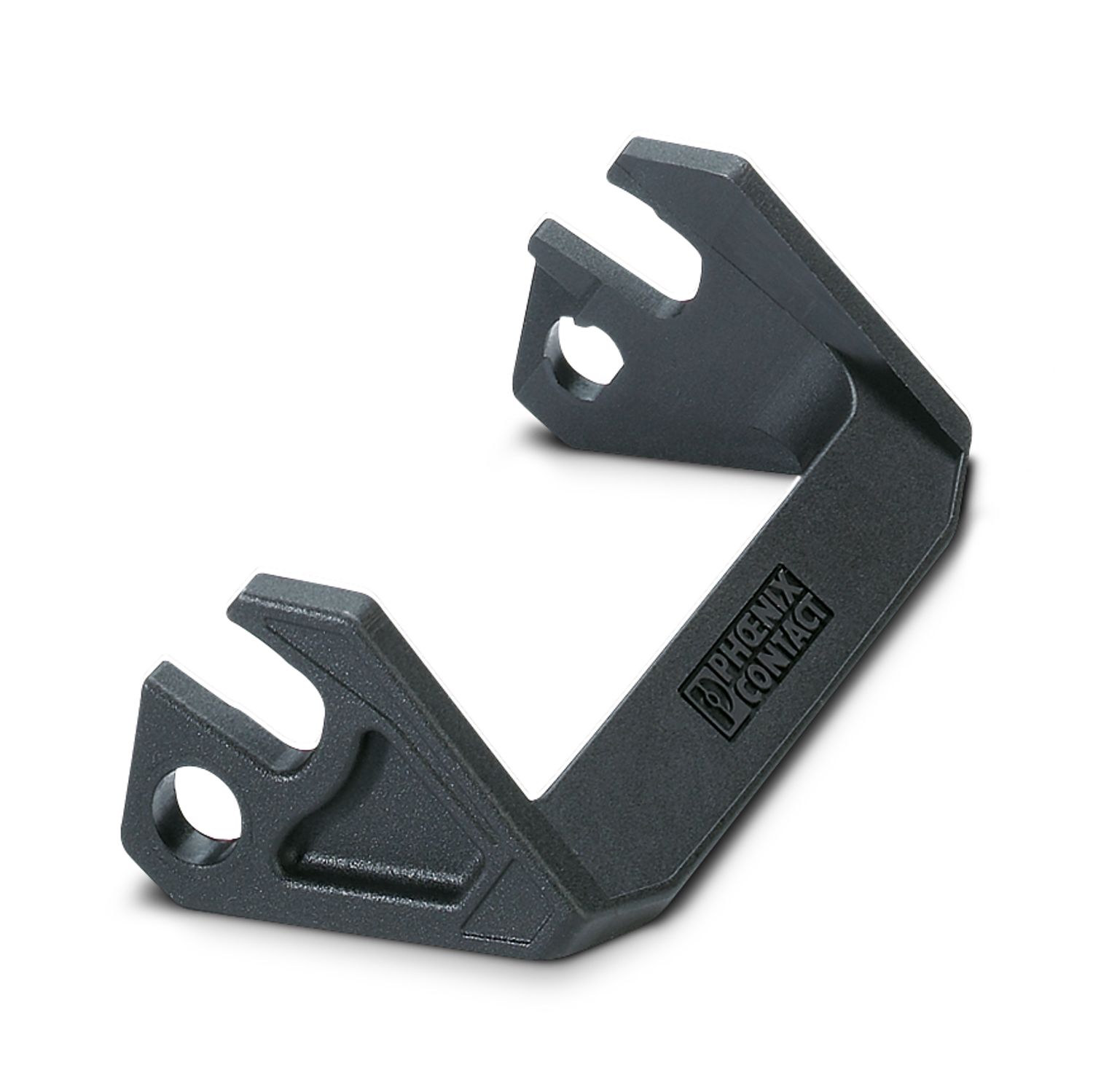

Panel mounting base B16, with single locking latch, material: PA 6.6-FR, protective cover material: PC, height: 30.5 mm, cable gland: none, protective cover: yes, Standard, with flat gasket
Product details
| General | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K, HV06-I-PR, HV 6-E...C |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Product family | HC-EVO-B |
| Application | Standard |
| Type | B16 |
| Protective cover | yes |
| Pg screw connection | none |

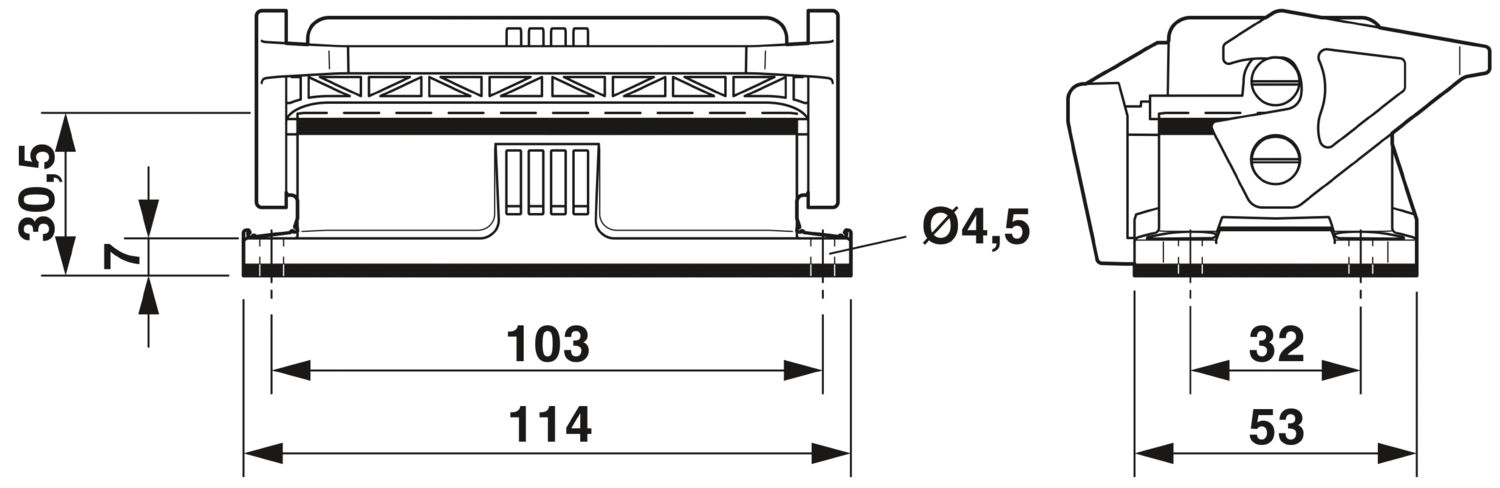

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 114 mm |
| Drill hole distance, horizontal | 103 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| V0 (Protective cover) | |
| Seal material | NBR |
| NBR | |
| Housing material | PA 6.6-FR |
| Material, protective cover | PC |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
| Assembly note | Not for D series terminal adapters |
| Not for HC-B 24-ADP-B..... adapter plates |
| Ambient conditions | |
| Degree of protection | IP66 (when plugged in or with locked protective cover) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Lower costs than metal version
Low weight
Lower risk of condensation
