HC-STA-D07-BWS-M25-EL-AL
-
Housing
1672265

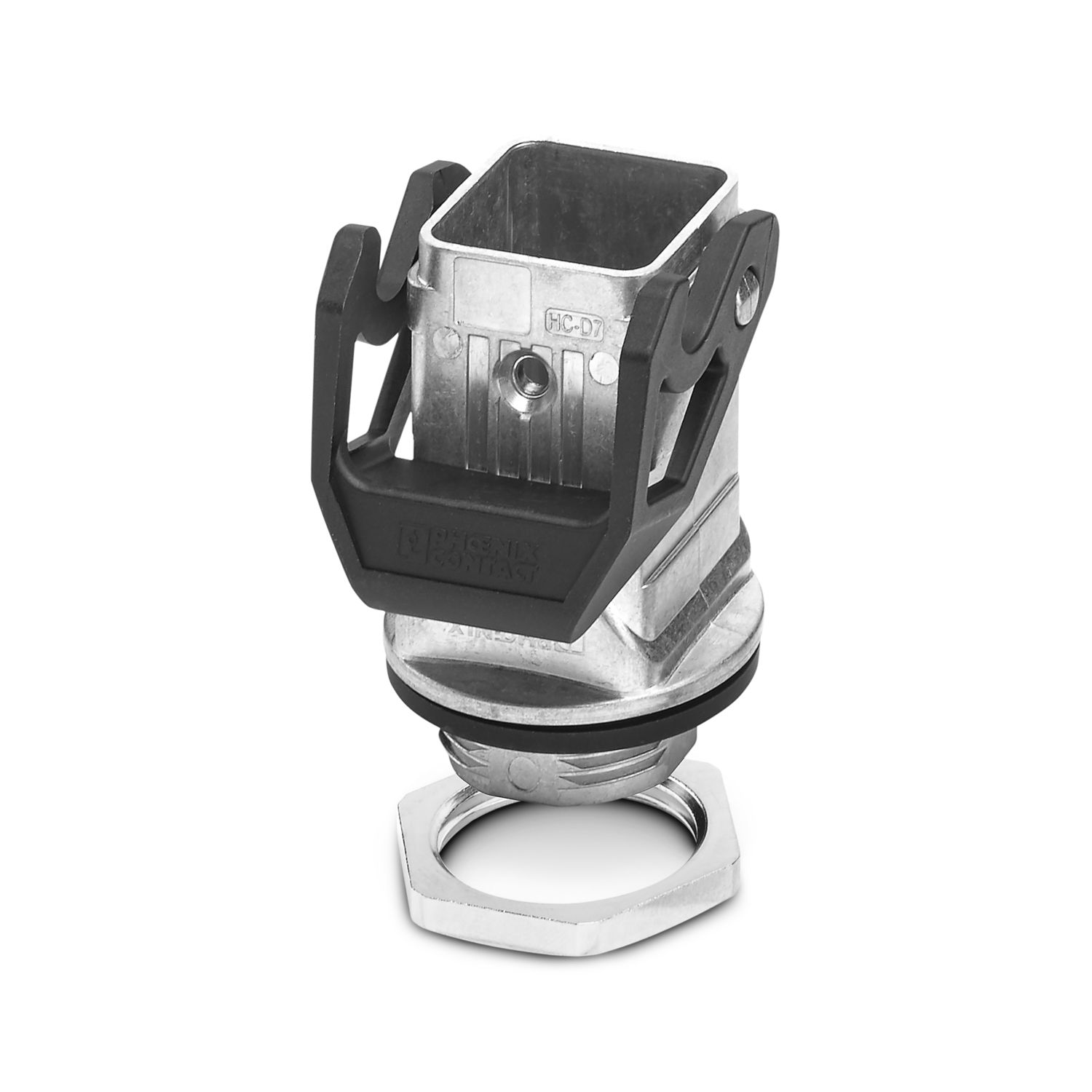

Screw-in housing D7, with single locking latch, material: Die-cast aluminum, salt water resistant, height: 49.5 mm, seal: yes, Standard
Product details
| General | for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12 |
| Product type | Housing with locking latch |
| Housing type | Screw-in housing |
| Application | Standard |
| Type | D7 |
| Seal present | yes |
| Shielded | no |

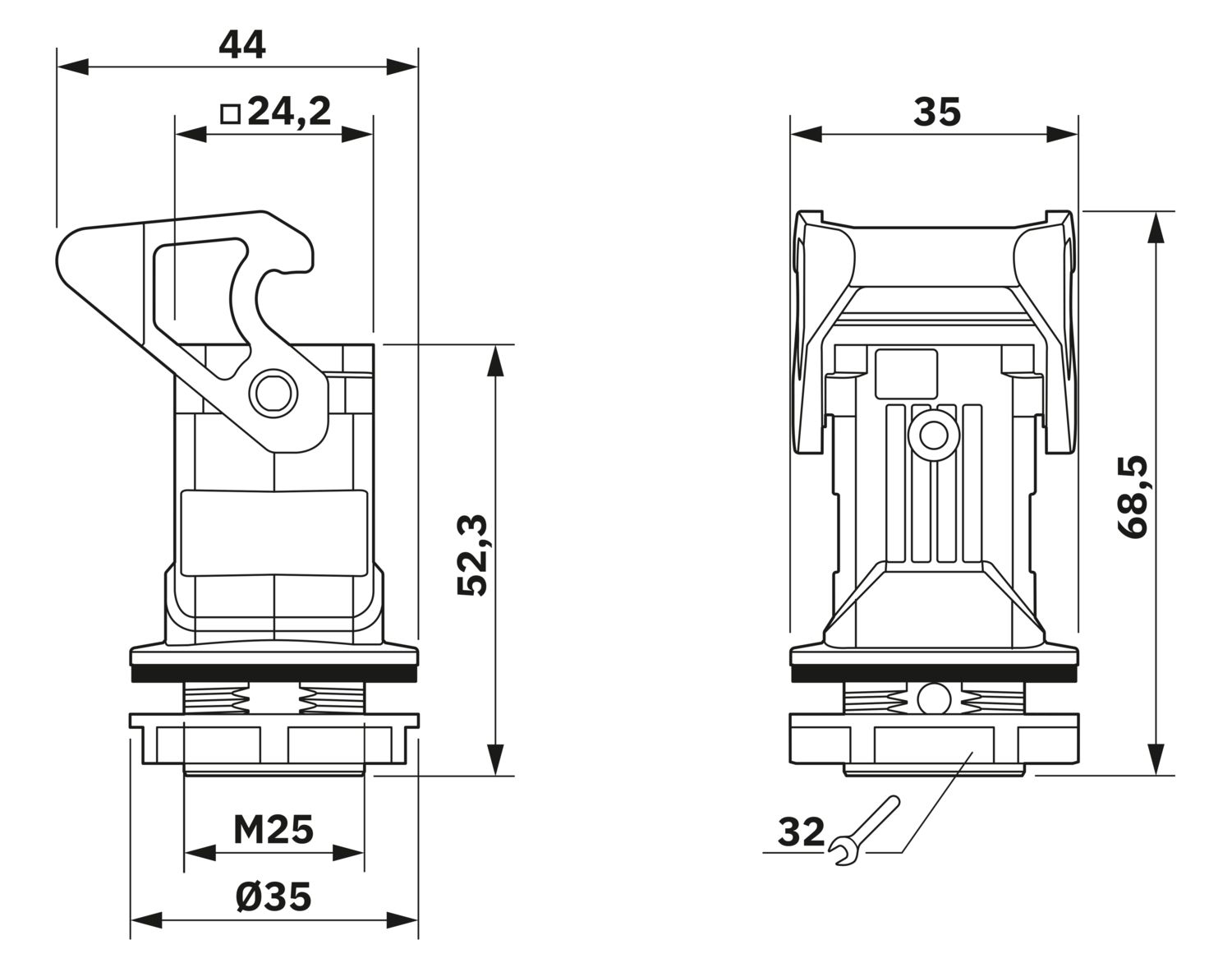

| Dimensional drawing |
|
| Height | 49.5 mm |
| Thread pitch | 1.5 mm |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR |
| Housing material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 7.5 Nm ... 10 Nm |
| Assembly note | To ensure anti-rotation protection of the housing, use the attached mounting cutout. Alternatively, you can use a consistently round panel cutout. However, this cutout cannot guarantee anti-rotation protection. |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Impact strength | IK06 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
