HC-DCC06-HHFD-1TGM50-PLBK
-
Housing
1724264
Sleeve housing DCC06, for double locking latch, material: PA 6, cable outlets: 1, straight, 1x M32, cable gland: with, Power supply in data centers
Product details
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Power supply in data centers |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Type | Tall design |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |

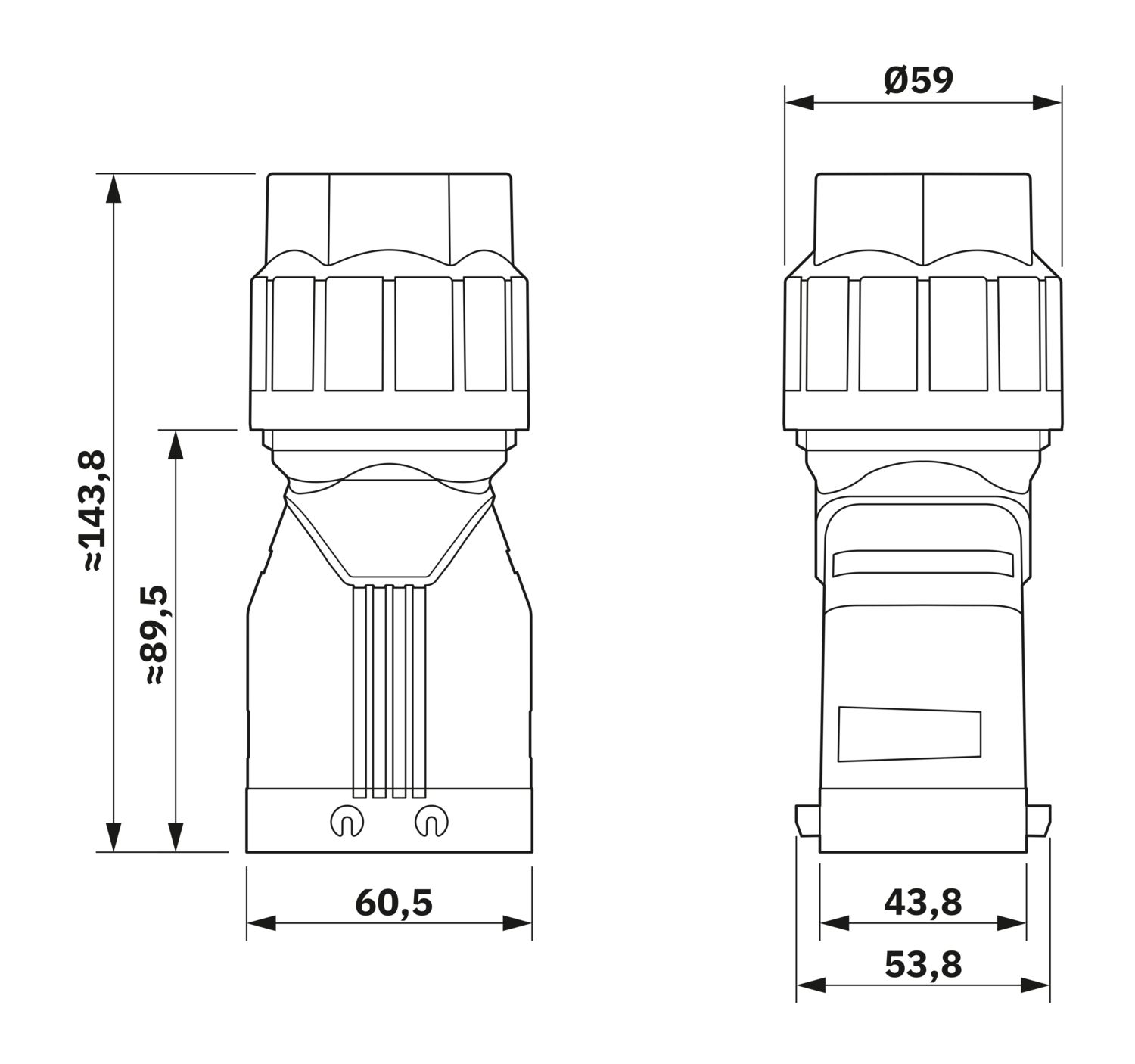

| Dimensional drawing |
|
| Clamping range of the strain relief clip | 21.00 mm ... 35.00 mm |
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | PA 6 |
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| External cable diameter | 21 mm ... 35 mm |
| External cable diameter | 21 mm ... 35 mm |
| Tightening torque | 7.5 Nm ... 7.5 Nm |
| Tightening torque contact carrier | 1.2 Nm |
| Assembly note | Connectors may only be actuated when there is no load/voltage. |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Lower costs than metal version
Low weight
