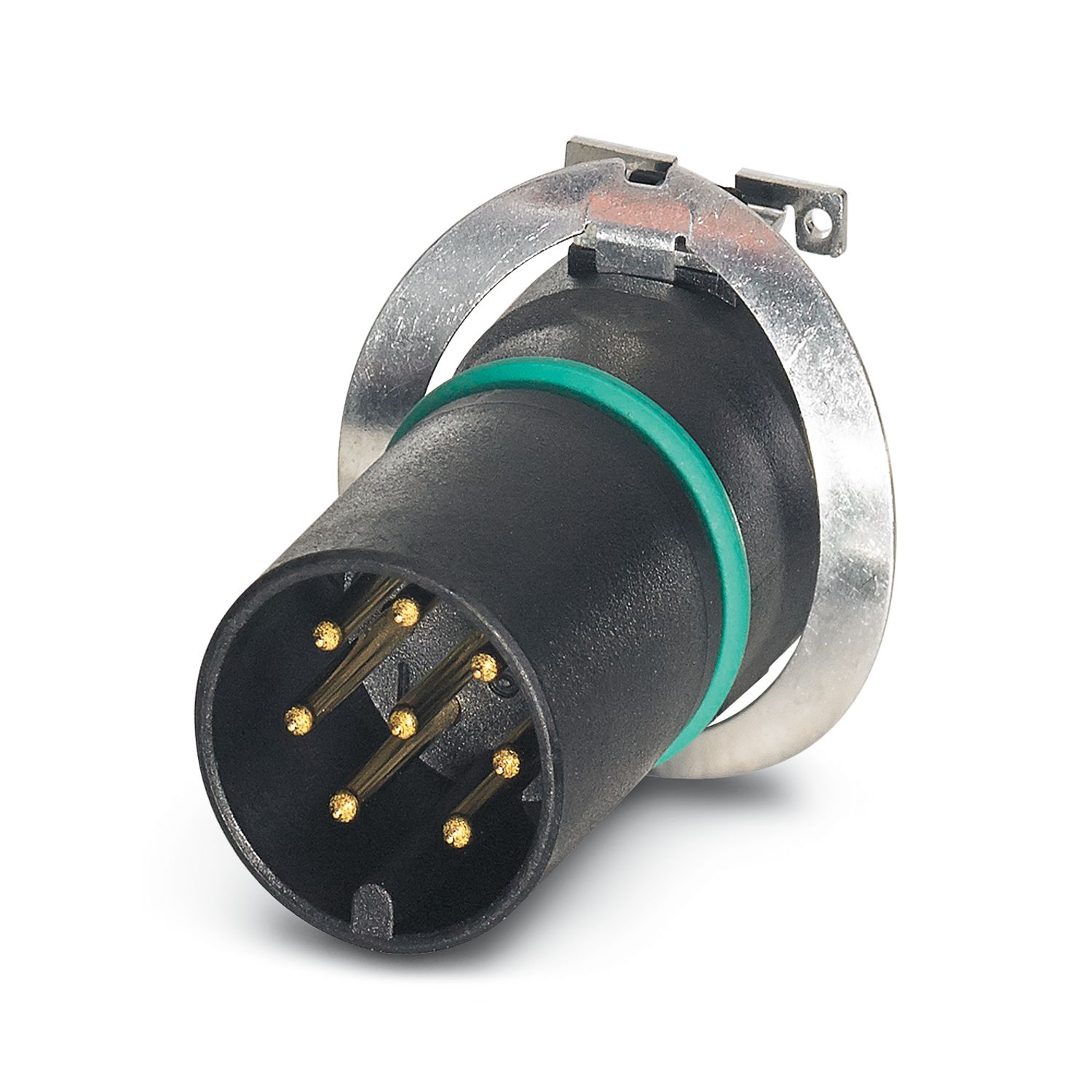

SACC-CIP-M12MS-8P SMD SH R32X - Contact carrier

1238959

Contact carrier, 8-position, Pin, straight, M12, coding: A, PCB mounting, SMD reflow, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)

Product details

Product type	Contact insert
Application	Signal
Number of positions	8
Seal present	yes
Shielded	yes
Coding	A
Thread type	M12
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	0.8 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	30 V
Nominal current I_N	2 A

Connection method	SMD reflow

Flammability rating according to UL 94	V0
Seal material	FKM
Contact material	CuZn
Contact surface material	Au
Contact carrier material	PA

Connection 1
Head design	Pin
Head cable outlet	straight
Head thread type	M12
Coding	A

Mechanical data
Insertion/withdrawal cycles	> 100

Ambient conditions
Degree of protection (when plugged in)	IP67 (correctly plugged in and locked)
Degree of protection	IP67 (correctly plugged in and locked)
	IP67
Ambient temperature (operation) (male connector/female connector)	-40 °C ... 105 °C (Plug / socket)
	-55 °C ... 105 °C (without mechanical actuation)
UL Type Rating	Type 4 (indoor use only)

Standard designation	M12 circular connector
Standards/specifications	according to IEC 61076-2-101

Mounting type	PCB mounting

Type of packaging	Belt
Delivery state	with assembly pad

Commercial data

Item number	1238959
Packing unit	100 pc
Minimum order quantity	100 pc
Sales key	*****
Product key	ABQBGB
GTIN	4063151460273
Weight per piece (including packing)	7.57 g
Weight per piece (excluding packing)	3.863 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	30 V	2 A

Environmental product compliance

Compatible products

Accessories

Your advantages

Reduced mounting costs thanks to two-piece device connector

Packaging available for automated pick and place assembly

All common pin assignments and codings available

Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate

Additional gasket for the device when not plugged in

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
