FIL-WM-3C-1E-30A-480AC
-
EMC filter
1335685

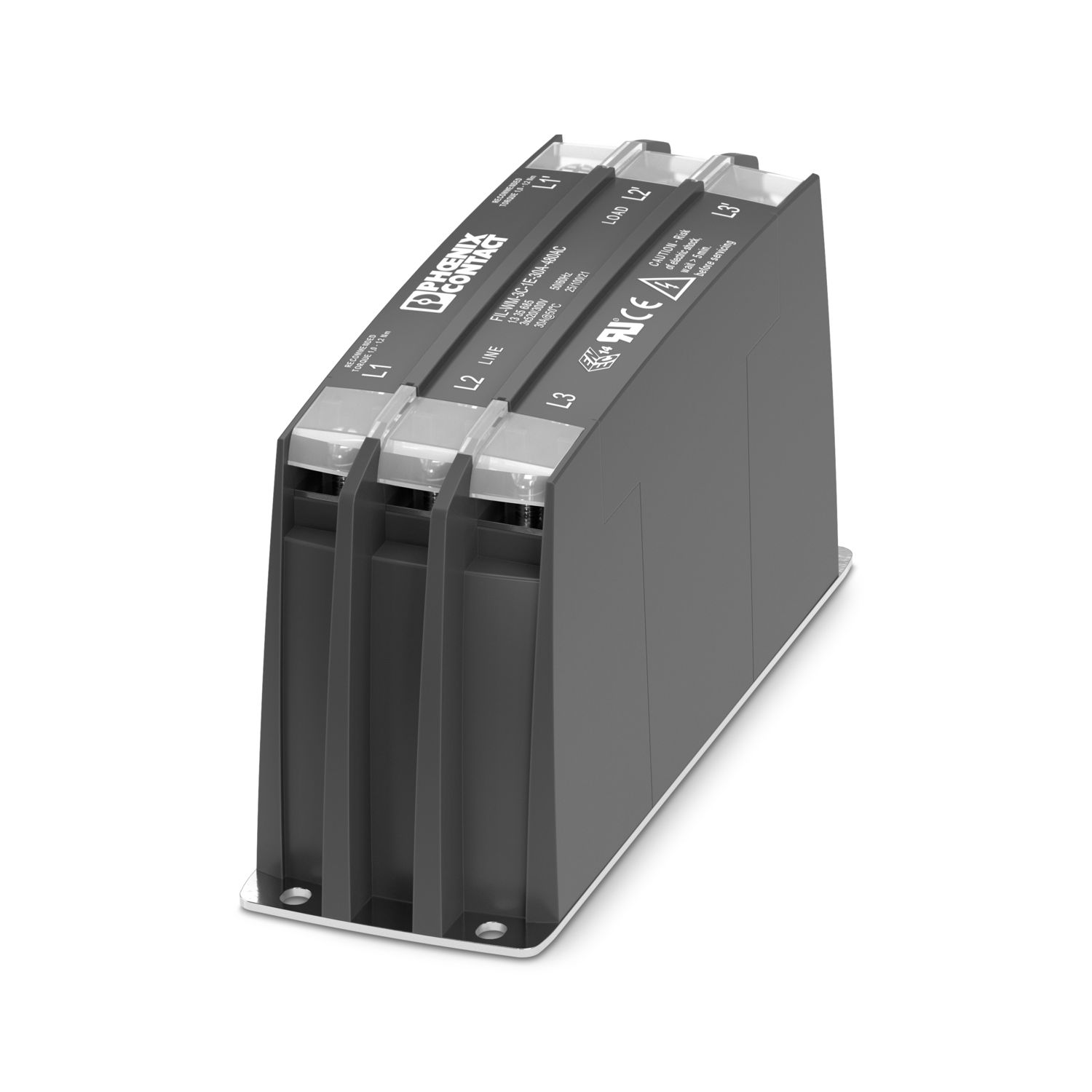

Three-phase EMI filter, universal product, screw connection, backplane mounting, rated current 30 A
Product details
| Product type | EMC filters |
| Type | DIN rail module, one-piece |
| Number of positions | 3 |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated voltage | 520 V AC (L-L) |
| 300 V AC (L-PE) |
| Connection method | Screw connection |
| Screw thread | M4 |
| Conductor cross section flexible | 8 mm² ... 1 mm² |
| Connection method | Screw connection |
| Screw thread | M4 |
| Dimensional drawing |
|
| Width | 50 mm |
| Height | 150 mm |
| Depth | 78 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Direction of action | L-L / L-PE |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated current | 30 A (40 °C) |
| Protective conductor current IPE | ≤ 0.4 mA |
| Input attenuation aE, sym. | > 80 dB (50 Ω / 1 MHz) |
| Input attenuation aE, asym. | > 40 dB (50 Ω / 1 MHz) |
| Capacity | 2x 3.3 µF (X2) |
| 2x 220 nF (Y2) | |
| Inductivity in series | 2x 0.6 mH (with current compensation) |
| Short-circuit current rating ISCCR | 100 kA |
| Max. required back-up fuse | 32 A (gR) |
| Filter data | |
| Discharge resistance | 680 kΩ () |
| 220 kΩ () | |
| Ambient conditions | |
| Degree of protection | IP00 |
| Ambient temperature (operation) | -25 °C ... 100 °C |
| Standards/specifications | IEC 60939-2 |
| Standards/specifications | EN 60939-2 |
| Standards/specifications | IEC 60664-1 |
| Mounting type | Panel mount |
