CK9,5-ED-25,00F AG
-
Crimp contact
1682084
Crimp contact, contact diameter: 9.5 mm, turned, Socket, contact material: Copper alloy, lead-free, contact surface: silver-plated, connection cross section: 25 mm2 ... 25 mm2, AWG 4 ... 4
Product details
| General | HC-M-...-70 contact carrier |
| Assembly note | The contacts are qualified for crimping dies in accordance with DIN 46235. Klauke, for example, offers the appropriate tool: Crimping dies from the D22 series are required for the EKM6022 battery-operated hydraulic crimping pliers. Due to the narrow crimping width of 5 mm, it is very important to make two compressions next to one another. For the EK12042 model, crimping dies from the HD13 series are required. Due to a wider crimping process, only one compression is required. |
| The quality of a crimp connection is determined by DIN EN 60352-2. |
| Product type | Crimp contact |
| Series | HC-M-...-70 |
| Application | Power |
| Type | Individual female contact |
| Contact material type | turned |
| Contact connection type | Socket |
| Connection technology | Crimp connection |
| Conductor cross section | 25 mm² ... 25 mm² |
| Connection cross section AWG | 4 ... 4 |
| Stripping length of the individual wire | 18.5 mm |
| Conductor cross section flexible | 25 mm² ... 25 mm² |
| Conductor cross section AWG | 4 ... 4 |
| Contact material | Copper alloy, lead-free |
| Contact surface material | silver-plated |

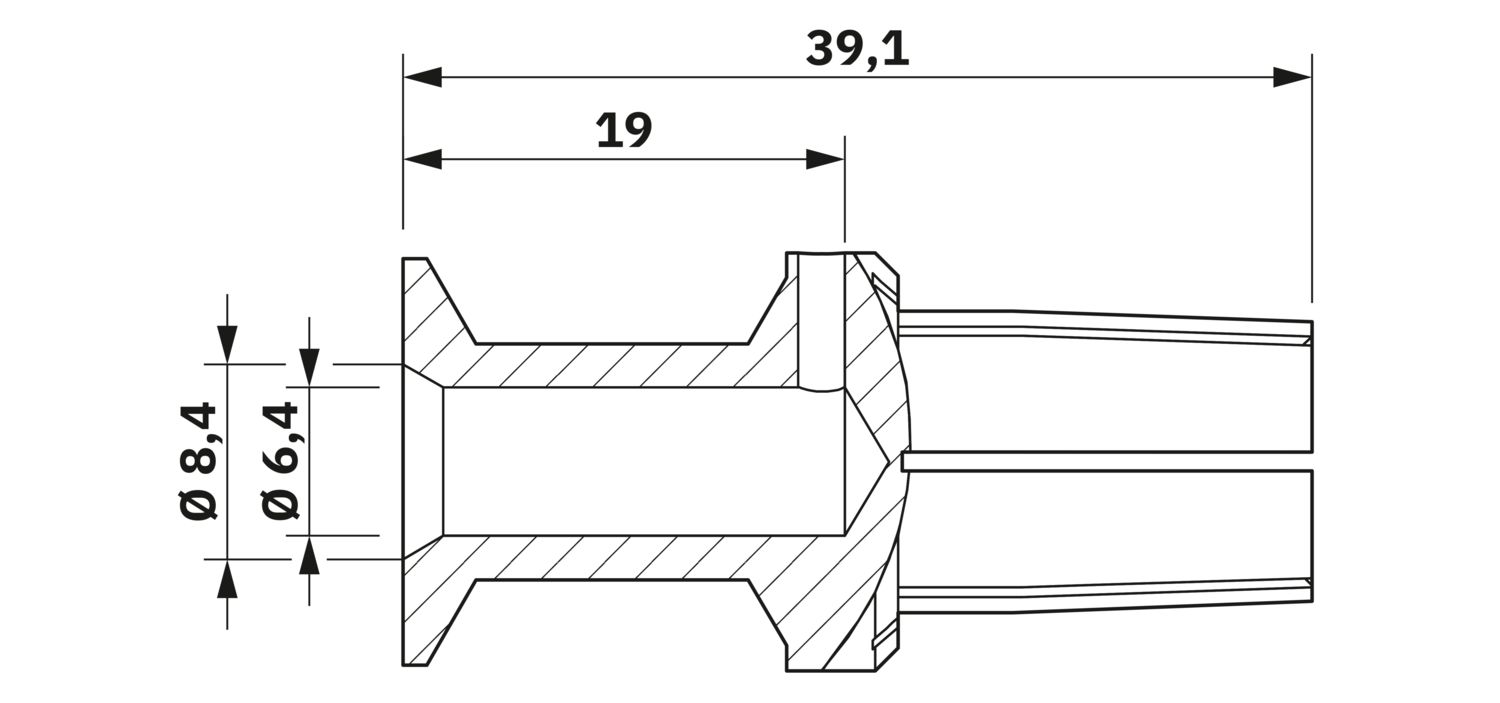

| Dimensional drawing |
|
| Length | 39.1 mm |
| Mechanical characteristics | |
| Contact diameter | 9.5 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
