HC-STA-B16PT-BWSC-LS-M25-ELCAL
-
Connector set
1416356
Connector set, number of positions: 16, connection method: Push-in connection, connection cross section: AWG 26- 14
Product details
| Product type | Connector set |
| Housing type | Complete housing |
| Series | HC-B |
| Application | Standard |
| Type | B16 |
| Number of positions | 16 |
| Connection profile | 16+PE |
| No. of cable outlets | 1 |
| Seal present | yes |
| Protective cover | yes |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 500 V |
| Rated surge voltage | 6 kV |
| Rated current | 16 A |
| Connection method | Push-in connection |
| Connection technology | Push-in connection |
| Conductor cross section | 0.14 mm² ... 2.5 mm² (with ferrule) |
| 0.14 mm² ... 2.5 mm² (with ferrule) | |
| Connection cross section AWG | 26 ... 14 |
| Stripping length | 8 mm ... 10 mm |

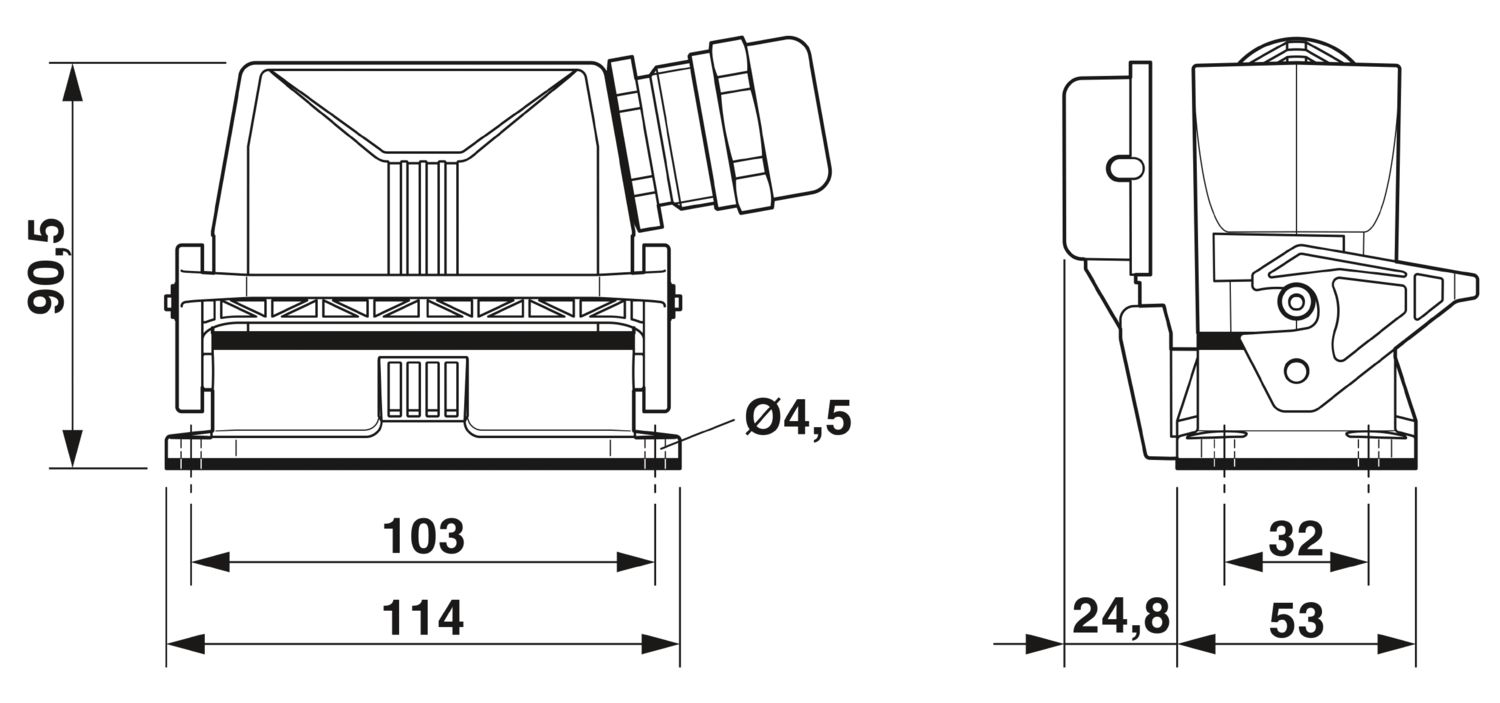

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 90.5 mm |
| Length | 114 mm |
| Drill hole distance, horizontal | 103 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
| Material Housing | Die-cast aluminum, saltwater-resistant |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Seal material Profile gasket | NBR |
| Seal material Flat gasket | NBR |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Locking latch material | PA |
| External cable diameter | 11 mm ... 17 mm |
| 14 mm ... 17 mm (for UL 514 B) |
| Mechanical data | |
| Locking type | Latch |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP67 | |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Mounting type | Screw mounting |
| Assembly note | Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles. |
| Connectors may only be operated when there is no load/the power is switched off. Can be used for solid wires and stranded wires with ferrule. |
