SACC-DSIV-M 8MS-4CON-L 90
-
Device connector rear mounting
1440096

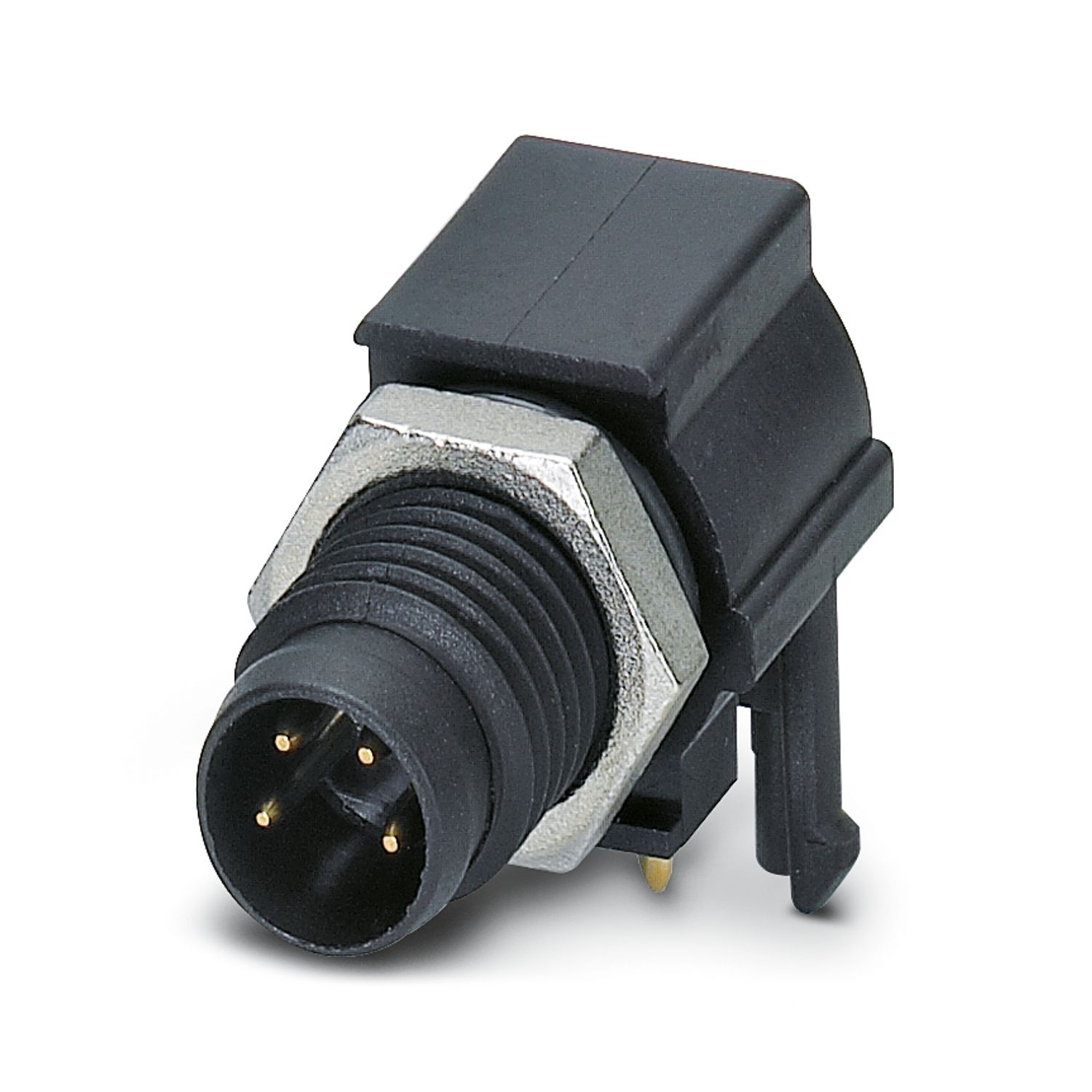

Device connector rear mounting, 4-position, Pin, angled, M8, coding: A, Rear mounting, M8 x 1, Wave soldering
Product details
| Mounting type | Rear mounting M8 x 1 With flat nut |
| Assembly note | With flat nut |
| Product type | Circular connectors (device side) |
| Number of positions | 4 |
| Shielded | no |
| Coding | A |
| Thread type | M8 |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Contact material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Brass, nickel-plated |
| Rated surge voltage | 1.5 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Conductor connection | |
| Connection method | Wave soldering |
| Contact connection type | Pin |
| Connection 1 | |
| Head design | Pin |
| Head cable outlet | angled |
| Head thread type | M8 |
| Coding | A |
| Ambient conditions | |
| Degree of protection | IP67 |
| IP67 | |
| Ambient temperature (operation) (male connector/female connector) | -25 °C ... 85 °C |
| Ambient temperature (operation) | -25 °C ... 85 °C |
| UL Type Rating | Type 4 (indoor use only) |
| Standard designation | M8 circular connector |
| Standards/specifications | according to IEC 61076-2-104 |
| Item number | 1440096 |
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Sales key | ***** |
| Product key | ABQJAA |
| GTIN | 4046356480888 |
| Weight per piece (including packing) | 4.63 g |
| Weight per piece (excluding packing) | 4.5 g |
| Customs tariff number | 85366990 |
| Country of origin | DE |
ECLASS
| ECLASS-13.0 | 27440110 |
ETIM
| ETIM 9.0 | EC003568 |
UNSPSC
| UNSPSC 21.0 | 39121400 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 6(c) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| SCIP | 32f01563-8ca8-4184-b00a-1266c5551fd0 |
Your advantages
Standard pin assignments and codings for signal transmission with a uniform design-in design
