Retainer for Vehicle Connector as parking position at charging stations for E-Mobility (EVSE)
EV-T2CCS-PARK
-
Charging connector holder
1624153
CHARX connect standard, CCS type 2, Charging connector holder, Accessories, Front mounting, housing: black, for vehicle charging connectors on charging stations (EVSE), IEC 62196-3, Item is not compatible with the HPC CCS type 2 charging cable from Phoenix Contact.
Product details
| Note on application | Item is not compatible with the HPC CCS type 2 charging cable from Phoenix Contact. |
| Product type | Charging connector holder |
| Product family | CHARX connect standard |
| Technology | Combined Charging System |
| Application | for vehicle charging connectors on charging stations (EVSE) |
| Type | Accessories |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
| Customer variations | On request |

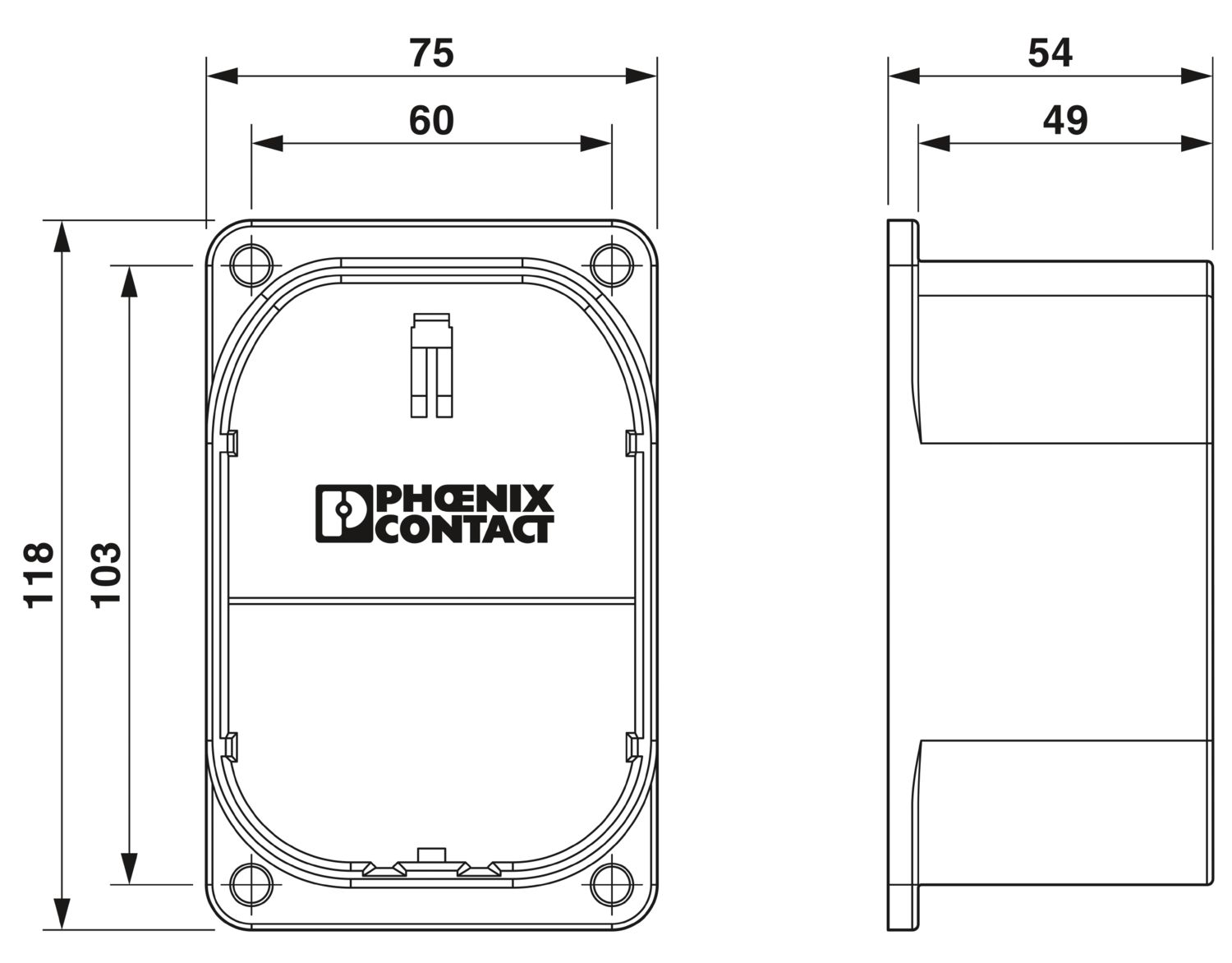

| Dimensional drawing |
|
| Bore dimensions | 60 mm x 103 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Flammability rating according to UL 94 | V0 () |
| Securing | With locking clips for locking contour |

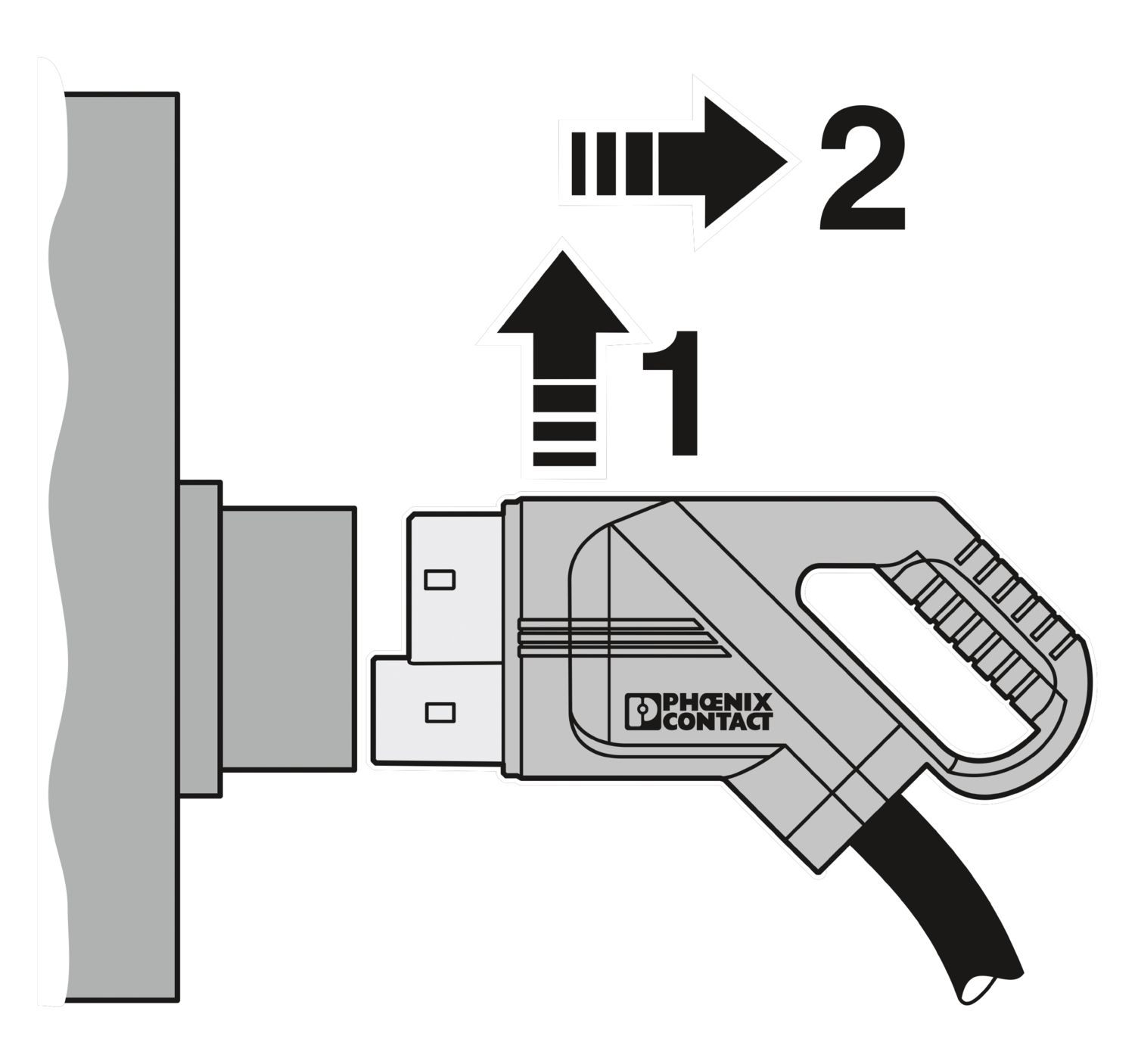

| Removal | Lifting and removal |
| Ambient conditions | |
| Degree of protection | IP54 (plugged in) |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | IEC 62196-3 |
| Mounting type Charging connector holder | Front mounting (0° ... 45° frontal inclination possible) |
| Mounting hole diameter | 6.00 mm (ø) |
