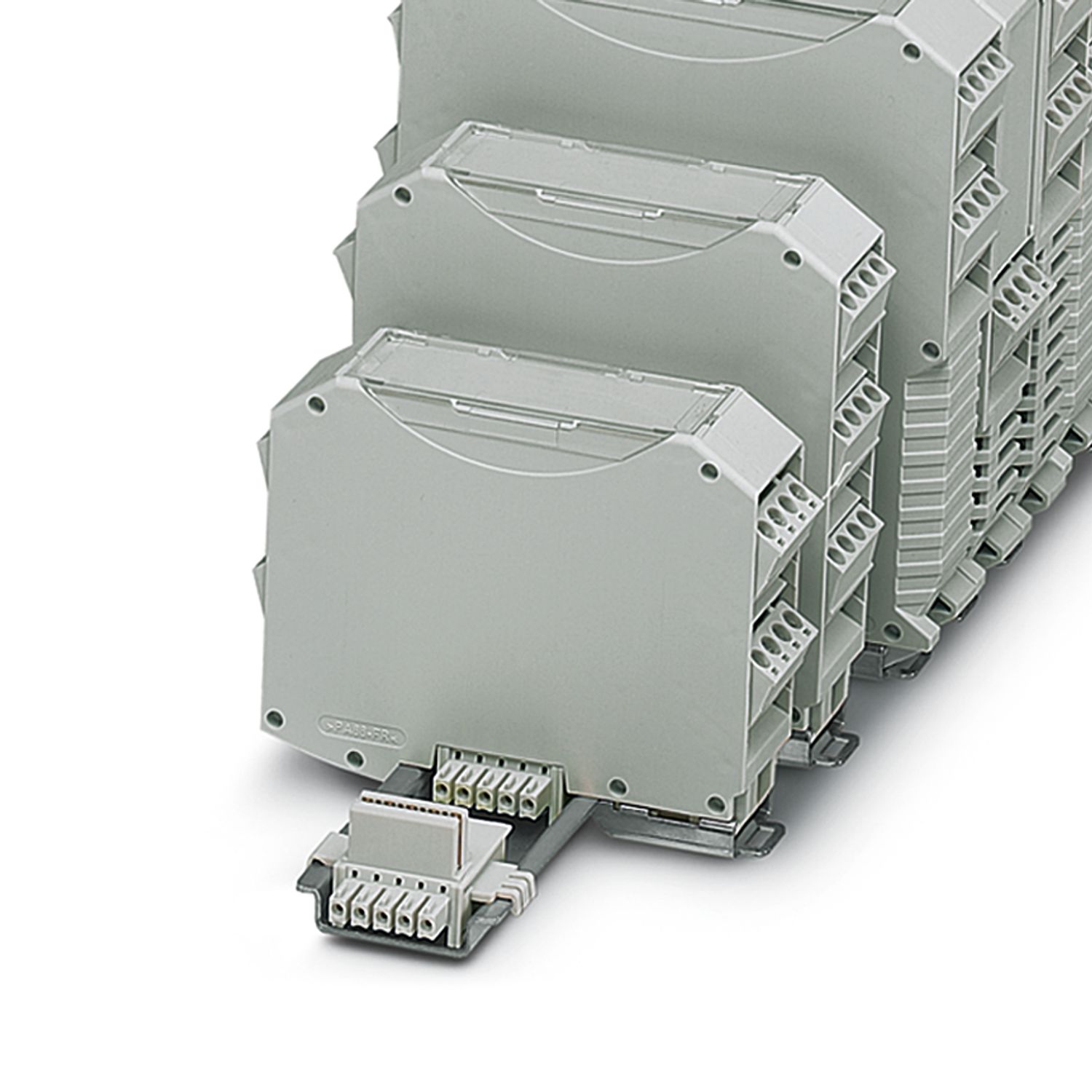

ME MAX 22,5 U-U1 GN - Electronics housing - 2697851

Assembly note	Please observe the application note in the download area.

Product type	Complete housing
Housing type	DIN rail housing
Product family	ME MAX.. U-U1
Number of positions	3
	5
Number of rows	1
Ventilation openings present	yes

Width	22.5 mm
Height	99 mm
Depth	114.5 mm
Depth from top edge of DIN rail	107 mm
PCB design
PCB thickness	1.4 mm ... 1.8 mm

Color	green (RAL 6021)
Flammability rating according to UL 94	V0
Housing material	PA

Power dissipation single housing for 20 °C
Ambient temperature	20 °C
Reduction factor	1
Mounting position	vertical
Power dissipation	6.1 W
Power dissipation single housing for 30 °C
Ambient temperature	30 °C
Reduction factor	0.91
Mounting position	vertical
Power dissipation	5.55 W
Power dissipation single housing for 40 °C
Ambient temperature	40 °C
Reduction factor	0.81
Mounting position	vertical
Power dissipation	4.9 W
Power dissipation single housing for 50 °C
Ambient temperature	50 °C
Reduction factor	0.7
Mounting position	vertical
Power dissipation	4.3 W
Power dissipation single housing for 60 °C
Ambient temperature	60 °C
Reduction factor	0.57
Mounting position	vertical
Power dissipation	3.5 W
Power dissipation single housing for 70 °C
Ambient temperature	70 °C
Reduction factor	0.49
Mounting position	vertical
Power dissipation	3 W
Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	2g (58.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Mechanical strength / tumbling barrel
Specification	IEC 60998-1:2002-12
Height of fall	50 cm
Frequency	10
Shocks
Specification	IEC 60068-2-27:2008-02
Pulse shape	Half-sine
Acceleration	15g
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification	IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attain	IP20
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	80 %

Number of PCB holders	1
Type of PCB mount	Latching
Thickness of the PCB	1.4 mm ... 1.8 mm

Type of packaging	packed in cardboard
Outer packaging type	Carton

Item number	2697851
Packing unit	10 pc
Minimum order quantity	500 pc
Note	Made to order (non-returnable)
Product key	ACHABA
GTIN	4046356040365
Weight per piece (including packing)	61.02 g
Weight per piece (excluding packing)	51.458 g
Country of origin	DE

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

ME MAX 22,5 U-U1 GN - Electronics housing

2697851

Product details

Compatible products

Your advantages

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
