WP-GR HF CTA M20 BK - Protective hose screw connection
3241220

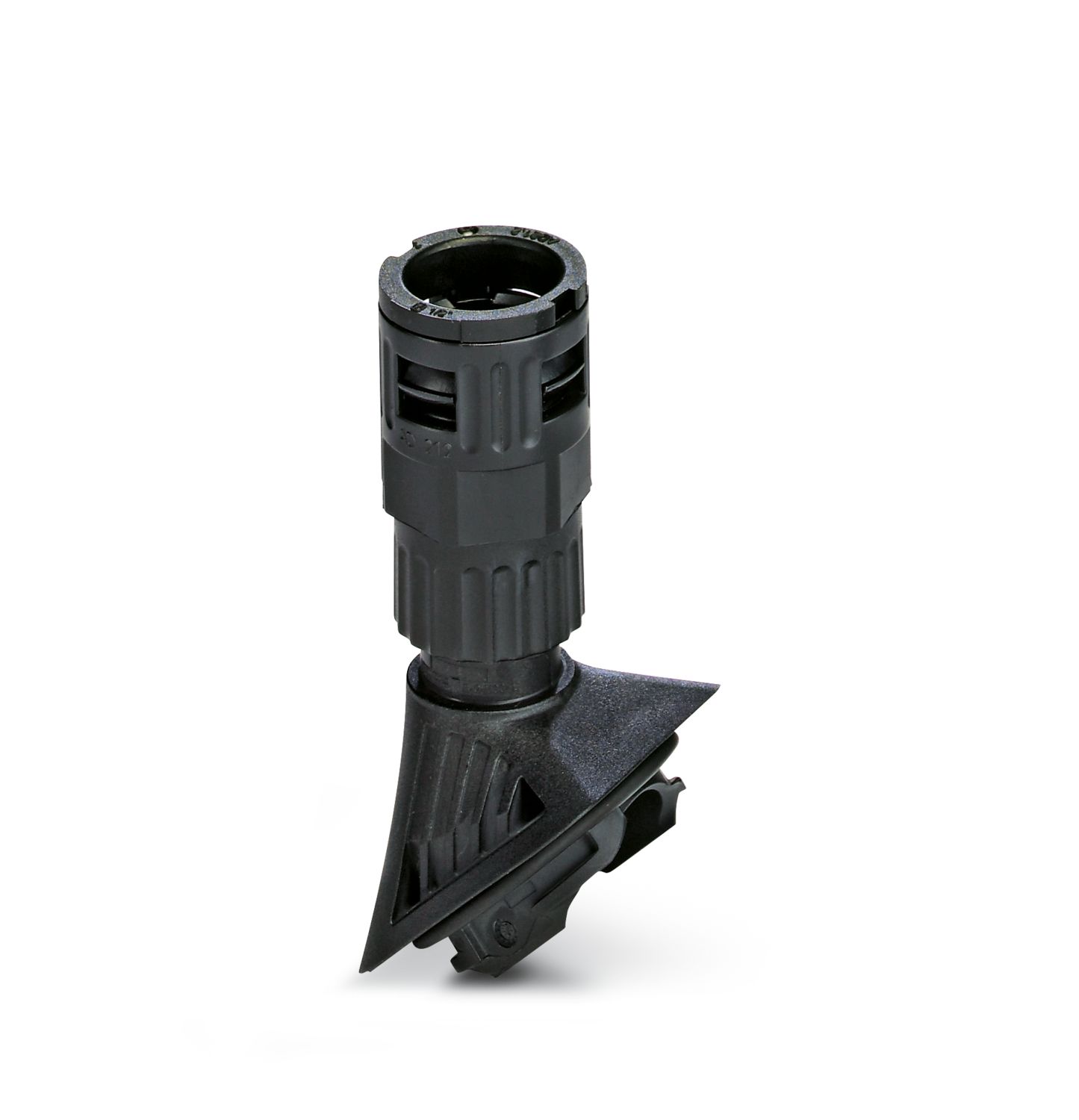

Corrugated pipe adapter, with internal thread, for connecting corrugated pipes to HEAVYCON EVO M20 plastic cable glands or ADVANCE M20 plastic housings, straight, black, IP66.
Product details
Product type
Protective hose screw connection
Application
Cable gland
Type
Internal thread
Thread type
metric
Material
PA
Flammability rating according to UL 94
V2
Material for screw connection
PA
Components
free from silicone, halogen, and cadmium
Halogen-free
yes
Ambient conditions
Degree of protection
IP66
Ambient temperature (operation)
-40 °C ... 115 °C
Assembly note
The corrugated pipe adapter is used in the screw connection instead of the union nut. Thanks to the adapter, corrugated pipes can be used.
