The Pico Off-Grid System (POS) is a robust PV panel-based solution with multiple performance classes up to 190 Wp. The solution includes a housing, pole bracket, and solar panel. Computers, communication units, batteries, and more can be added to create self-sufficient solutions for field use.
Solar panel, PV panel for Pico off-grid system with built-in SUNCLIX connectors, nominal power: 22 Wp, cell technology: Monocrystalline PERC with >22% efficiency, number of cells: 36, module frame: Anodized hollow chamber profile frame, width: 308 mm, height: 417 mm
Outdoor housing, color: light gray, dimensions: 410 mm x 455 mm x 228 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: light gray, plastic latch, material: UV-stabilized polycarbonate
Outdoor housing, color: light gray, dimensions: 251 mm x 204 mm x 134 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: light gray, plastic latch, material: UV-stabilized polycarbonate

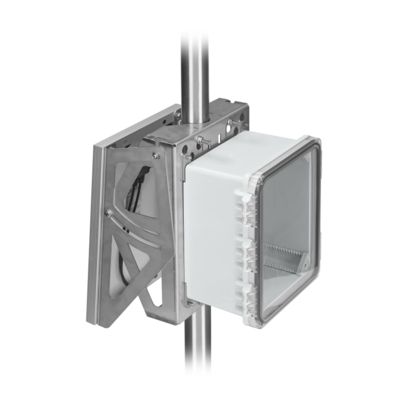

Basic holder for Pico off-grid system, fixing for mast Ø 48 mm ... 108 mm, compatible with POS-HP housing sizes 204 mm x 251 mm to 410 mm x 455 mm, and POS PV panel 75, 110, and 190, material: stainless steel
Basic holder for Pico off-grid system, fixing for mast Ø 48 mm ... 108 mm, compatible with POS-HP housing sizes 204 mm x 251 mm to 308 mm x 352 mm, and POS PV panel 22, material: stainless steel
Outdoor housing, color: light gray, dimensions: 410 mm x 455 mm x 228 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: UV-stabilized polycarbonate
Solar panel, PV panel for Pico off-grid system with built-in SUNCLIX connectors, nominal power: 75 W, cell technology: Monocrystalline PERC with >22% efficiency, number of cells: 39, module frame: Anodized hollow chamber profile frame, width: 660 mm, height: 630 mm
Outdoor housing, color: light gray, dimensions: 403 mm x 358 mm x 185 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: UV-stabilized polycarbonate
Solar panel, PV panel for Pico off-grid system with built-in SUNCLIX connectors, nominal power: 190 W, cell technology: Monocrystalline PERC with >22% efficiency, number of cells: 72, module frame: Anodized hollow chamber profile frame, width: 680 mm, height: 1500 mm
Outdoor housing, color: light gray, dimensions: 251 mm x 204 mm x 134 mm, with panel feed-through for PV connectors and pre-assembled holder, including corner inlays, cover plugs, screws, cover: transparent, plastic latch, material: UV-stabilized polycarbonate
We provide you with the right off-grid system for your application. Discover the technical features for yourself.
| POS PV system solution | |
|---|---|
| Mast diameter | 48 mm … 180 mm |
| Bracket material | Stainless steel |
| Temperature range | -40°C … +80°C |
| PV panel tilt angle | 30° … 80° |
| Solar panel technology | 36 / 45 high-performance solar cells, monocrystalline cell technology |
| Power of the PV panel | 22 Wp .… 190 Wp |
POS PV system solution

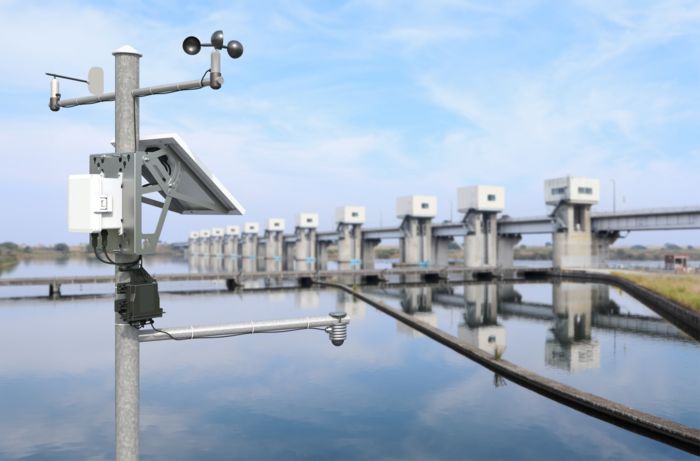

Use the PV panel-based POS (Pico off-grid system) to create energy-self-sufficient systems with several performance classes up to 190 Wp. With the robust housing and a mast bracket made of stainless steel, you can implement a reliable and durable solution for providing energy in remote areas and demanding environments. Areas of application include, for example, environmental data acquisition, industrial environments with high demands, and many other outdoor applications.
The system has been successfully tested for shocks with a force of 5g and vibrations up to 7.4 Hz with an amplitude of 0.15 mm. Wind loads of up to 88 km/h (wind force 8) were successfully simulated on the system. An additional gain provides even greater stability for loads up to wind force 10. The resistance depends on the weight of the components in the housing.
For optimum performance, the panel should be installed at an angle that corresponds to the latitude of the installation location. If your site is located in the northern hemisphere, face the solar panel true south. Similarly, if your site is located in the southern hemisphere, face the solar panel true north. For further details, please refer to the application note which can be found in the download area on the product detail pages.
The PV panels are designed to minimize the effects of partial shading. However, to ensure maximum efficiency, shading should be avoided as far as possible.
