TPS 3/20/5
-
Test plug strip
3246586
Test plug strip, for 4 mm test plugs, for screwing into the bridge shaft, number of positions: 1, color: silver-colored
Product details
| Product type | Test socket |
| Number of positions | 1 |
| Connection method | Plug-in connection |

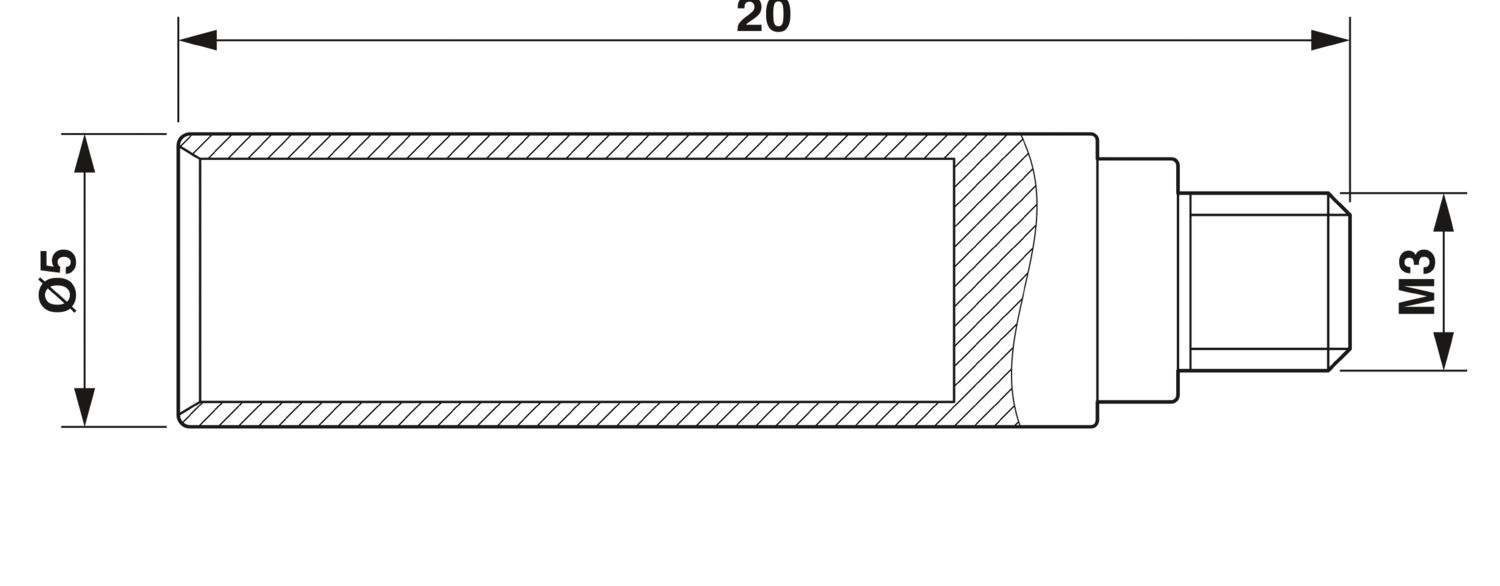

| Dimensional drawing |
|
| Width | 5 mm |
| Height | 5 mm |
| Depth | 20 mm |
| Diameter | 5 mm |
| Pin diameter | 5 mm |
| Color | silver-colored |
| Material | silver-plated brass |
| Flammability rating according to UL 94 | V0 |
| Contact material | Silver-plated brass |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Your advantages
All test sockets are screwed into the bridge shaft
