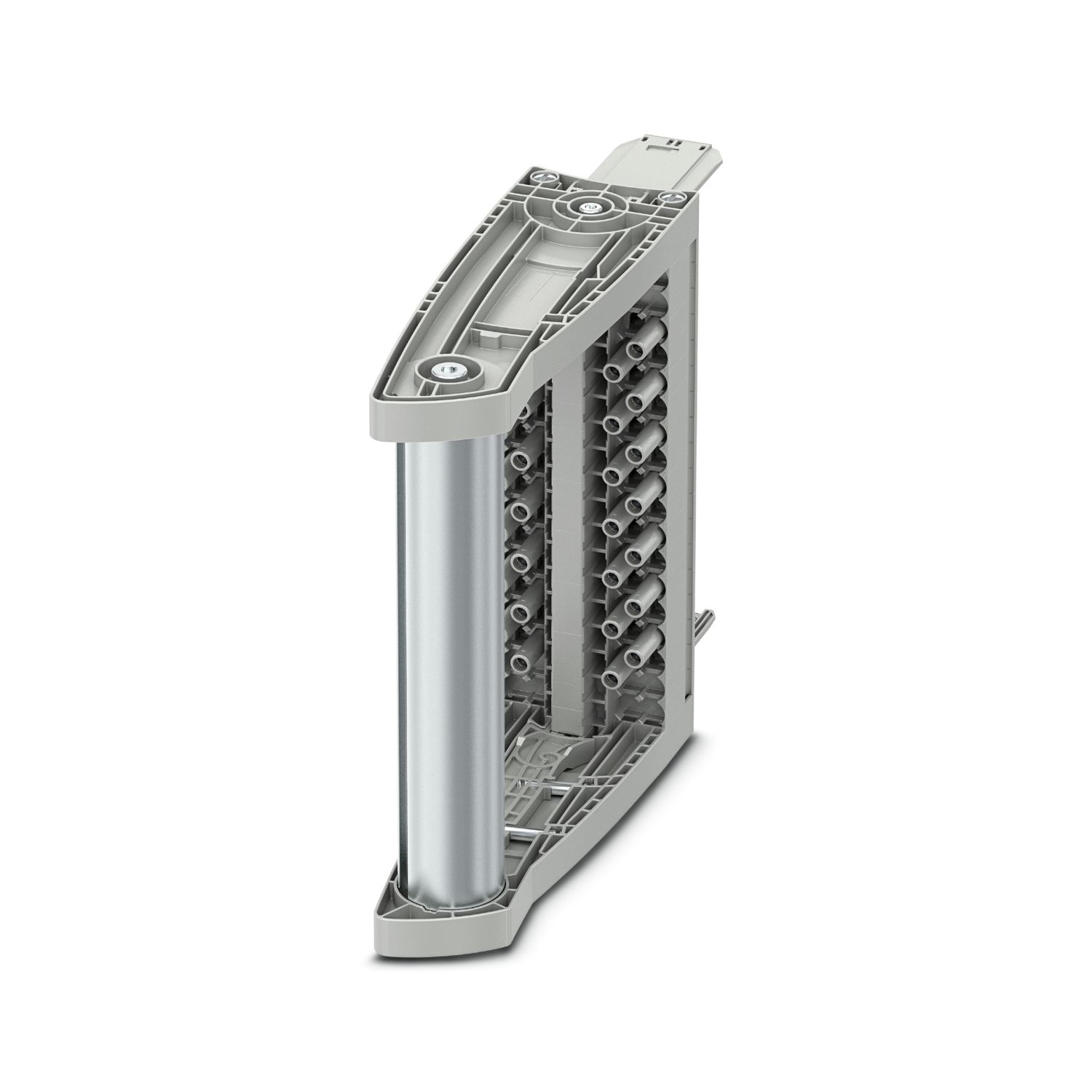

FTP-3F/14 4U - Test plug

1029268

Test plug, nom. voltage: 400 V, nominal current: 20 A, number of positions: 14, connection method: Cable lug connection, Rated cross section: 2.5 mm², color: gray

Product details

Technical data

Product properties

Product type	Test plug terminal block
Number of positions	14

Electrical properties

Maximum power dissipation for nominal condition	1.02 W

Connection data

Nominal cross section	4 mm²
Test socket torque	0.5
Conductor cross section flexible	0.5 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	20 ... 14 (converted acc. to IEC)
Nominal current	20 A
Maximum load current	20 A
Nominal voltage	400 V
Nominal cross section	2.5 mm²

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material	PC

Environmental and real-life conditions

Ambient conditions
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Commercial data

Item number	1029268
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	BE6114
Product key	BE6114
Catalog page	Page 651 (C-1-2019)
GTIN	4055626531243
Weight per piece (including packing)	757.5 g
Weight per piece (excluding packing)	757.5 g
Customs tariff number	85366990
Country of origin	PL

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
Use group B
	300 V	30 A
Use group C
	300 V	30 A
Use group F
	400 V	30 A

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N
Use group B
	300 V	30 A
Use group C
	300 V	30 A
Use group F
	400 V	30 A

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	960cc23d-589c-4128-8837-83041e6567a6

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FTP-3F/14 4U - Test plug

1029268

Product details

ECLASS

ETIM

UNSPSC

CSA

cUL Recognized

UL Recognized

Compatible products

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

FTP-3F/14 4U - Test plug 1029268

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-8 - Plug-in bridge 3030284

FBS 3-8 - Plug-in bridge 3030297

FBS 4-8 - Plug-in bridge 3030307

FBS 5-8 - Plug-in bridge 3030310

FBS 6-8 - Plug-in bridge 3032470

FBS 10-8 - Plug-in bridge 3030323

FBSRH 2-8 - Short-circuit connector 3033802

FBSRH 3-8 - Short-circuit connector 3033803

FBSRH 4-8 - Short-circuit connector 3033804

FBS 1/3-8 - Plug-in bridge 3032363

FBS 2-8 CT - Plug-in bridge 3033830

FBS 3-8 CT - Plug-in bridge 3033831

FBS 4-8 CT - Plug-in bridge 3033832

FBS 10-8 CT - Plug-in bridge 3033833

FBS 2-8 BU - Plug-in bridge 3032567

FBS 3-8 BU - Plug-in bridge 3032570

FBS 4-8 BU - Plug-in bridge 3032583

FBS 5-8 BU - Plug-in bridge 3032596

FBS 6-8 BU - Plug-in bridge 3032677

FBS 10-8 BU - Plug-in bridge 3032606

BTFE 6-3/14 4U - Test terminal strip 1029251

TMT (EX6,2)R - Marker for terminal blocks 0803063

PSBJ-URTK 6 FARBLOS - Test plug strip 3026450

PSBJ-URTK 6 RD - Test plug strip 3026719

PSBJ-URTK 6 BU - Test plug strip 3026434

PSBJ-URTK 6 YE - Test plug strip 3026405

PSBJ-URTK 6 GN - Test plug strip 3026418

PSBJ-URTK 6 VT - Test plug strip 3026421

PSBJ-URTK 6 GY - Test plug strip 3026612

PSBJ-URTK 6 BK - Test plug strip 3026447

PSBJ-URTK 6 BN - Test plug strip 3026971

PSBJ-URTK 6 WH - Test plug strip 3026448

ZBF 8:UNBEDRUCKT - Zack Marker strip, flat 0808781

ZBF 8 CUS - Zack Marker strip, flat 0825030

UC-TMF 8 - Marker for terminal blocks 0818137

UC-TMF 8 CUS - Marker for terminal blocks 0824654

UCT-TMF 8 - Marker for terminal blocks 0828748

UCT-TMF 8 CUS - Marker for terminal blocks 0829672

FAME-BAG 260 - Shoulder bag 3069520

US-TMF 100 - Marker for terminal blocks 0829260

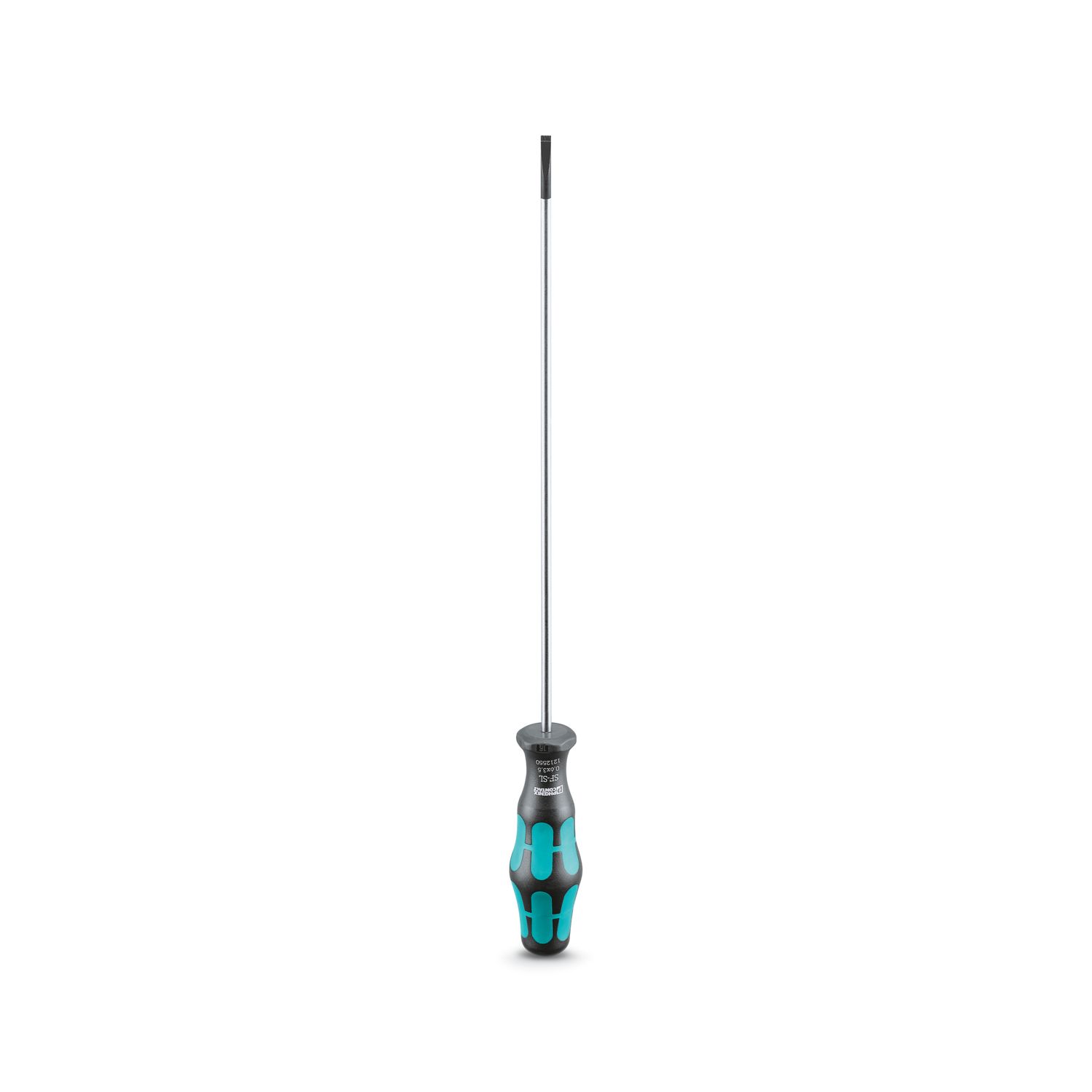

SF-SL 0,6X3,5-200 - Screwdriver 1212550
