UMK- 8 RM 24DC/MKDS/M
-
Multiple relay module
2973737

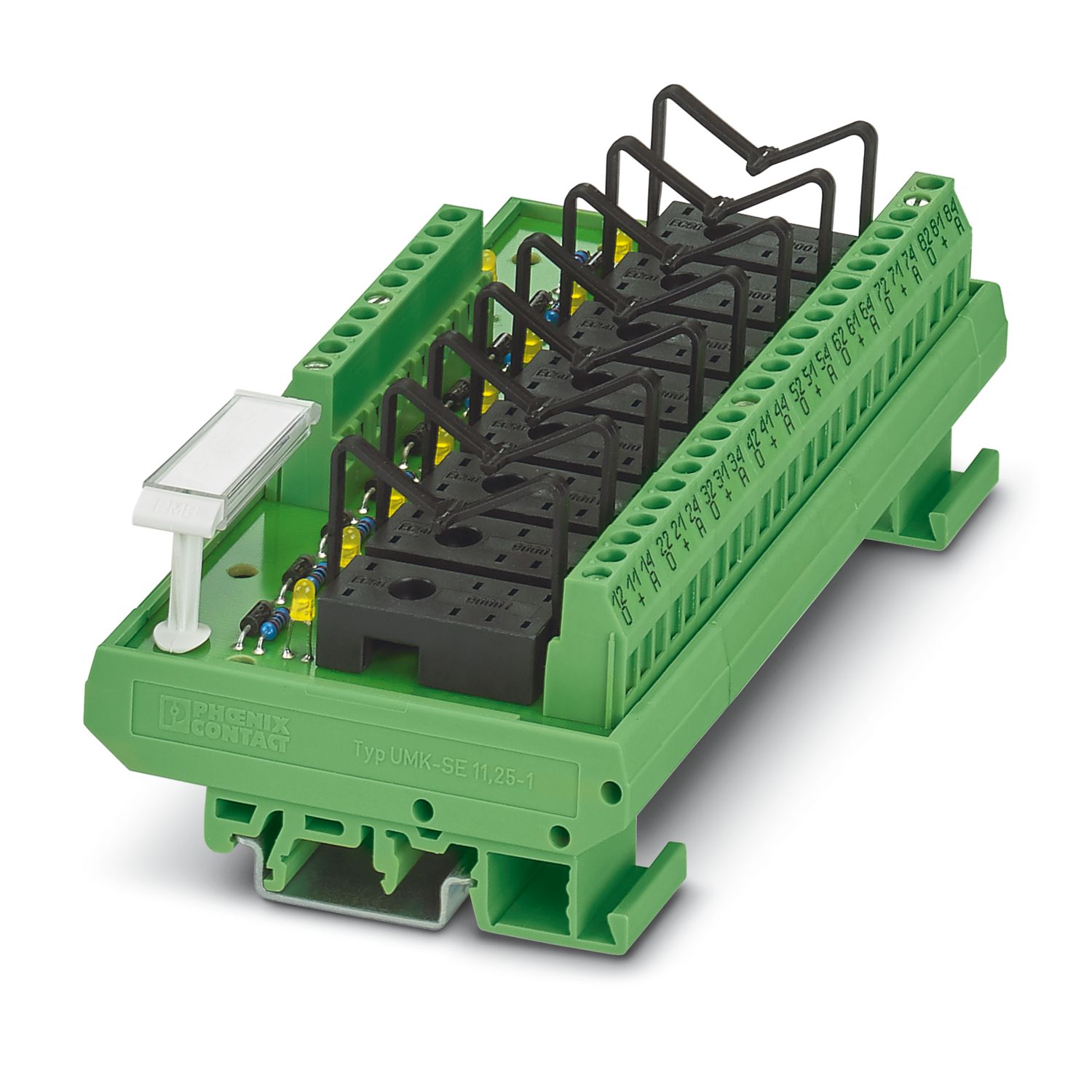

VARIOFACE module, for 8 plug-in miniature relays or miniature solid-state relays, with LED, negative switching, 24 V DC input voltage
Product details
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Multi-channel relay module |
| No. of channels | 8 |
| Operating mode | 100% operating factor |
| Rated insulation voltage | 260 V AC |
| Rated surge voltage | 4 kV (Basic insulation) |
| Nominal input voltage UN | 24 V DC |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Reverse polarity protection; Polarity protection diode | |
| Operating voltage display | Yellow LED |
| Status display/channel | Yellow LED |
| Switching | |
| Contact switching type | 1 changeover contact or 1 N/O contact |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 5 A |
| Input | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Output | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Status display present | yes |
| Width | 135 mm |
| Height | 77 mm |
| Depth | 59 mm |
| Color | green (RAL 6021) |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN EN 50178 |
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Item number | 2973737 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | DK6164 |
| Product key | DK6164 |
| GTIN | 4017918167318 |
| Weight per piece (including packing) | 241.3 g |
| Weight per piece (excluding packing) | 204.78 g |
| Customs tariff number | 85364190 |
| Country of origin | DE |
