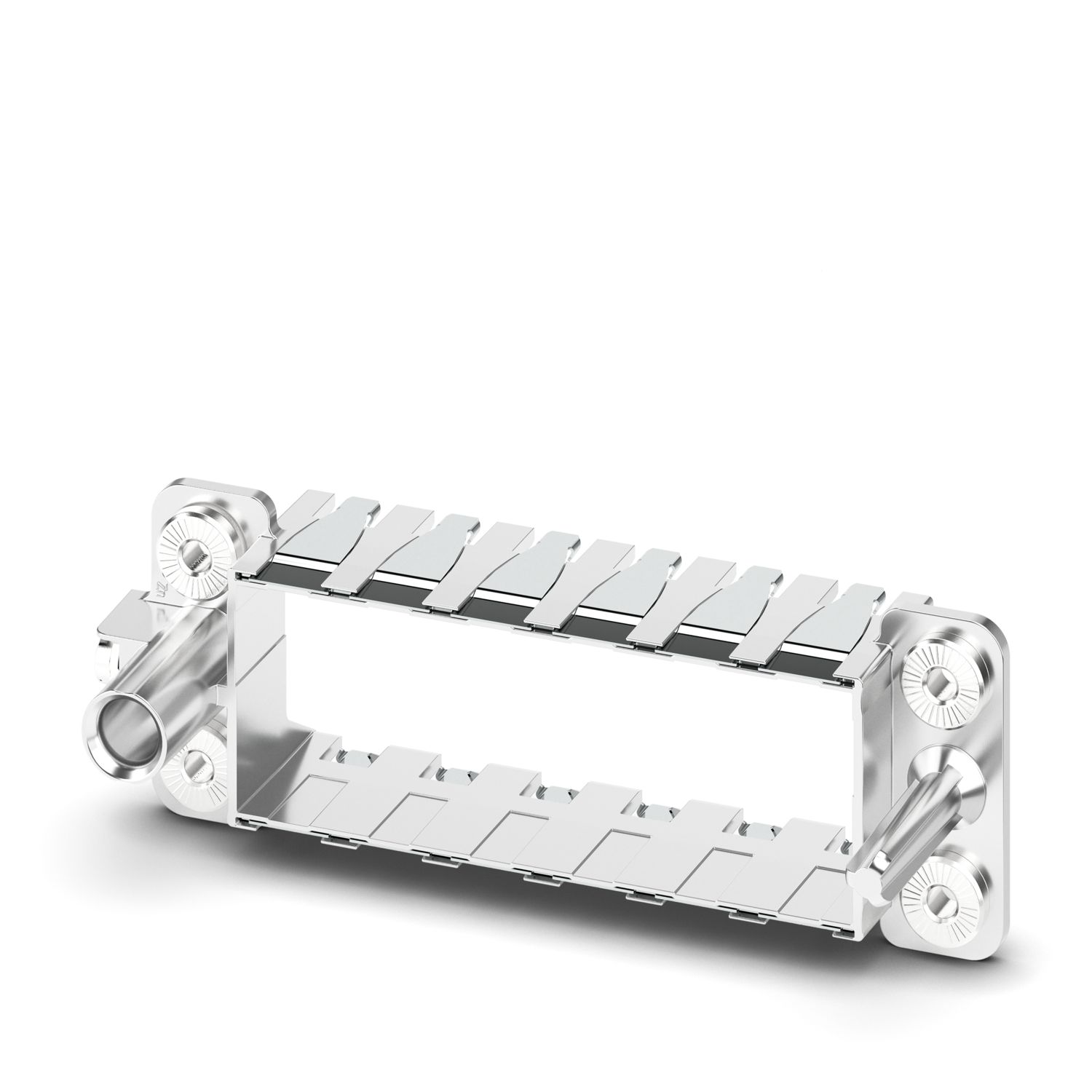

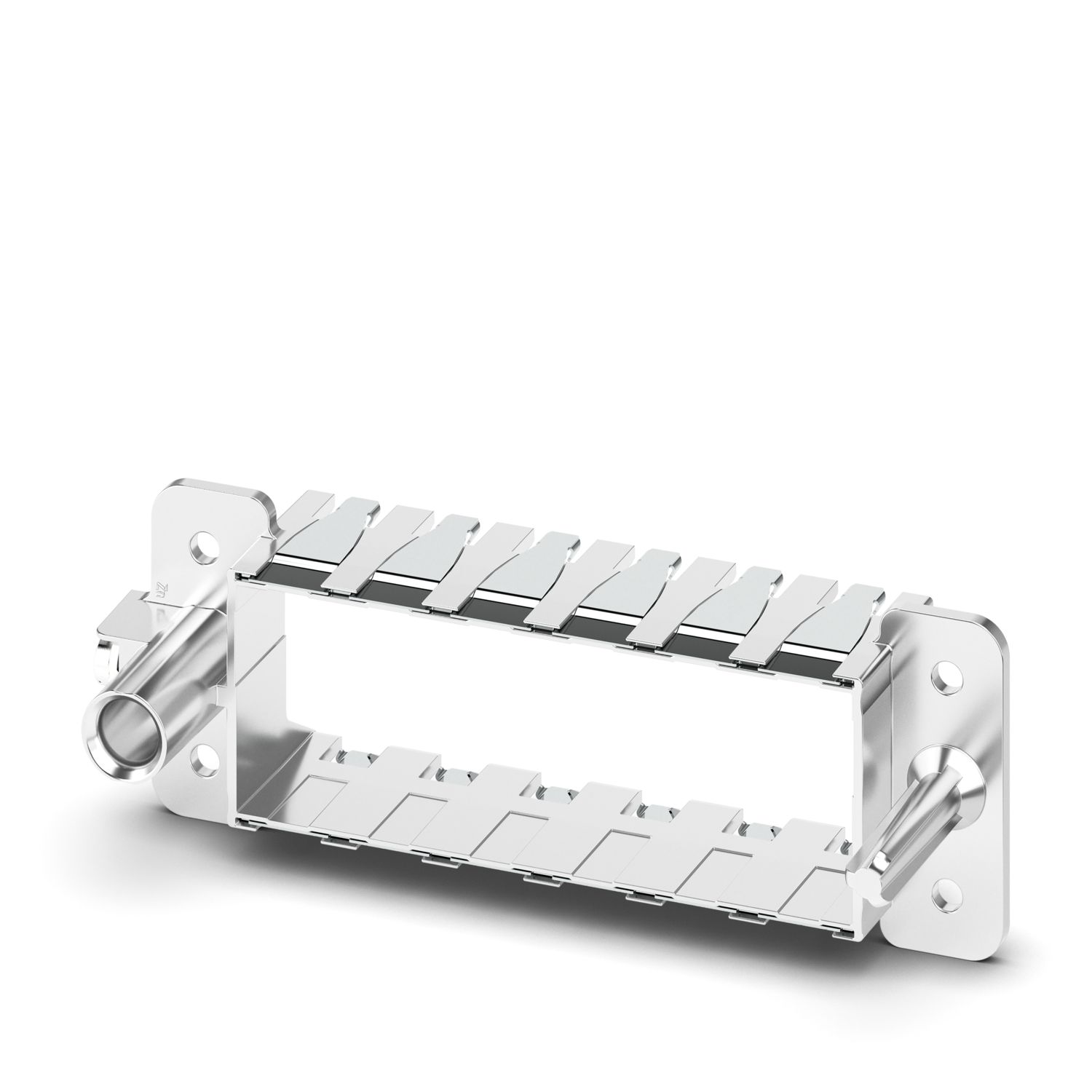

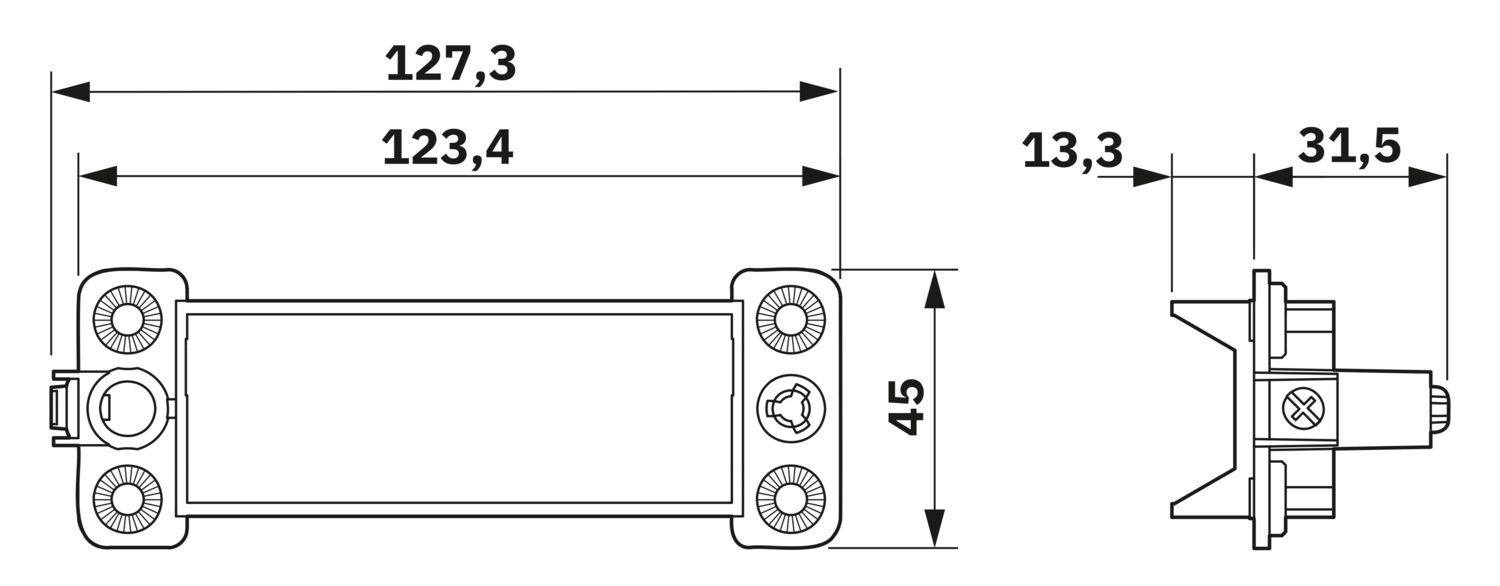

HC-M-B24-DOCK-B-S - Docking frame

HC-M-B24-DOCK-B-S - Docking frame

1691155

Docking frame for 6 modules, floating assembly, rack compensation of ±2.0 mm in the x/y-axis

Product details

Expand all Collapse all

Product description

Docking frame, floating assembly, rack compensation of ±2.0 mm in the x/y axis

Technical data

Product properties

Product type	Docking frame
Series	HC-M-B
		HC-M-02
		HC-M-03
		HC-M-03/04
		HC-M-04
		HC-M-05
		HC-M-06
		HC-M-08
		HC-M-08-GBIT
		HC-M-12
		HC-M-17
		HC-M-20
		HC-M-25
		HC-M-DSUB
		HC-M-EMV
		HC-M-HV
		HC-M-HS
		HC-M-00
Application	Modular docking frame
Type	B24
Number of module slots	6
Frame type	Docking frames

Material specifications

Material	Die-cast zinc

Commercial data

Item number	1691155
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	AF7ACZ
Product key	AF7ACZ
GTIN	4067923252271
Weight per piece (including packing)	120.57 g
Weight per piece (excluding packing)	120.57 g
Customs tariff number	85389099
Country of origin	CN

Classifications

ECLASS

ECLASS-13.0	27440206
ECLASS-15.0	27440206

ETIM

ETIM 9.0

EC002312

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Compatible products

Expand all Collapse all

Accessories

HC-MOD-ANDOCK-USCH - Washer 1587496
HC-M-B24-DOCK-H-S - Docking frame 1691156
