HC-CST-MOD
-
Coding element
1636127

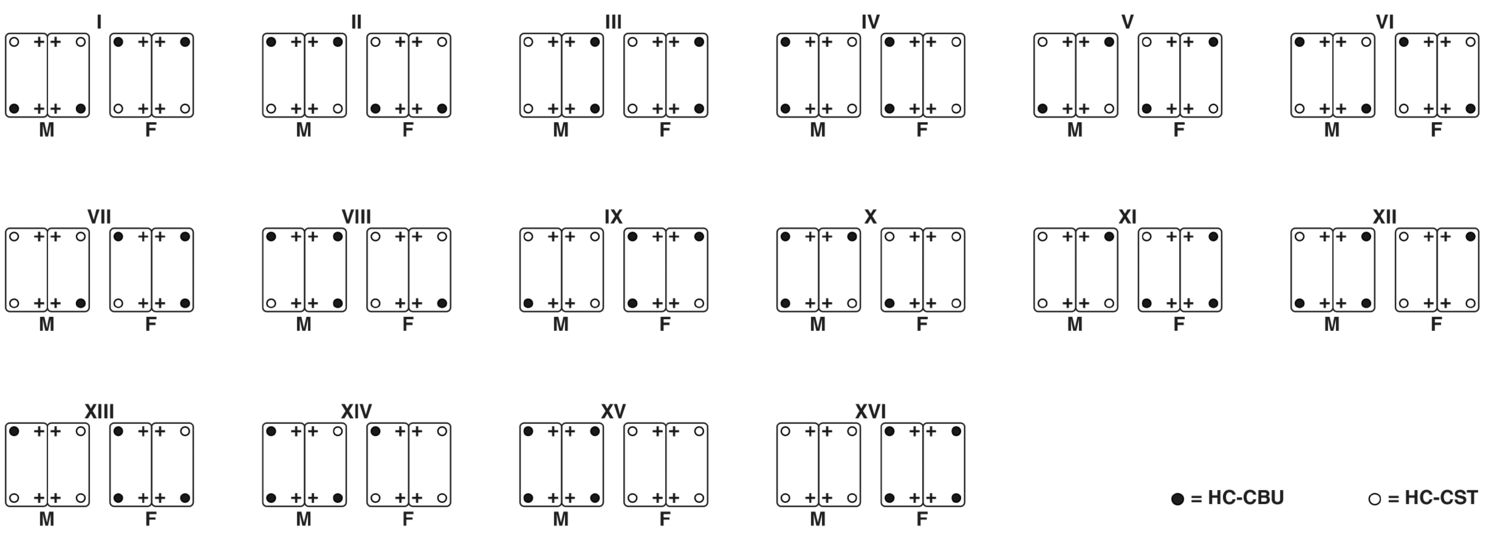

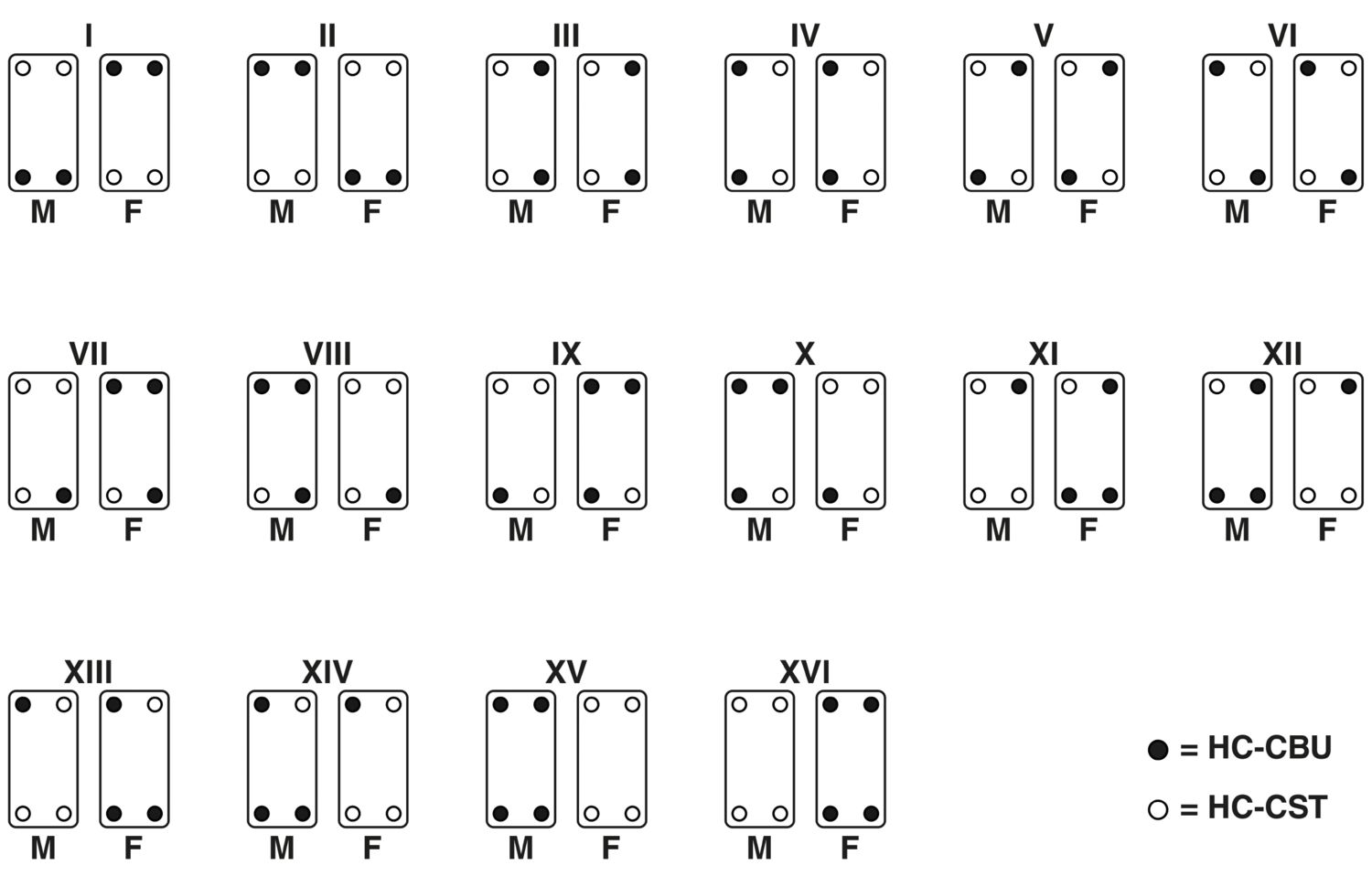

Coding peg for coding up to 16 connectors, for HC Modular
Product details
| Product type | Coding element |
| Assembly note | Coding pins and sockets are required for the modules HC-M-DSUB.... and HC-M-25-MOD... |
| Material | Steel, galvanized |

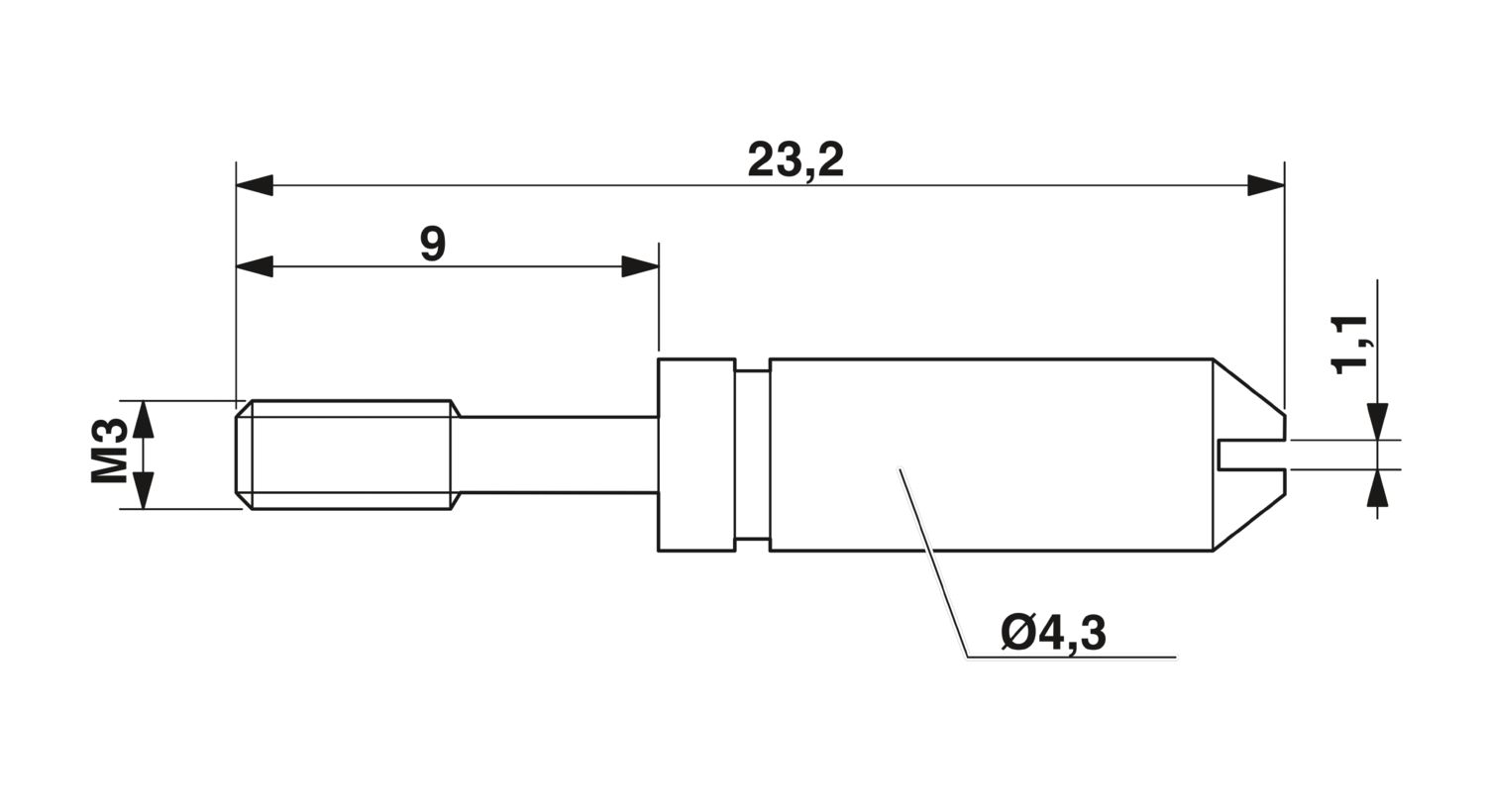

| Dimensional drawing |
|
| Width | 4.3 mm |
| Height | 4.3 mm |
| Length | 23.2 mm |
| Notes on operation | Prevents most cases of the connector being inserted at an angle |
