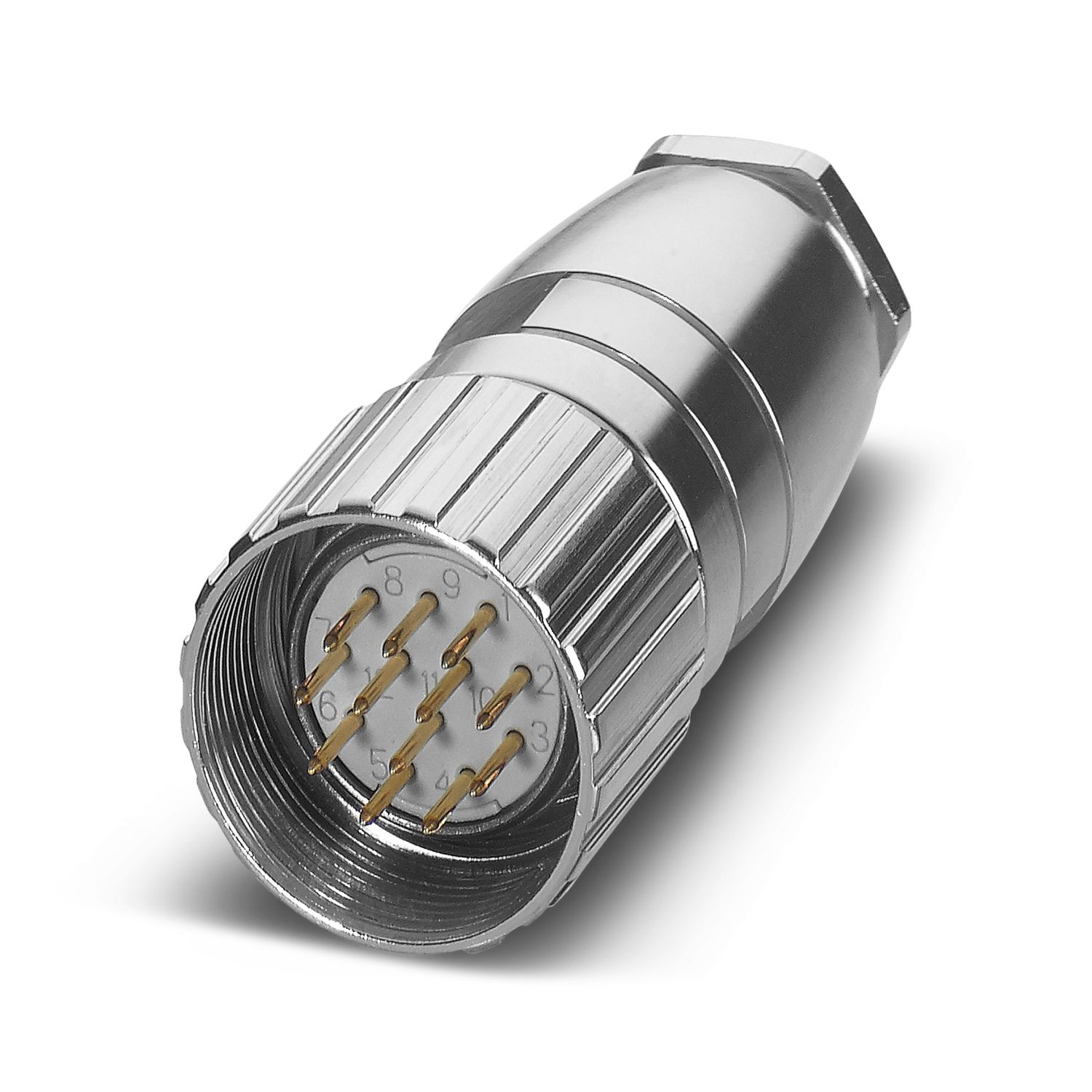

RC-16P1N121520 - Cable connector

1600519

Product details

Technical data

Product properties

Product type	Circular connector (cable-side)

Connector

Insulating body
Coding	N
Material (Insulating body)	PBT
Material (Contact)	CuZn
Material (Contact surface)	Ni/Au
Insertion/withdrawal cycles	50
Connection method	Solder cup
Contact switching type	Pin
Application	Signal
Number of positions	16
Direction of rotation	Standard

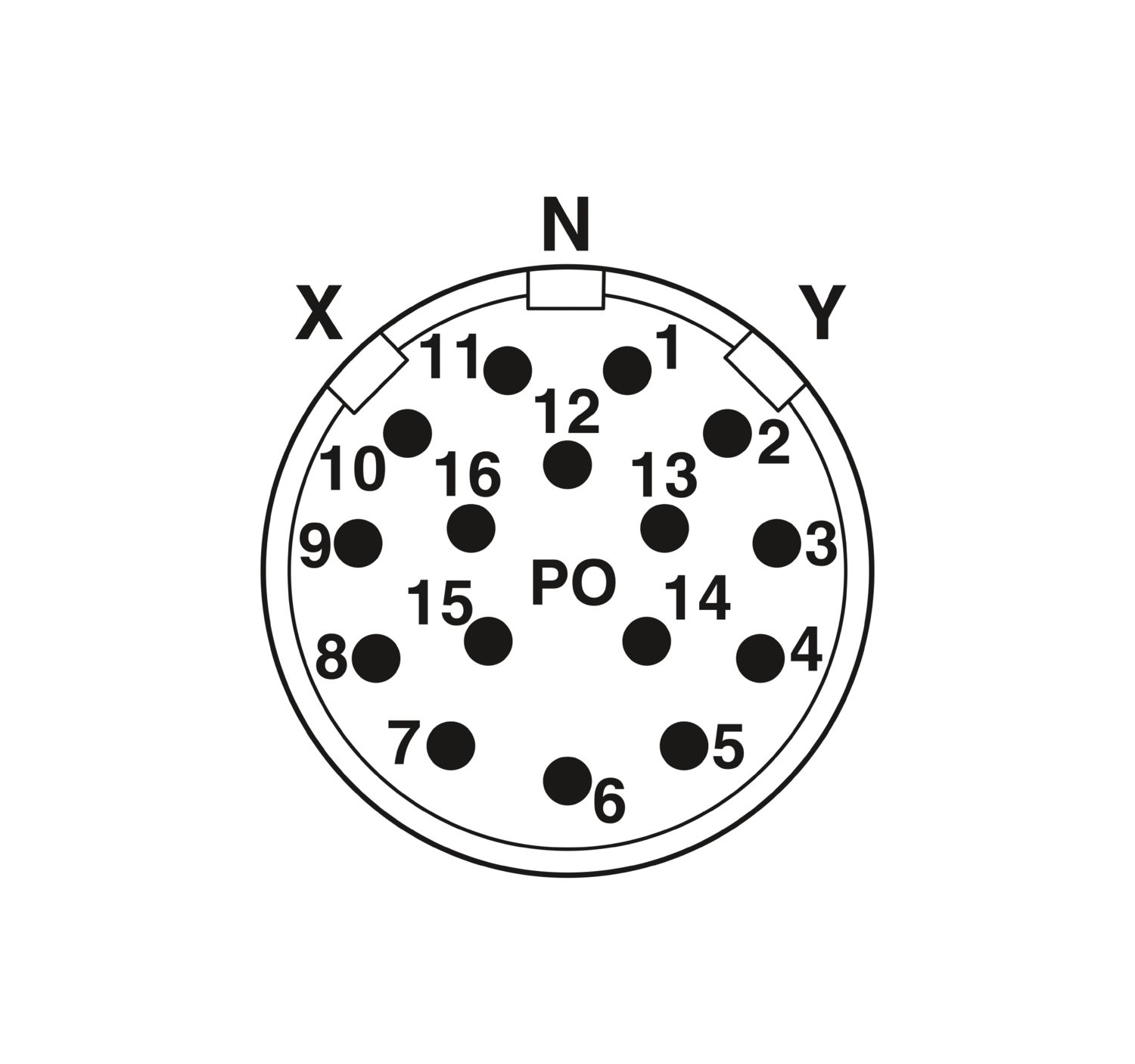

Connection profile	16
Number (Contact group 1)	16
Contact diameter (Contact group 1)	1 mm
Litz wires Min. cross section (Contact group 1)	0.08 mm²
Litz wires Max. cross section (Contact group 1)	1 mm²
Rated current Contact (Contact group 1)	8 A (for max. connection cross section)
Rated voltage Contact (Contact group 1)	48 V AC
Rated voltage Contact (Contact group 1)		74 V DC
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3
Housing
Type	Cable connector housing
Thread type	M23
Design	straight
Type of locking	Screw locking mechanism
Pg screw connection	Pg9
Material (Housing)	GD-Zn
Material (Housing surface)	Ni
Material (Rotating parts)	CuZn
Degree of protection (plugged in)	IP65
		IP67
		IP68

Commercial data

Item number	1600519
Packing unit	20 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Product key	ABRAFA
GTIN	4046356230476
Weight per piece (including packing)	78.42 g
Weight per piece (excluding packing)	78.42 g
Country of origin	DE

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
