SACC-ATM04-2P-R120
-
Termination resistor
1521117
Terminating resistor
Product details

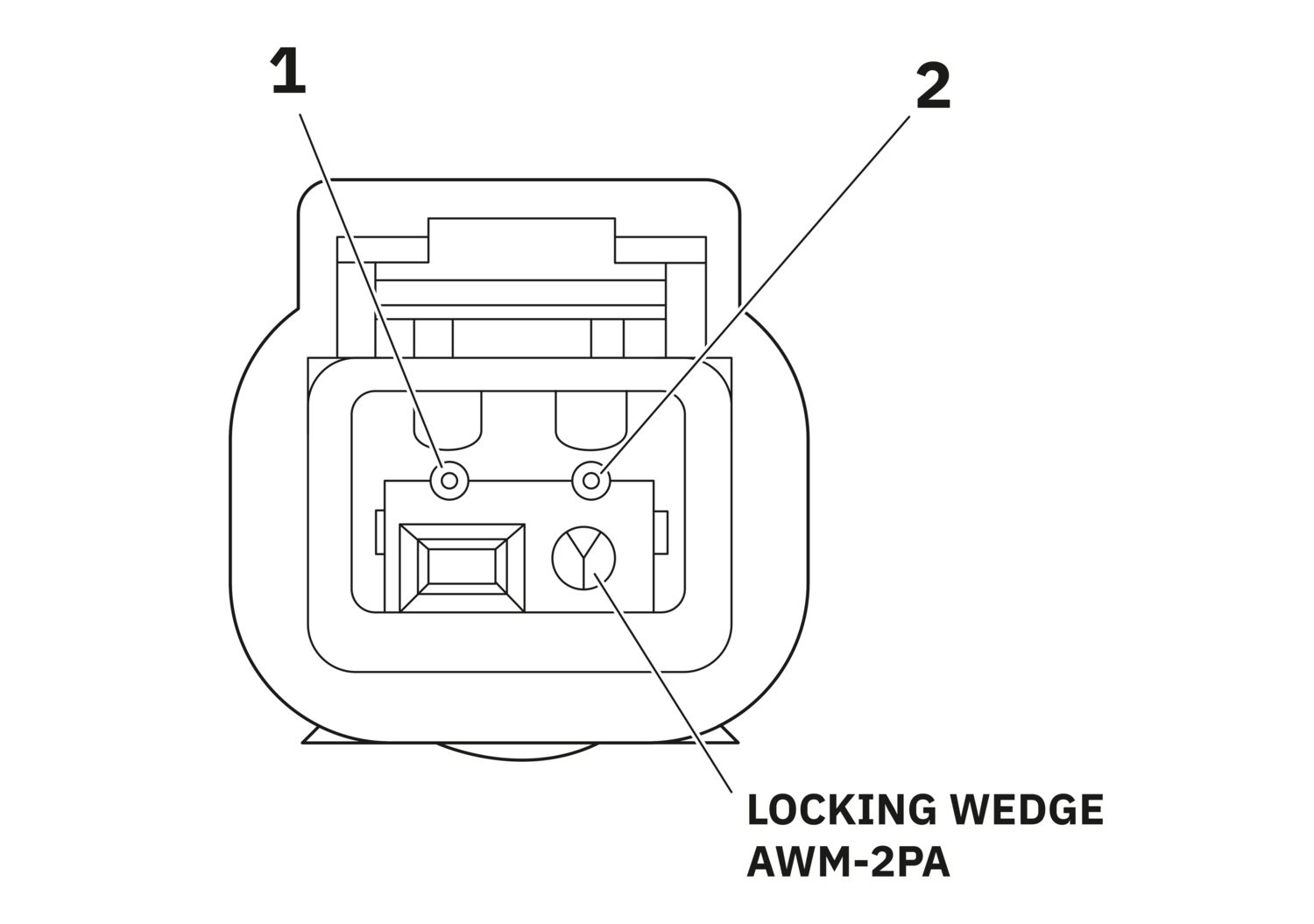

| Number of positions | 2 |
| Nominal voltage UN | 50 V AC/DC (IEC rating) |
| Nominal current IN | 7.5 A |
| General | |
| Termination resistor | 120 Ω ±5 % |
| Power consumption | ≤ 0.5 W |
| Dimensional drawing |
|
| Width | 17 mm |
| Height | 16.3 mm |
| Length | 42.7 mm |
| Seal material | Silicon |
| Material of grip body | PA-GF |
| Contact material | Copper alloy |
| Contact surface material | Au |
| Contact carrier material | PA-GF |
| Connection 1 | |
| Type | Plug straight |
| Connection 2 | |
| Type | free cable end |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Ambient conditions | |
| Degree of protection | IP67 (in mated condition) |
| Ambient temperature (operation) | -55 °C ... 125 °C |
