CN-LAMBDA/4-2.0-BB
-
Surge protection device
2818863
Attachment plug with Lambda/4 technology as surge protection for coaxial signal interfaces. Connection: N connectors socket-socket
Product details
| Product type | Surge protection for transceiver systems |
| IEC test classification | C2 |
| C3 | |
| D1 | |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Type | Intermediate plug |
| Connection method | N Connector |

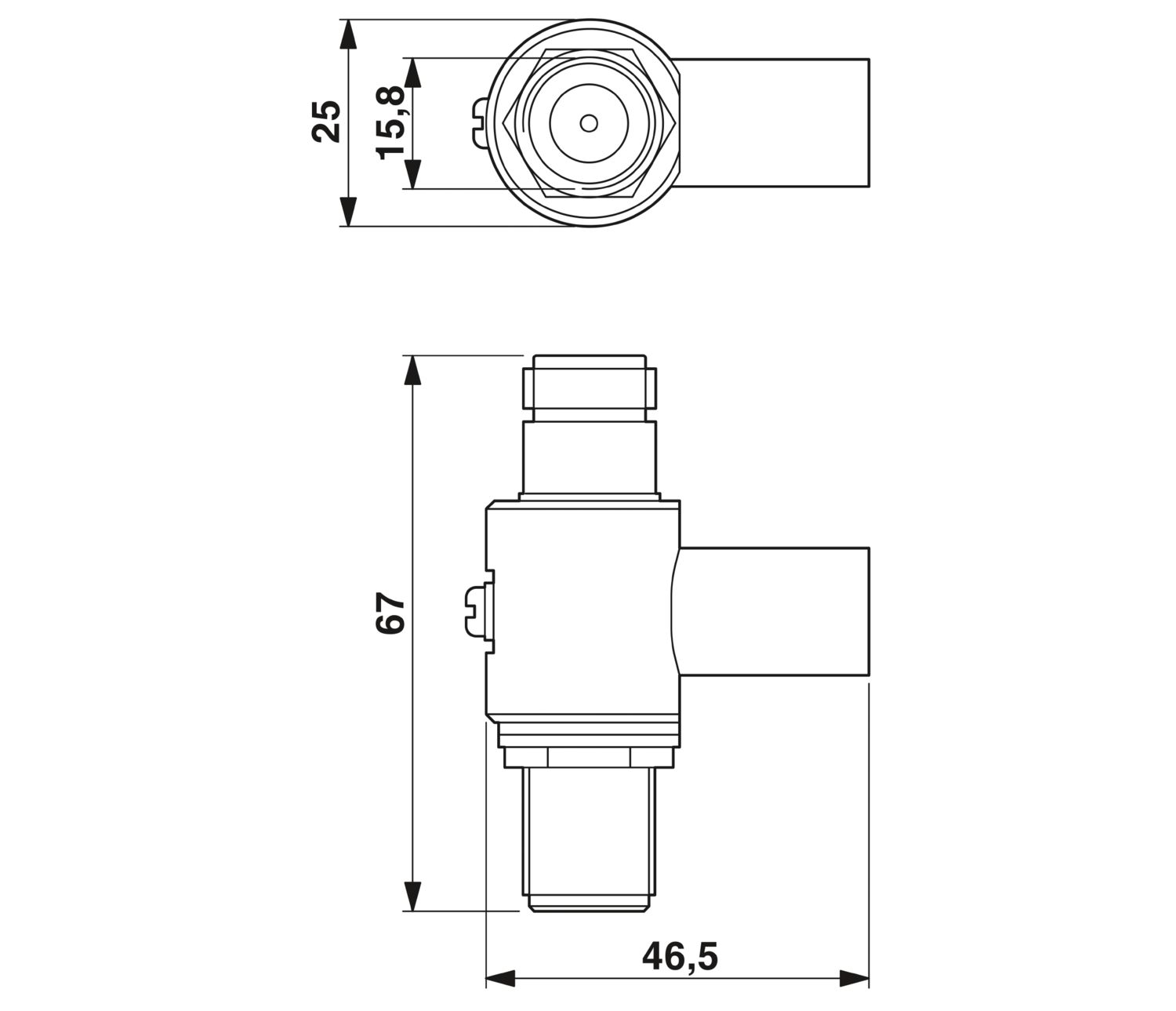

| Dimensional drawing |
|
| Width | 46.5 mm |
| Height | 25 mm |
| Depth | 67 mm |
| Housing material | Nickel-plated brass |
| Mechanical data | |
| Open side panel | No |
| Direction of action | Line-Shield/Earth Ground |
| Nominal discharge current In (8/20) µs (line-ground) | 20 kA |
| Nominal discharge current In (8/20) µs (line-shield) | 20 kA |
| Total surge current (8/20) µs | 20 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 10 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 10 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 10 V |
| Output voltage limitation at 1 kV/µs (line-shield) static | ≤ 10 V |
| Residual voltage at In (conductor-ground) | ≤ 20 V |
| Residual voltage at In (conductor-shield) | ≤ 20 V |
| Voltage protection level Up (line-earth) | ≤ 20 V |
| Input attenuation aE, asym. | 0.2 dB (1.7 GHz ... 2.3 GHz) |
| Frequency range | 1.7 GHz ... 2.3 GHz |
| Voltage standing wave ratio VSWR in a 50 Ω system | ≤ 1.25 (1.7 GHz ... 2.3 GHz) |
| Permissible HF power Pmax at VSWR = xx (50 ohm system) | ≤ 400 W (VSWR = 1.2) |
| ≤ 500 W (VSWR = 1.0) | |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| D1 - 2.5 kA | |
| Impulse durability (line-shield) | C2 - 10 kV/5 kA |
| D1 - 2.5 kA |
| Ambient conditions | |
| Degree of protection | IP55 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| VDE requirement class | C2 |
| C3 | |
| D1 | |
| Standards Information technology specification | |
| Standards/regulations | IEC 61643-21 |
| IEC 61643-21 | |
| Standards/specifications | IEC 61643-21 |
| Note | 2005 |
| Mounting type | Connection-specific intermediate plugging |
