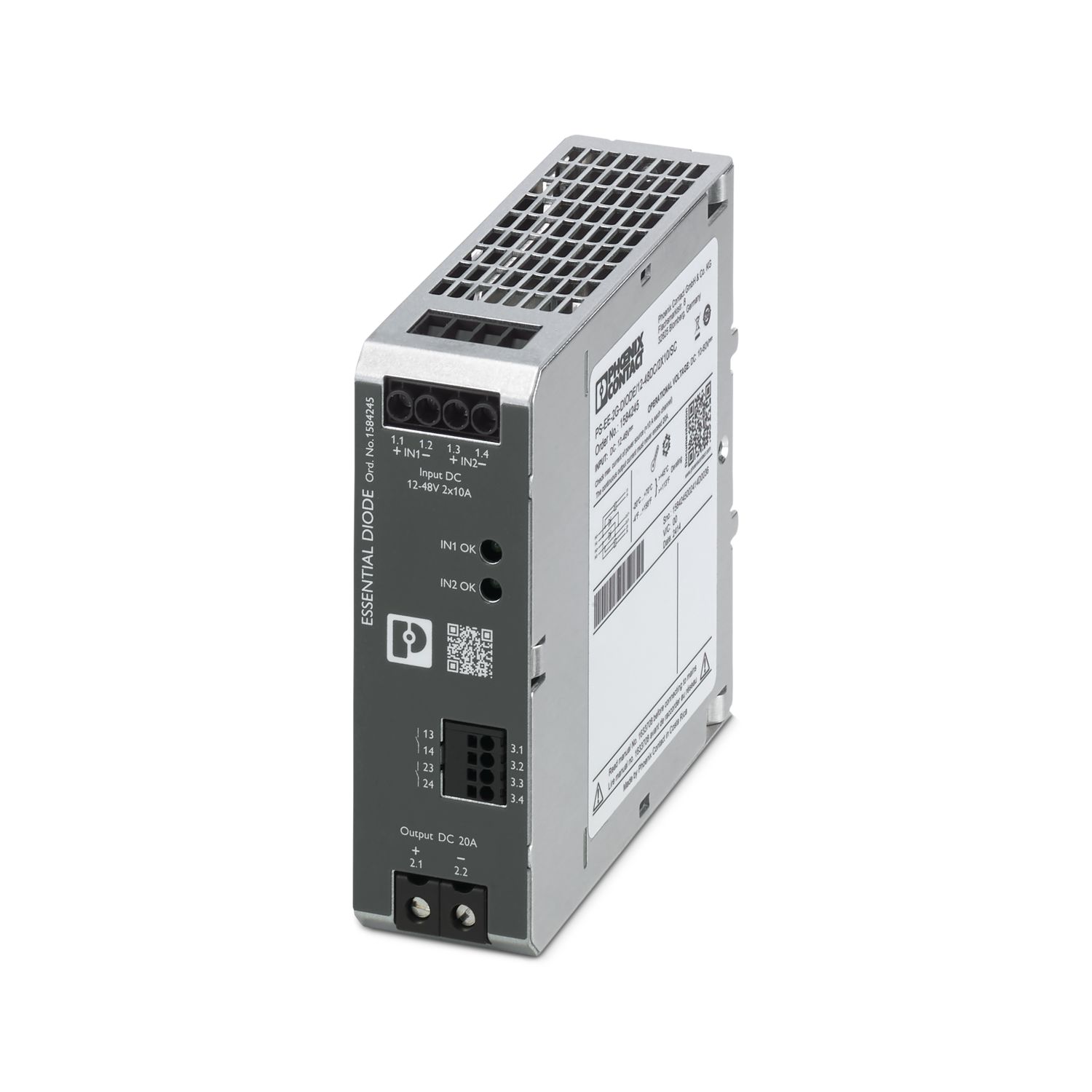

PS-EE-2G-DIODE/12-48DC/2X10/SC
-
Redundancy module
1584245
Redundancy module ESSENTIAL DIODE, DIN rail mounting, 12 V DC ... 48 V DC, 2x 10 A DC
Product details
| Nominal input voltage range | 12 V DC ... 48 V DC |
| Input voltage range | 10 V DC ... 60 V DC |
| Nominal input current (IN) | 2x 10 A DC (-20 °C ... 45 °C) |
| 1x 20 A DC (-20 °C ... 45 °C) | |
| Reverse polarity protection | < yes60 V |
| Voltage drop, input/output | typ. 0.75 V |
| Efficiency | ≥ 94 % (≥ 12 V DC) |
| ≥ 96 % (≥ 24 V DC) | |
| ≥ 98 % (≥ 48 V DC) | |
| Nominal output voltage | 24 V DC |
| Setting range of the output voltage (USet) | 5 V DC ... 24 V DC |
| Nominal output current (IN) | 20 A |
| Derating | 50 °C ... 70 °C (2 % / K) |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.2 mm² ... 6 mm² |
| flexible | 0.2 mm² ... 4 mm² |
| flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
| 1.5 mm² (recommended) | |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² |
| 1.5 mm² (recommended) | |
| rigid (AWG) | 24 ... 10 (Cu) |
| Stripping length | 8 mm (rigid/flexible/ferrule without plastic sleeve) |
| 11 mm (Ferrule with plastic sleeve) | |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Drive form screw head | Slotted L |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.5 mm² ... 16 mm² |
| flexible | 0.5 mm² ... 16 mm² |
| flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
| 4 mm² (recommended) | |
| flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² |
| 4 mm² (recommended) | |
| rigid (AWG) | 20 ... 6 (Cu) |
| Stripping length | 10 mm (rigid/flexible/ferrule without plastic sleeve) |
| 13 mm (Ferrule with plastic sleeve) | |
| Tightening torque | 1.2 Nm ... 1.5 Nm |
| Drive form screw head | Slotted L |
| Conductor connection | |
| Connection method | Push-in connection |
| rigid | 0.2 mm² ... 1.5 mm² |
| flexible | 0.2 mm² ... 1.5 mm² |
| flexible with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| flexible with ferrule with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| rigid (AWG) | 24 ... 16 (Cu) |
| Stripping length | 10 mm (rigid/flexible/ferrule without plastic sleeve) |
| 99 mm (Ferrule with plastic sleeve) | |
| LED signaling | |
| Types of signaling | DC OK (green) |
| Signal threshold | Input1 OK (LED lights up green) |
| Input2 OK (LED lights up green) | |
| Signal output Relay 13/14 | |
| Connection labeling | 3.1, 3.2 |
| Switch contact (floating) | floating |
| Digital | 30 V DC |
| 100 mA | |
| Signal option | Redundancy OK |
| Signal output Relay 23/24 | |
| Connection labeling | 3.3, 3.4 |
| Switch contact (floating) | N/O contact |
| Digital | 30 V DC |
| 100 mA | |
| Signal option | Redundancy OK |

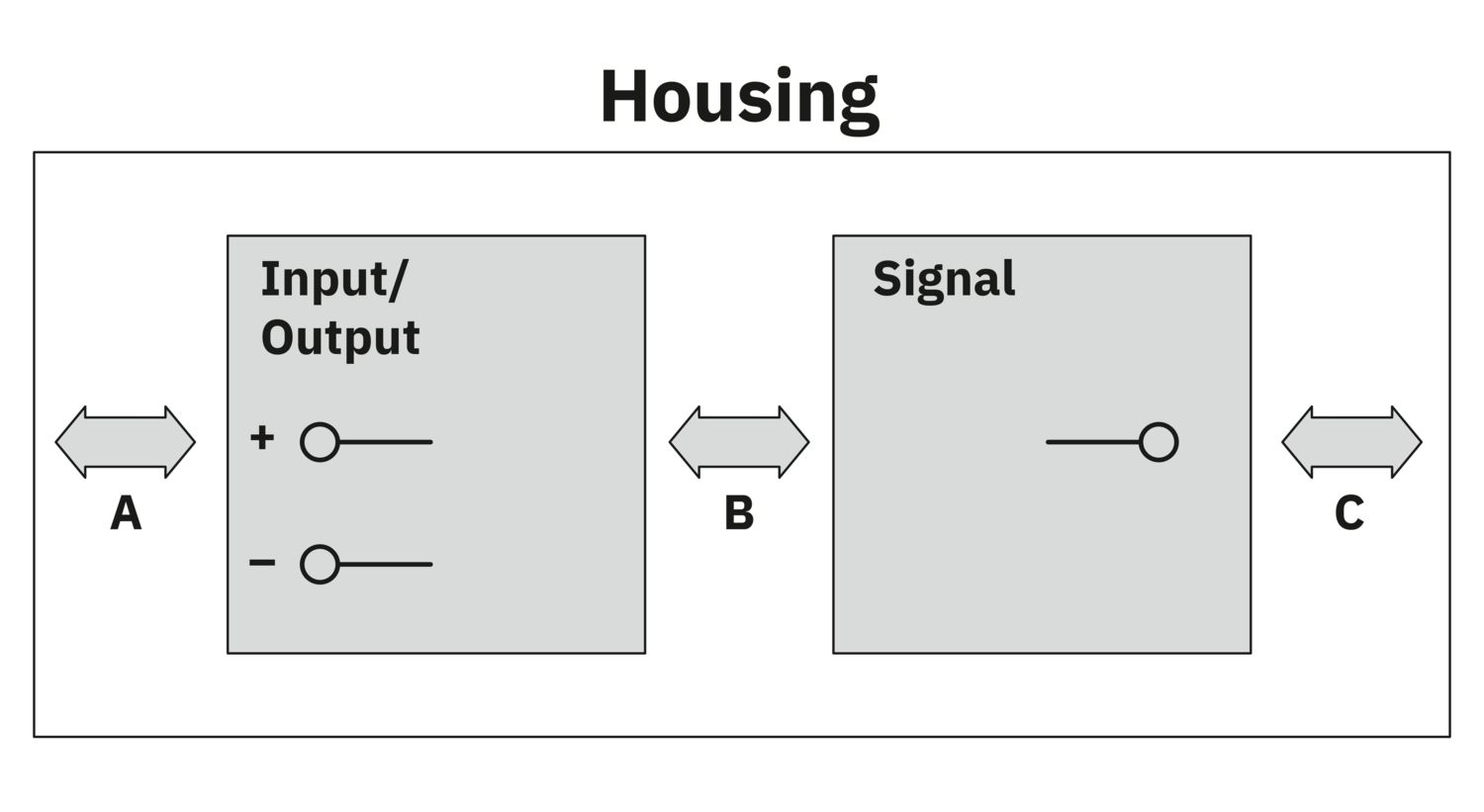

| Insulation voltage input/output | 550 V AC |
| Insulation voltage input, output / housing | 500 V AC |
| Product type | Redundancy module |
| Product family | ESSENTIAL DIODE |
| MTBF (IEC 61709, SN 29500) | > 2992278 h (25 °C) |
| > 1874605 h (40 °C) | |
| > 1594343 h (45 °C) | |
| LED | yes |
| Insulation characteristics | |
| Protection class | III |
| Degree of pollution | 2 |
| Item dimensions | |
| Width | 40 mm |
| Height | 124 mm |
| Depth | 126 mm |
| Installation dimensions | |
| Installation distance right/left | 10 mm / 10 mm |
| Installation distance top/bottom | 30 mm / 30 mm |
| Mounting type | DIN rail mounting |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
| Housing material | Metal |
| Housing material | Aluminum (AlMg3) / sheet steel, zinc-plated |
| Foot latch material | Sheet steel, zinc-plated |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 70 °C (Derating: > 45°C; 2.5%/K ) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Dry heat (IEC 60068-2-2) | 70 °C (16 h) |
| Humid heat cyclic (IEC 60068-2-30) | 55 °C (95 %, 2 x 23 h) |
| Cold (IEC 60068-2-1) | - 25 °C (16 h) |
| Shock (operation) | 18 ms, 30g, per spatial direction (IEC 60068-2-27) |
| Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (IEC 60068-2-6) |
| 15 Hz ... 150 Hz, 2.3g, 90 min. | |
| Electrical safety | |
| Standard designation | Electrical safety |
| Standards/specifications | IEC 61010-1 (SELV) |
| Protective extra-low voltage | |
| Standard designation | Protective extra-low voltage |
| Standards/specifications | IEC 61010-1 (SELV) |
| UL | |
| Identification | UL/C-UL Listed UL 61010-1 |
| UL | |
| Identification | UL/C-UL Listed UL 61010-2-201 |
| CB scheme | |
| Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Noise immunity | EN 61000-6-2:2019 |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | 1 kV (Test Level 2 - asymmetrical) |
| Output | 1 kV (Test Level 2 - asymmetrical) |
| Signal | 1 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| Surge voltage load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Surge voltage load (surge) | |
| Input | 0.5 kV (Test Level 2 - symmetrical) |
| 1 kV (Test Level 2 - asymmetrical) | |
| Output | 0.5 kV (Test Level 2 - symmetrical) |
| 1 kV (Test Level 2 - asymmetrical) | |
| Signal | 1 kV (Test Level 2 - asymmetrical) |
| Comments | Criterion A |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Input/output/signal | asymmetrical |
| Frequency range | 150 kHz ... 80 MHz |
| Comments | Criterion A |
| Voltage | 10 V (Test Level 3) |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Item number | 1584245 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | CM15 |
| Product key | CMB543 |
| GTIN | 4067923078031 |
| Weight per piece (including packing) | 421 g |
| Weight per piece (excluding packing) | 345 g |
| Customs tariff number | 85363030 |
| Country of origin | CN |
ECLASS
| ECLASS-13.0 | 27371010 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes |
| Exemption | 7(a), 7(c)-I |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-25
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | Lead (CAS: 7439-92-1) |
| EF3.0 Climate Change | |
| CO2e kg | 15.67 kg CO2e |
