AGK PT 4X6/M10 BU - Pick-off terminal block

1083237

Pick-off terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 5, connection method: Push-in connection, Rated cross section: 6 mm², 1 level, cross section: 0.5 mm² - 10 mm², Bolt connection, 1 level, mounting type: on base element, color: blue

Product details

Product type	Pick-off terminal
Product family	PT
Number of connections	5
Number of rows	1
Insulation characteristics
Overvoltage category	III

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.31 W

Number of connections per level	5
Nominal cross section	6 mm²
Rated cross section AWG	10
1 level
Stripping length	10 mm ... 12 mm
Internal cylindrical gage	A5
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.5 mm² ... 10 mm²
Cross section AWG	20 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.5 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	0.5 mm² ... 1.5 mm²
Nominal current	41 A
Maximum load current	57 A
Maximum total current	106 A (Bolt connection)
Nominal voltage	1000 V
Nominal cross section	6 mm²
1 level
Screw thread	M10
Note	Connection bolts
Tightening torque	10 ... 20 Nm
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section flexible	6 mm² ... 120 mm²
Conductor cross section, flexible [AWG]	10 ... 250 kcmil (converted acc. to IEC)
Nominal current	41 A
Cable lug connection
Cross section range AWG	(converted acc. to IEC)
Hole diameter	10.4 mm
Width	32 mm
Bolt diameter	10 mm
Screw thread	M10

Width	31 mm
Height	57.4 mm
Depth	32.3 mm
Hole diameter	10.4 mm

Color	blue (RAL 5015)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA

Mechanical data
Open side panel	No

Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1
	IEC 60947-7-1

Mounting type	on base element

Commercial data

Item number	1083237
Packing unit	10 pc
Minimum order quantity	10 pc
Product key	BE2ZWX
Catalog page	Page 119 (C-1-2019)
GTIN	4055626818917
Weight per piece (including packing)	42.44 g
Weight per piece (excluding packing)	42.44 g
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group F
Output	1000 V	50 A	20 - 8
Input	1000 V	100 A
Use group E
Output	1000 V	50 A	20 - 8
Input	1000 V	100 A

Environmental product compliance

Compatible products

Accessories

Your advantages

The fully insulated, optionally used pick-off terminal block enables voltage pick-off

Large-surface marking

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

AGK PT 4X6/M10 BU - Pick-off terminal block

1083237

Product details

ECLASS

ETIM

UNSPSC

DNV

EAC

cULus Recognized

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

AGK PT 4X6/M10 BU - Pick-off terminal block 1083237

Product details

ECLASS

ETIM

UNSPSC

Compatible products

HV M10/1 - High-current connector 3049408

ZB 7,5:UNBEDRUCKT - Zack marker strip 0803948

ZBF 7,5:UNBEDRUCKT - Zack Marker strip, flat 0809942

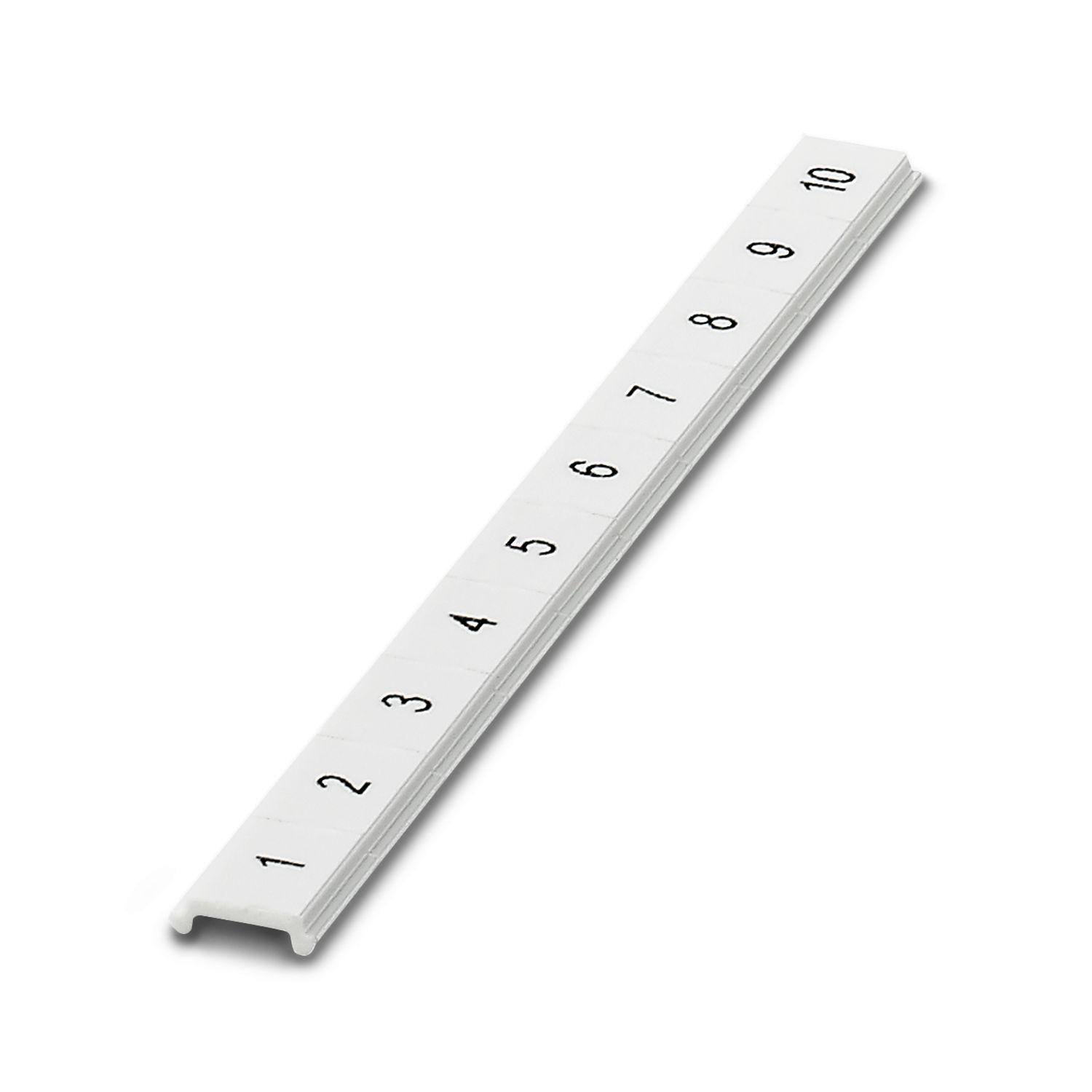

ZBF 7,5,LGS:FORTL.ZAHLEN - Zack Marker strip, flat 0809955
