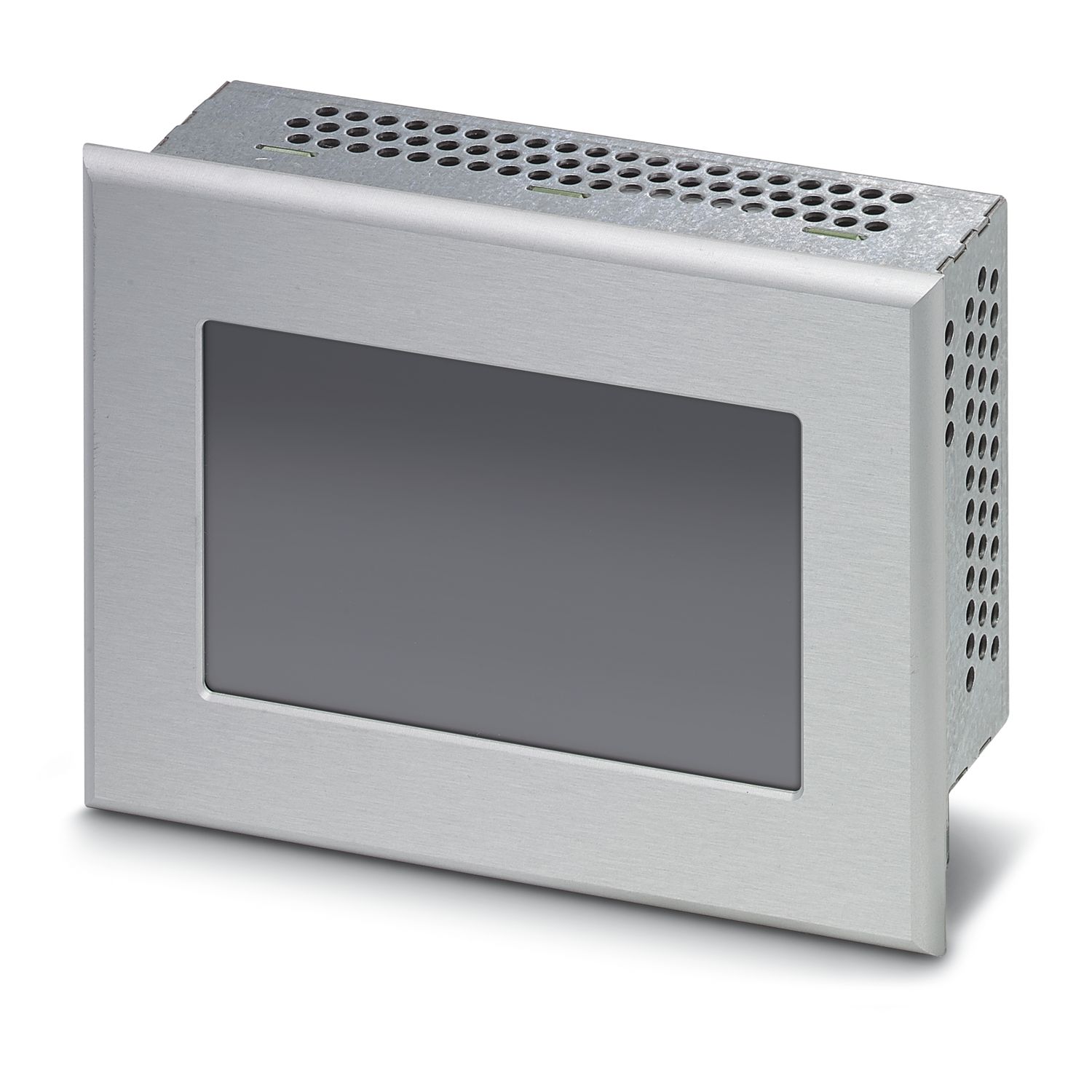

TP 3043W
-
Touch panel
2402629
Touch panel with 10.92 cm / 4.3"-TFT display (analog resistive (polyester)), 480 x 272 pixel(s) (WQVGA), 262144 colors, Arm® Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® Embedded Compact 7 and user software: Visu+ / AX OPC Server. (bus system: without)
Product details
Product type | Operator panel |
Computer data | |
Processor | Arm® Cortex®-A8, 800 MHz |
Operating system | Windows® Embedded Compact 7 |
RAM | 512 MB RAM |
Data storage system | Flash, 1 GB |
Slots | 1x SD |
Display | |
Display type | 10.92 cm / 4.3"-TFT |
Screen resolution | 480 x 272 Pixel(s) (WQVGA) |
Touch technology | analog resistive (polyester) |
Display lighting type | LED |
Brightness | 385 cd/m² typical (adjustable) |
MTBF | 40000 h |
Color spectrum | 262144 colors |
Reading angle left | 69.00 ° |
Reading angle right | 69.00 ° |
Reading angle top | 75.00 ° |
Reading angle bottom | 75.00 ° |
Interfaces | 2x USB Host 2.0 |
Network | 1 x Ethernet (10/100 Mbps), RJ45 |
Bus system | without |
User software | Visu+ |
AX OPC Server | |
System requirements | |
Runtime system | Visu+ Runtime |
Service life of battery | 5 years (typical) |
Supply | |
Supply voltage | 24 V DC |
Supply voltage range | 18 V DC ... 30 V DC |
Power supply unit | 24 V DC ±20 % |
Typical current consumption | 0.2 A |
Real-time clock | |
Realtime clock | Yes (battery-backed) |
Supply | |
Power consumption | typ. 4.8 W |
Mounting type | Front mounting |
Material front plate | Aluminum (natural anodized) |
Housing material | Steel sheet, zinc-plated |
Ambient conditions | |
Degree of protection | IP65 (front), IP20 (back) |
NEMA 4X | |
Ambient temperature (operation) | 0 °C ... 50 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
Permissible humidity (storage/transport) | 20 % ... 85 % (non-condensing) |
Shock | DIN EN 60068-2-27 |
Vibration (operation) | DIN EN 60068-2-6 |
External dimensions | |
Width / Height / Depth | 140 mm / 100 mm / 5 mm (Dimensions of the front plate) |
Installation dimensions | |
Width / Height / Installation depth | 132 mm / 92 mm / 42 mm (Installation cutout) |
Item number | 2402629 |
Packing unit | 1 pc |
Minimum order quantity | 1 pc |
Sales key | D03 |
Product key | DRCABC |
Catalog page | Page 472 (C-6-2019) |
GTIN | 4055626244969 |
Weight per piece (including packing) | 600 g |
Weight per piece (excluding packing) | 600 g |
Customs tariff number | 84714100 |
Country of origin | DE |
ETIM
ETIM 8.0 | EC001412 |
UNSPSC
UNSPSC 21.0 | 43211900 |
EU RoHS | |
Fulfills EU RoHS substance requirements | Yes |
Exemption | 6(a), 6(a)-I, 6(b), 6(b)-II, 6(c), 7(a), 7(c)-I |
China RoHS | |
Environment friendly use period (EFUP) |
EFUP-15
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
|
EU REACH SVHC | |
REACH candidate substance (CAS No.) | Diazene-1,2-dicarboxamide (C,C'-azodi(formamide)) (ADCA) (CAS: 123-77-3) |
Lead (CAS: 7439-92-1) |
