HC-EVO-B06-BWS-PLRBK
-
Housing
1407621

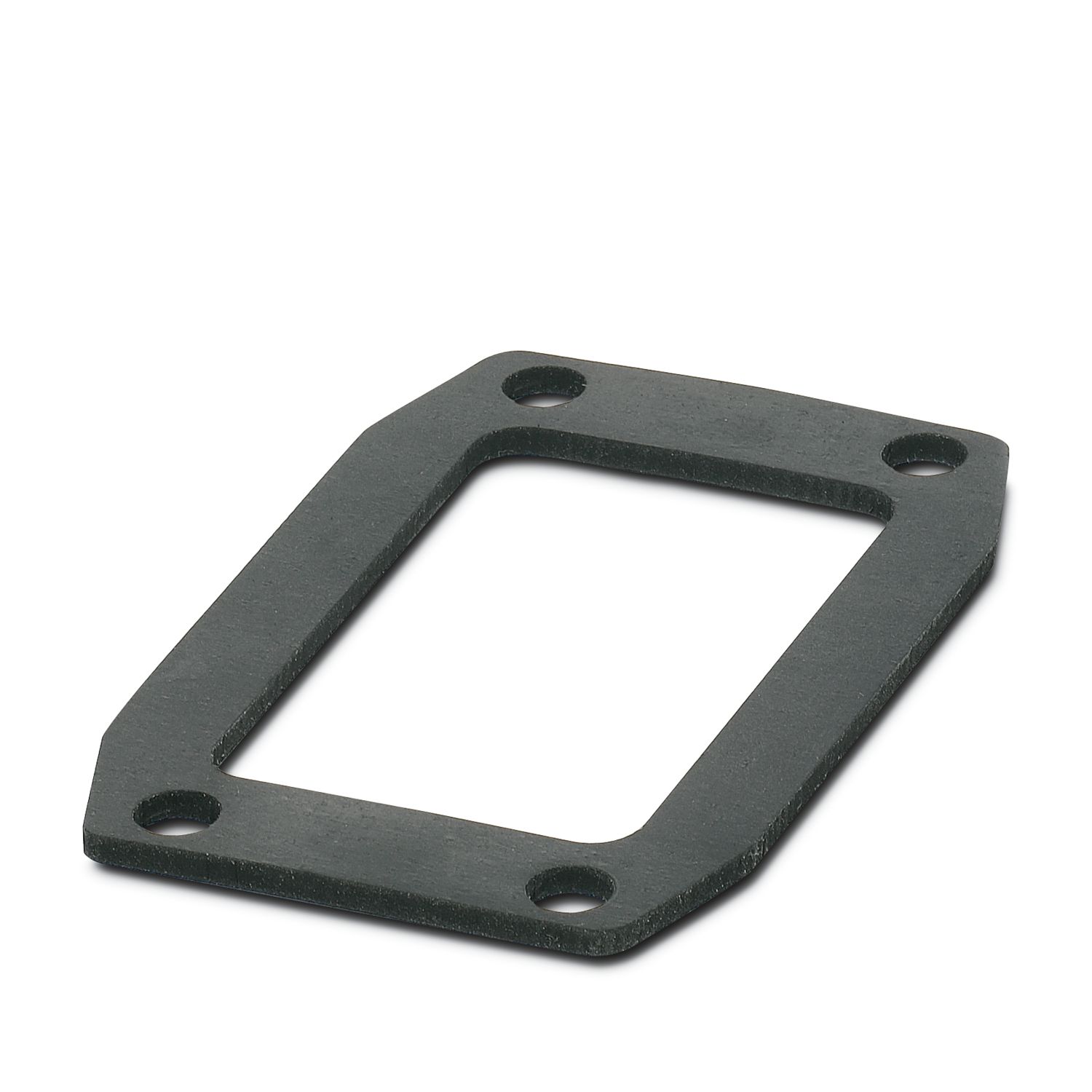

HEAVYCON EVO panel mounting base, plastic, B6, with single locking latch, height: 30.5 mm, with flat gasket
Product details
| General | For contact inserts HC-B6, BB10, DD24, M. Not for D series terminal adapters. |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Product family | HC-EVO-B |
| Application | Standard |
| Type | B6 |
| Pg screw connection | none |

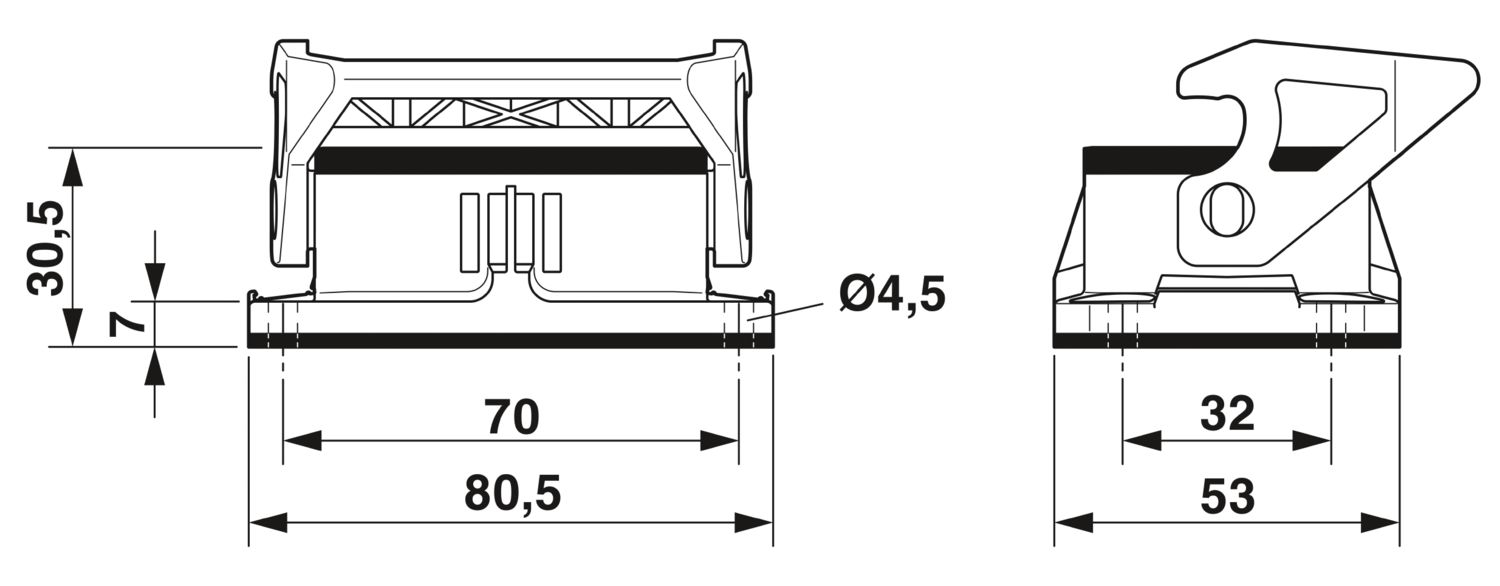

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 80.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 52 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| V0 (Interlock) | |
| Seal material | NBR |
| NBR | |
| Housing material | PA 6.6-FR |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |
| Assembly note | Not for D series terminal adapters |
| Not for HC-B 24-ADP-B..... adapter plates |
| Ambient conditions | |
| Degree of protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Lower costs than metal version
Low weight
Lower risk of condensation
